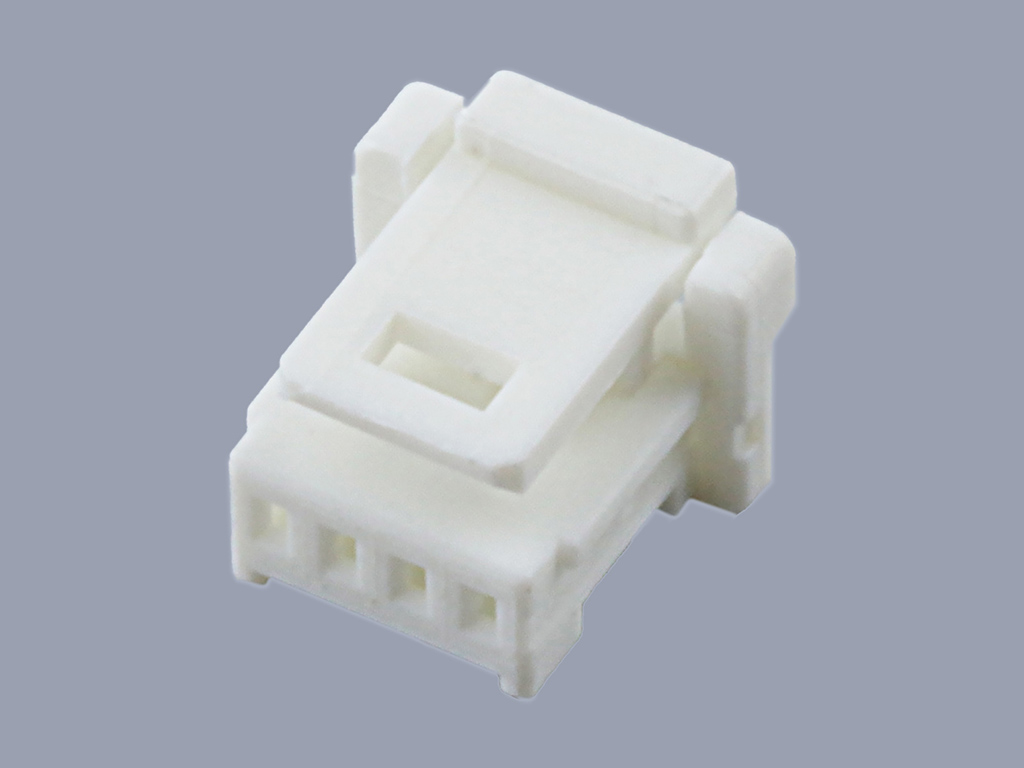

5019390400 Pico-Clasp by Molex
1.00mm Pitch, Pico-Clasp Low-Halogen Receptacle Crimp Housing, Single Row, Outer Positive Lock, 4 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 501939-0400 |
Where to Buy
Prices starting from US$0.0389
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.37
|
179,220
in stock
|
Buy Now |
|
element14
from US$0.24
|
31,796
in stock
|
Buy Now |
|
Farnell
from US$0.28
|
31,786
in stock
|
Buy Now |
|
Newark Electronics
from US$0.27
|
112
in stock
|
Buy Now |
|
TTI Europe
from US$0.21
|
0
in stock
|
Buy Now |
|
Sager
from US$0.18
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.18
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.16
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.0389
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-Clasp |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Color Resin | White |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 54.900/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Kabel 5019390400 1 St. Bag | Conrad |
| CONNECTOR, RCPT, 4POS, 1ROW, 1MM | element14 |
| Connector, Rcpt, 4Pos, 1Row, 1Mm Pitch Spacing1Mm No. Of Contacts4Contacts Genderreceptacle Product Rangepico-Clasp 501939 Series Contact Termination Typecrimp No. Of Rows1Rows Contact Plating- Contact Material- Rohs Compliant: Yes |Molex 501939-0400 | Newark Electronics |
| 1.0 W/B 1-ROW REC HSG POSITIVE | TTI Europe |
| Headers & Wire Housings PICOCLASP 1.00MM REC 1X04P | Sager |
| 1.0 W/B 1-ROW REC HSG POSITIV LOCK 4CKT | Heilind Americas |
| PICOCLASP 1.00MM REC 1X04P | TTI Asia |
