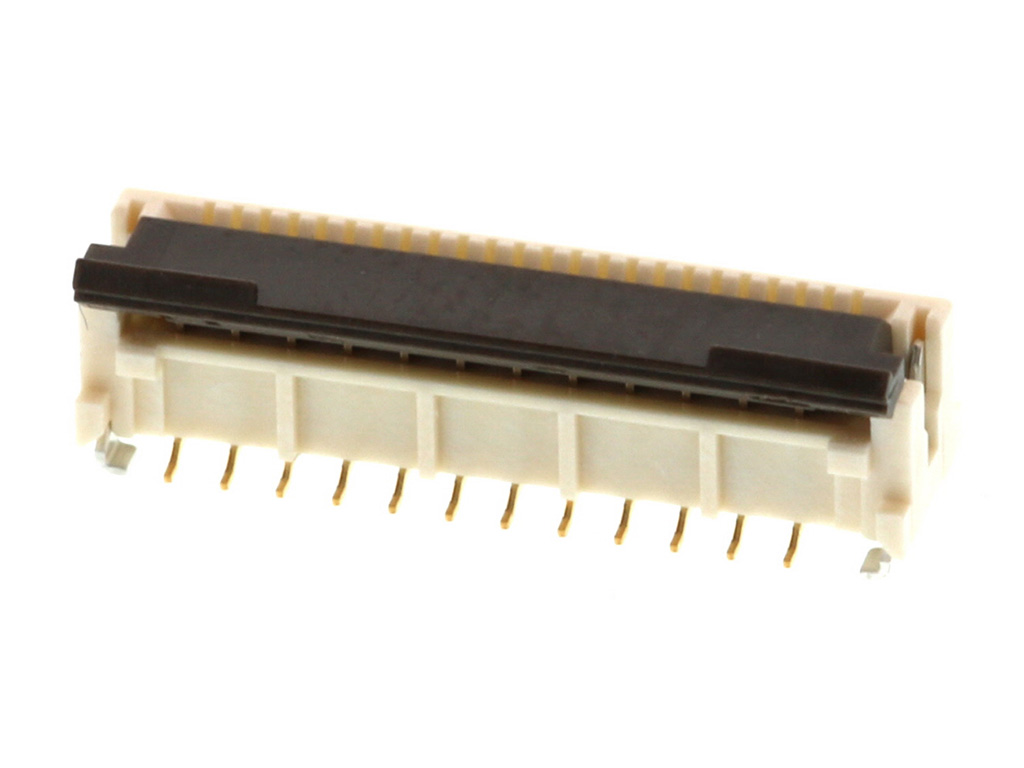

5019512410 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, V-Flip Series, Vertical, 4.05mm Height, 24 Circuits, Copper Alloy, Gold Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 501951-2410 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.4A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 24 |
| Color Resin | White |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 4.05mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 323.678/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.102µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -25° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, FFC/FPC, 24POS, 1ROW, 0.5MM | Farnell |
| Conn FPC Connector SKT 24 POS 1mm Solder ST SMD Embossed T/R | Avnet America |
