5019513010 Easy-On by Molex

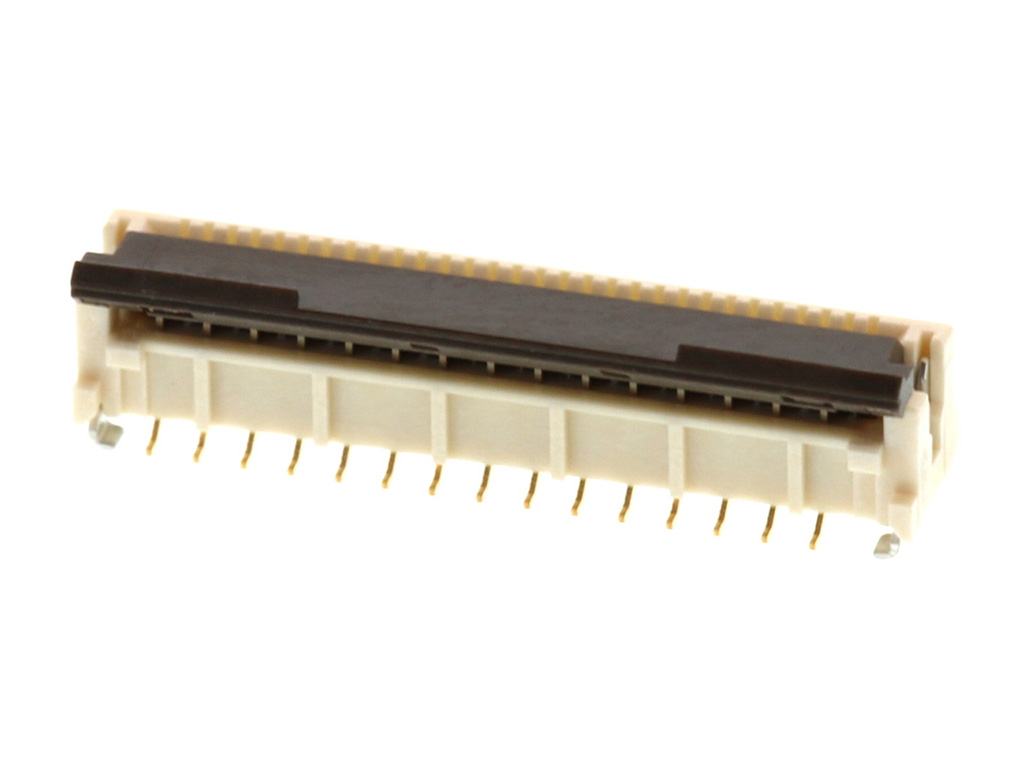

Easy-On FFC/FPC Connector, 0.50mm Pitch, V-Flip Series, Vertical, 4.05mm Height, 30 Circuits, Copper Alloy, Gold Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 501951-3010 |
Where to Buy
Prices starting from US$0.82
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.82
|
71,805
in stock
|
Buy Now |
|
TME
from US$1.15
|
70,000
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
65,865
in stock
|
Buy Now |
|
element14
from US$1.00
|
6,000
in stock
|
Buy Now |
|
CoreStaff
from US$0.82
|
1,557
in stock
|
Buy Now |
|
Offical Electronic
-
|
5
in stock
|
Buy Now |
|
Rutronik
from US$0.99
|
0
in stock
|
Buy Now |
|
RS
from US$1.44
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.04
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.4A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 30 |
| Color Resin | White |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 4.05mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 381.473/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 0.102µm |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -25° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 0.5 mm 5019513010 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 30POS, 1ROW, 0.5MM | Farnell |
| CONN, FFC/FPC, 30POS, 1ROW, 0.5MM | element14 |
| 30P FFC/FPC V-Flip 180° 0.50mm Au | Rutronik |
| Molex 501951-3010 FPC Connector | RS |
| Conn FPC Connector SKT 30 POS 1mm Solder ST SMD Embossed T/R | Avnet America |
| Conn, Ffc/Fpc, 30Pos, 1Row, 0.5Mm Rohs Compliant: Yes |Molex 501951-3010 | Newark Electronics |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5019513010?
Additional datasheets, footprints and schematics for 5019513010 are listed on our Part Details page. You can also find images and similar parts to 5019513010 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5019513010 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5019513010 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5019513010 fall under?
The 5019513010 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5019513010 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5019513010 you can contact the distributor directly for product support, shipping queries etc.
Is the 5019513010 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5019513010 have stock available?
Authorised distributors including Conrad, TME, Farnell, element14 and CoreStaff have stock available or on a lead time for 5019513010.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5019513010 often in real-time on the comparison pages.
What if I can't find stock of 5019513010?
You can fill out our help required form which you can use to request a quote for 5019513010 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
