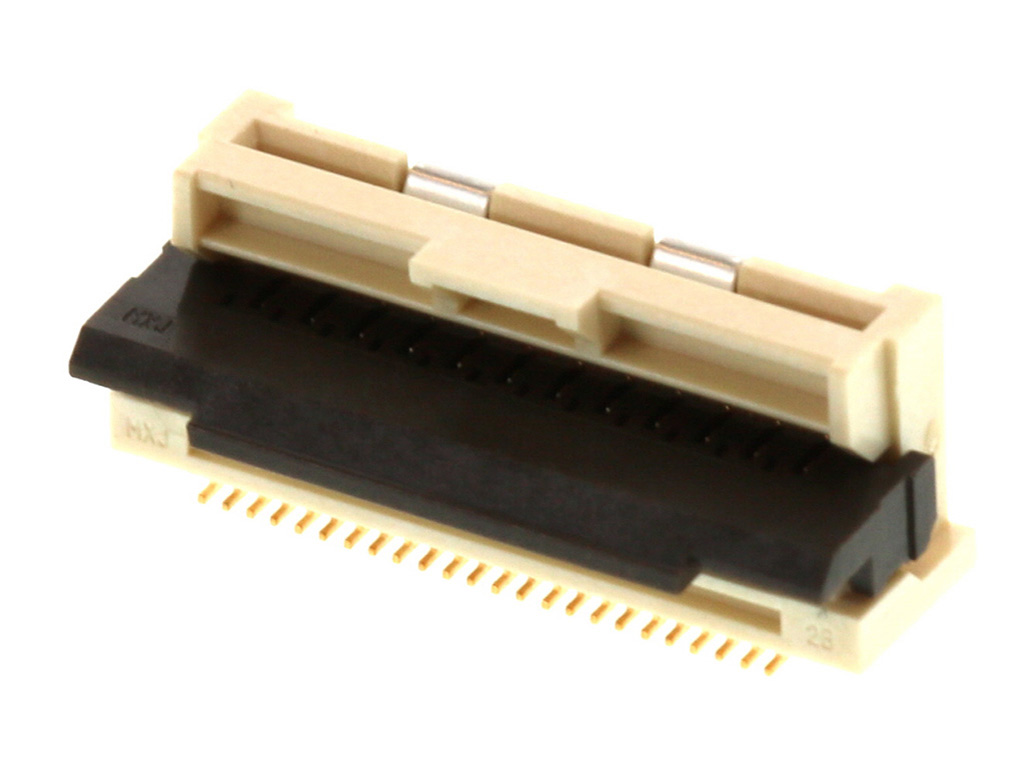

5022312400 Easy-On by Molex
0.50mm Pitch Easy-On FFC/FPC Connector, For LVDS, 6.05mm Height, Vertical, Surface Mount, ZIF, 24 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502231-2400 |
Where to Buy
Prices starting from US$0.73
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.40
|
1,425
in stock
|
Buy Now |
|
Farnell
from US$1.58
|
1,425
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,000
in stock
|
Buy Now |
|
RS
from US$1.24
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.17
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.66
|
0
in stock
|
Buy Now |
|
Sager
from US$1.05
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.73
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.05
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.4A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 24 |
| Color Resin | Brown, Natural |
| Contact Position | N/A |
| Durability Mating Cycles Max | 20 |
| Mated Height | 6.05mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 466.264/mg |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -25° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, FFC, 24POS, 1ROW, 0.5MM | element14 |
| Molex 502231-2400 FPC Connector | RS |
| Connector, Ffc, 24Pos, 1Row, 0.5Mm | Newark Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 24 Rastermaß: 0.5 mm 502231-2400 1 St. Tape on Mini reel | Conrad |
| FFC & FPC Connectors .5MM EASY-ON 24P VT SMT | Sager |
| 0.5 FFC FOR LVDS ST HSG ASSY 4CKT ETP | Heilind Americas |
| .5MM EASY-ON 24P VT SMT | TTI Asia |
