5023510800 DuraClik by Molex

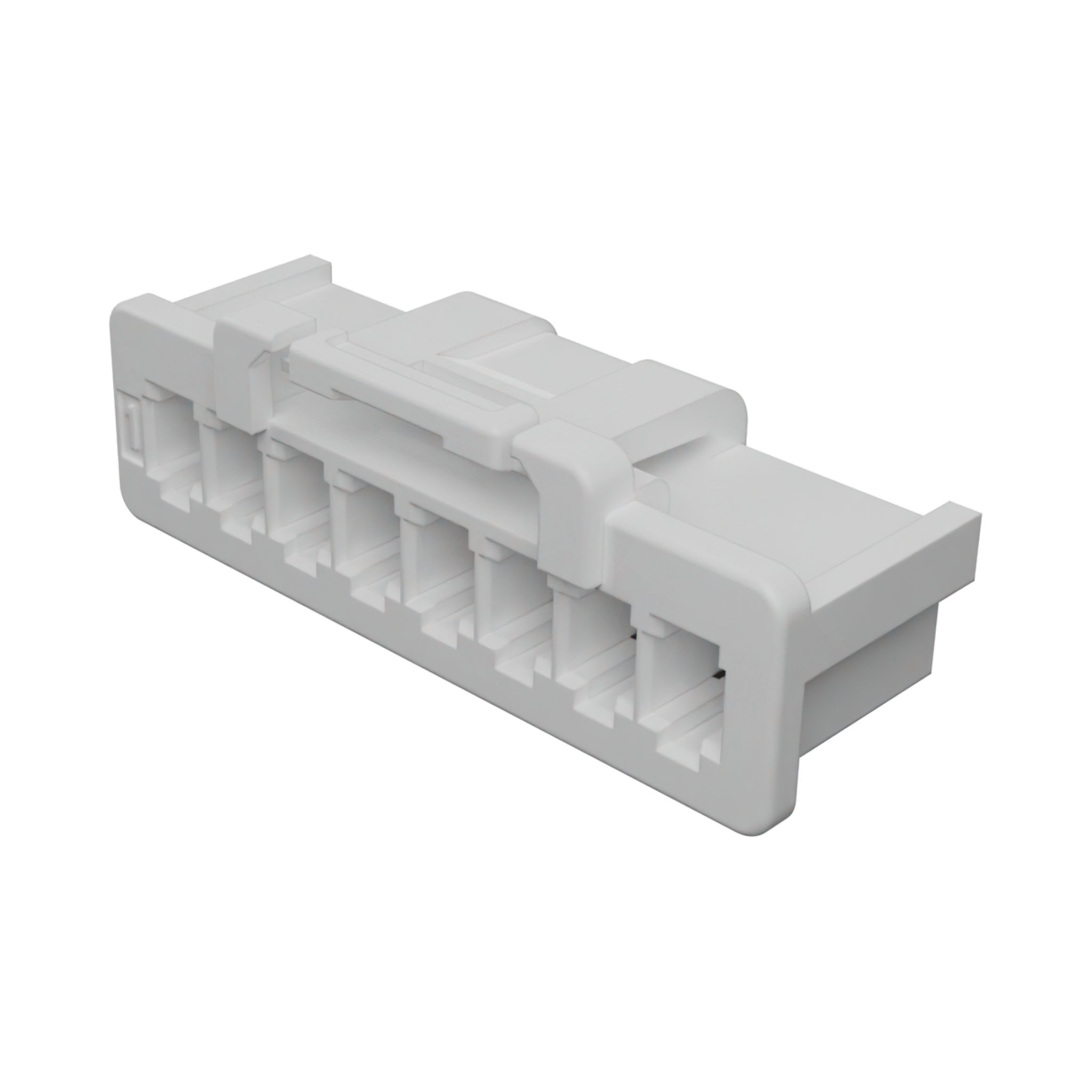

DuraClik Wire-to-Board Receptacle Housing, Single Row, 8 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502351-0800 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.54
|
186,604
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
167,945
in stock
|
Buy Now |
|
Heilind Americas
from US$0.25
|
6,558
in stock
|
Buy Now |
|
TME
from US$0.28
|
1,042
in stock
|
Buy Now |
|
Newark Electronics
from US$0.40
|
230
in stock
|
Buy Now |
|
element14
from US$0.33
|
230
in stock
|
Buy Now |
|
RS
from US$0.18
|
100
in stock
|
Buy Now |
|
Offical Electronic
-
|
11,450
in stock
|
Buy Now |
|
TTI Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
Sager
from US$0.28
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.16
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.09
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Polyester Alloy |
| Net Weight | 328.000/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 8 Rastermaß: 2 mm 5023510800 1 St. Bag | Conrad |
| CONNECTOR HOUSING, RCPT, 8POS, 2MM | Farnell |
| 2.0 W/B REC HSG 8CKT | Heilind Americas |
| Connector: wire-board | TME |
| Connector, Rcpt, 8Pos, 1Row, 2Mm | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 1ROW, 2MM | element14 |
| Molex 502351-0800 Connector Housing | RS |
| 2.0MM RECEPTACLE HOUSING 08CT | TTI Europe |
| Headers & Wire Housings 2.00MM REC HSG 1X08P | Sager |
| 2.00MM REC HSG 1X08P | TTI Asia |
| Conn Housing RCP 8 POS 2mm Crimp ST Cable Mount Bag | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5023510800?
Additional datasheets, footprints and schematics for 5023510800 are listed on our Part Details page. You can also find images and similar parts to 5023510800 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5023510800 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5023510800 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5023510800 fall under?
The 5023510800 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 5023510800 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5023510800 you can contact the distributor directly for product support, shipping queries etc.
Is the 5023510800 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5023510800 have stock available?
Authorised distributors including Conrad, Farnell, Heilind Americas, TME and Newark Electronics have stock available or on a lead time for 5023510800.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5023510800 often in real-time on the comparison pages.
What if I can't find stock of 5023510800?
You can fill out our help required form which you can use to request a quote for 5023510800 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
