5023520302 DuraClik by Molex

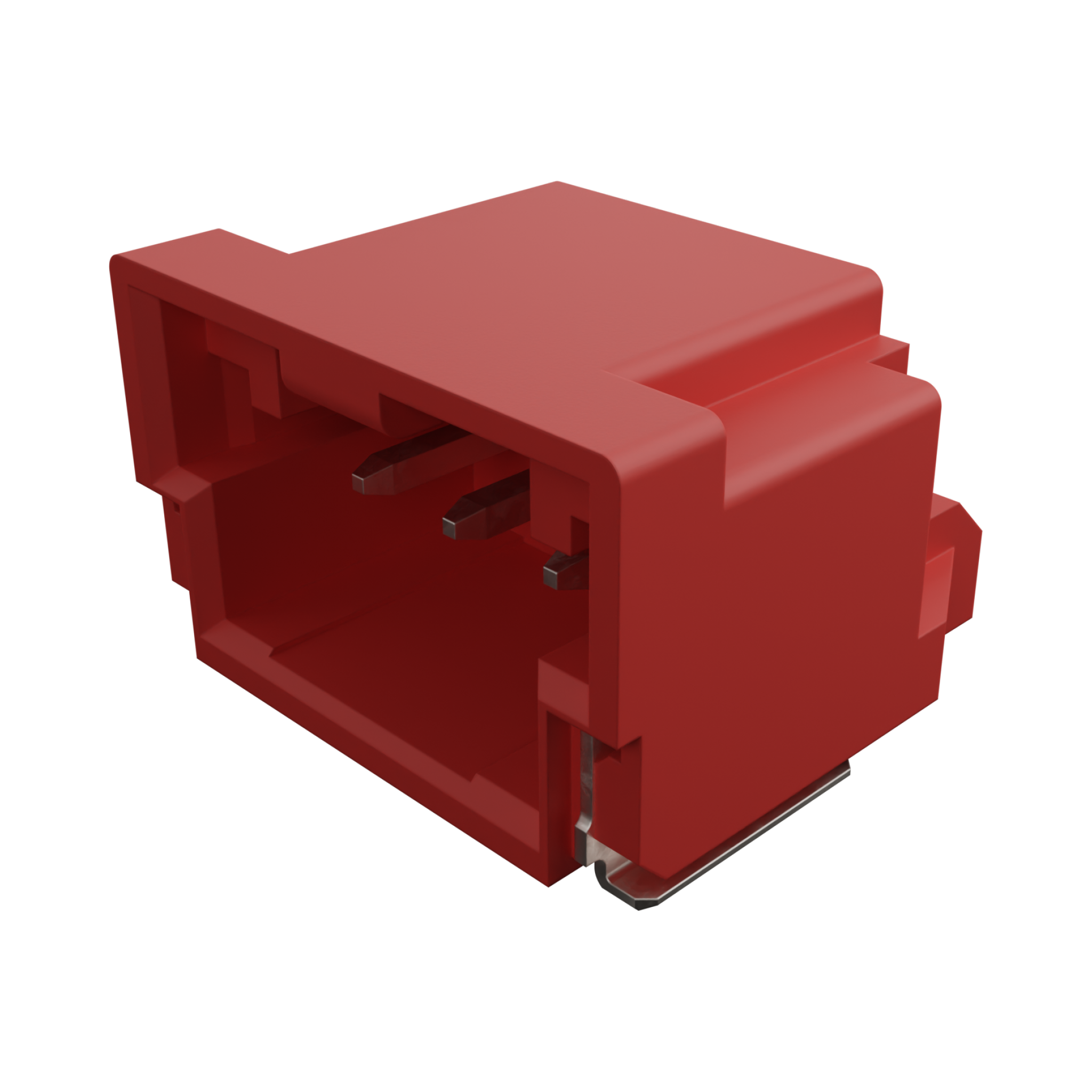

DuraClik Wire-to-Board Header, Single Row, Right-Angle, 3 Circuits, Tin (Sn) Plating, Red
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502352-0302 |
Where to Buy
Prices starting from US$0.41
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.43
|
51,100
in stock
|
Buy Now |
|
Conrad
from US$0.84
|
51,100
in stock
|
Buy Now |
|
Farnell
from US$0.82
|
46,200
in stock
|
Buy Now |
|
element14
from US$0.74
|
2,669
in stock
|
Buy Now |
|
Newark Electronics
from US$0.81
|
100
in stock
|
Buy Now |
|
Heilind Europe
from US$0.41
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Red |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 0.495/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C, -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Stiftgehäuse-Platine 5023520302 1 St. | Conrad |
| PIN HEADERS | Farnell |
| WTB CONN, HEADER, R/A, 3POS, 1ROW, 2MM | element14 |
| Wtb Conn, Header, R/A, 3Pos, 1Row, 2Mm Rohs Compliant: Yes |Molex 502352-0302 | Newark Electronics |
| 2.0 W/B CONN SN 3CKT EMBS TP P 2.0 W/B CONN | Heilind Europe |
| 2.0 WB CONN SN 3CKT EMBS TP PK 2.0 WB CONN | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5023520302?
Additional datasheets, footprints and schematics for 5023520302 are listed on our Part Details page. You can also find images and similar parts to 5023520302 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5023520302 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5023520302 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5023520302 fall under?
The 5023520302 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5023520302 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5023520302 you can contact the distributor directly for product support, shipping queries etc.
Is the 5023520302 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5023520302 have stock available?
Authorised distributors including TME, Conrad, Farnell, element14 and Newark Electronics have stock available or on a lead time for 5023520302.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5023520302 often in real-time on the comparison pages.
What if I can't find stock of 5023520302?
You can fill out our help required form which you can use to request a quote for 5023520302 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
