5023520402 DuraClik by Molex

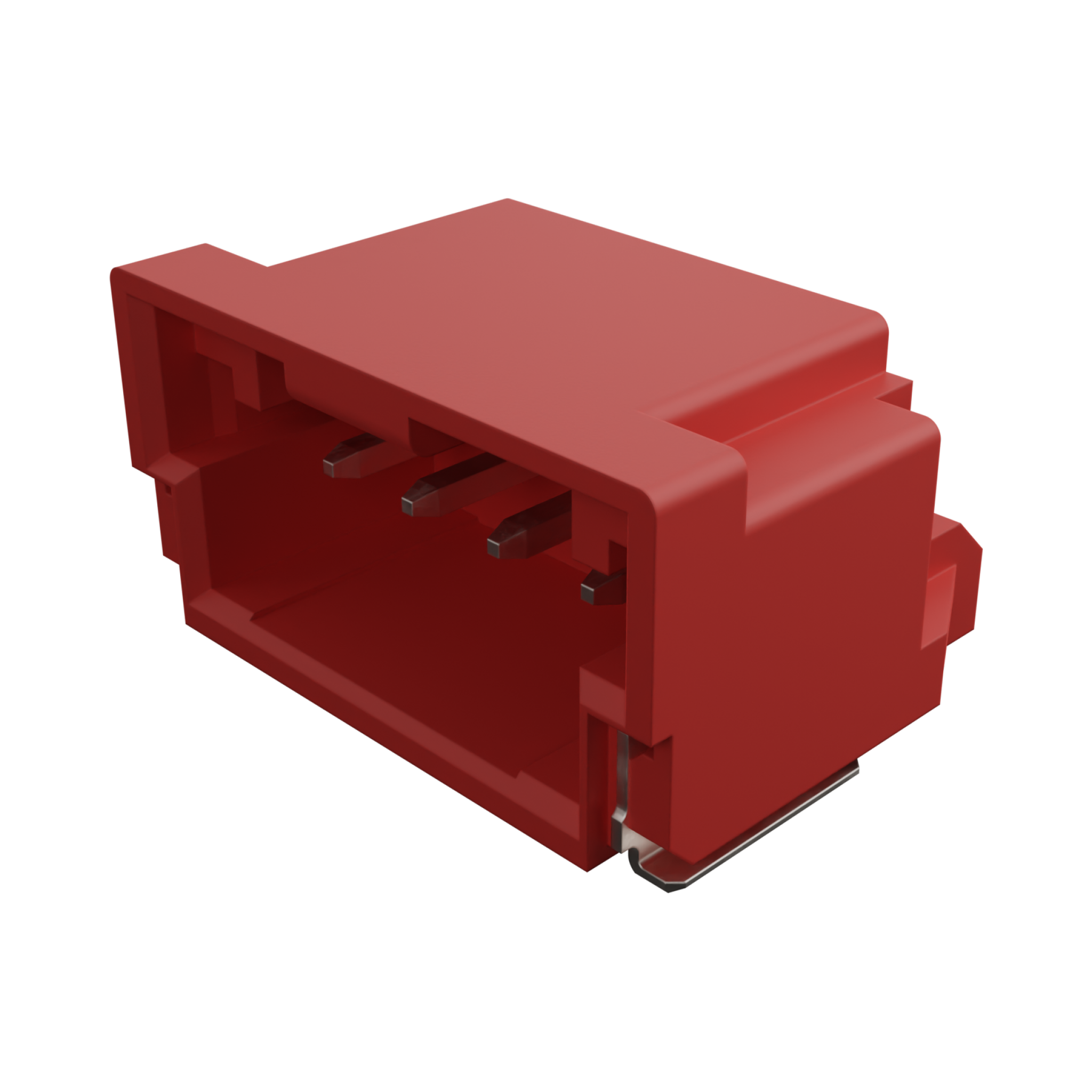

DuraClik Wire-to-Board Header, Single Row, Right-Angle, 4 Circuits, Tin (Sn) Plating, Red
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502352-0402 |
Where to Buy
Prices starting from US$0.39
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Red |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 0.595/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C, -40° to +125°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| CONN, R/A HEADER, 4POS, 1ROW, 2MM | Farnell |
| 2.0 W/B Conn Sn 4Ckt Embs Tp Pkg Red |Molex 502352-0402 | Newark Electronics |
| Headers & Wire Housings | Sager |
| 2.0 W/B CONN SN 4CKT EMBS TP P 2.0 W/B CONN | Heilind Americas |
