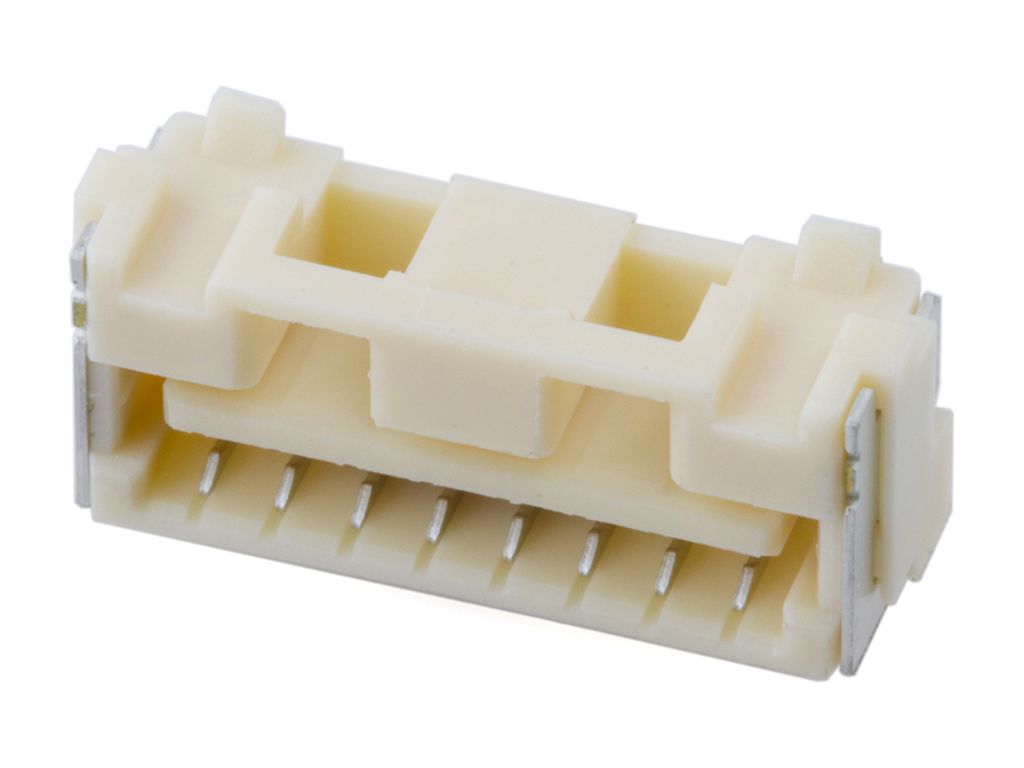

5023820870 CLIK-Mate by Molex
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, Tin Plating, 8 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502382-0870 |
Where to Buy
Prices starting from US$0.21
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.52
|
12,498
in stock
|
Buy Now |
|
Conrad
from US$0.81
|
12,411
in stock
|
Buy Now |
|
Newark Electronics
from US$0.75
|
1,920
in stock
|
Buy Now |
|
element14
from US$0.50
|
1,920
in stock
|
Buy Now |
|
RS
from US$0.41
|
600
in stock
|
Buy Now |
|
TME
from US$0.29
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.38
|
0
in stock
|
Buy Now |
|
Sager
from US$0.41
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.21
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.38
|
0
in stock
|
Buy Now |
|
EME
from US$0.29
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 7.80mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 380.801/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PCB RECEPTACLES | Farnell |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 8 Rastermaß: 1.25 mm 5023820870 1 St. Tape on Full reel | Conrad |
| Wire-To-Board Connector, Vertical, Clik-Mate 502382 Series, Crimp, Receptacle, 8, 1.25 Mm Rohs Compliant: Yes |Molex 502382-0870 | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 1ROW, 1.25MM | element14 |
| Molex 502382-0870 PCB Socket | RS |
| Connector: wire-board | TME |
| 1.25MM PITCH CLIK-MATE | TTI Europe |
| Headers & Wire Housings 1.25MM CLIK-MATE REC 08P VT | Sager |
| 1.25 W/B SGL S/T REC ASSY 8CK EMBSTPPKG | Heilind Americas |
| 1.25 W/B SGL S/T REC ASSY 8CKT | TTI Asia |
| Conn Wire to Board Receptacle 8 POS 1.25mm Solder ST SMD | Avnet Asia |
