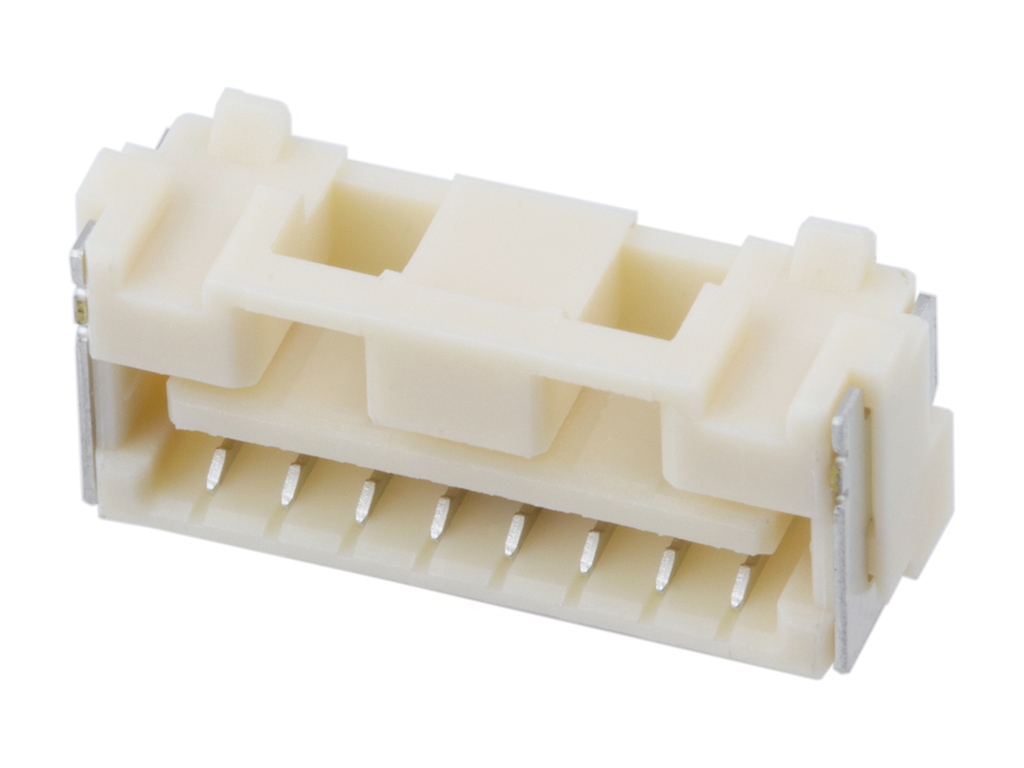

5023860870 CLIK-Mate by Molex
1.25mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, Tin (Sn) Plating, 8 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502386-0870 |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.42
|
7,200
in stock
|
Buy Now |
|
Newark Electronics
from US$0.72
|
1,370
in stock
|
Buy Now |
|
element14
from US$0.53
|
1,370
in stock
|
Buy Now |
|
Farnell
from US$0.59
|
1,370
in stock
|
Buy Now |
|
Heilind Americas
from US$0.59
|
556
in stock
|
Buy Now |
|
RS
from US$0.56
|
0
in stock
|
Buy Now |
|
TME
from US$0.38
|
0
in stock
|
Buy Now |
|
Compona
from US$0.31
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.61
|
0
in stock
|
Buy Now |
|
Sager
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.40
|
0
in stock
|
Buy Now |
|
EME
from US$0.36
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 5.55mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 380.801/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.25 W/B SGL R/A REC ASSY 8CKT | TTI Europe |
| Wire-To-Board Connector, Right Angle, Clik-Mate 502386 Series, Crimp, Receptacle, 8, 1.25 Mm Rohs Compliant: Yes |Molex 502386-0870 | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 1ROW, 1.25MM | element14 |
| CUT TAPE 1.25 W/B SGL R/A REC ASSY | Heilind Americas |
| Molex 502386-0870 PCB Socket | RS |
| Connector: wire-board | TME |
| MOLEX 502386-0870 Socket Square 8p SMT | Compona |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 8 Rastermaß: 1.25 mm 5023860870 1 St. Tape on Full reel | Conrad |
| Headers & Wire Housings 1.25MM CLIK-MATE REC 08P RA | Sager |
| 1.25 W/B SGL R/A REC ASSY 8CK EMBSTPPKG | Heilind Europe |
| 1.25MM CLIK-MATE REC 08P RA | TTI Asia |
| PCB Receptacle, Signal, Wire-to-Board, 1.25 mm, 1 Rows, 8 Contacts, Surface Mount Right Angle | Avnet Asia |
