5024430270 CLIK-Mate by Molex

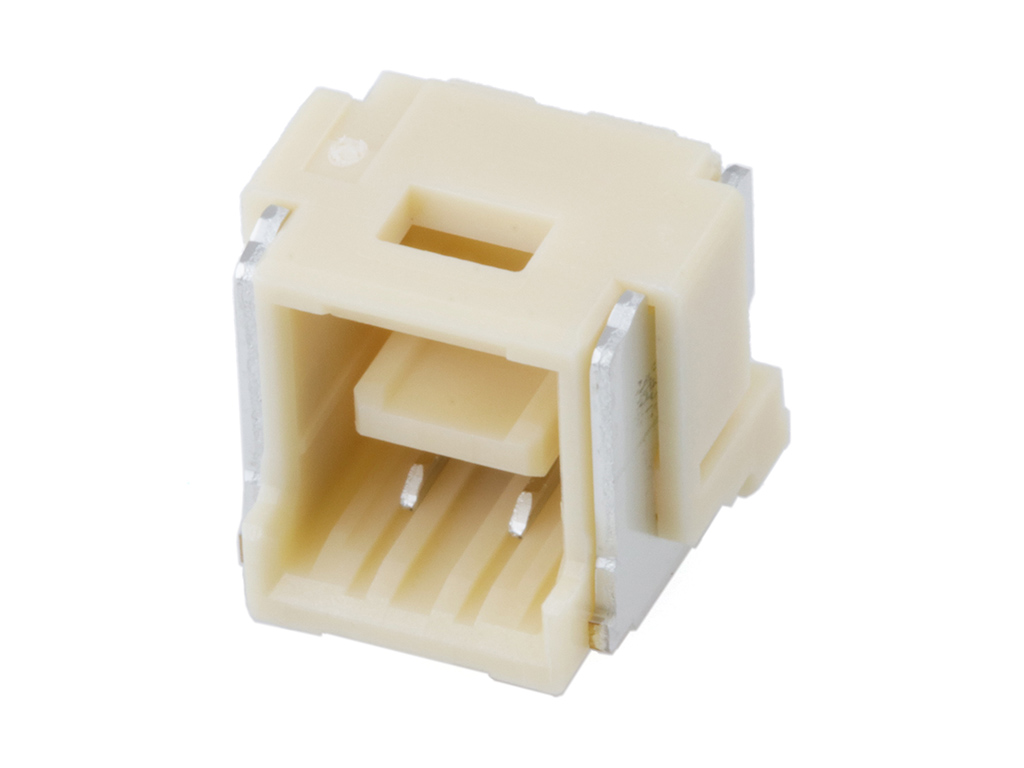

2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, 2 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502443-0270 |
Where to Buy
Prices starting from US$0.22
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.54
|
48,100
in stock
|
Buy Now |
|
Newark Electronics
from US$0.36
|
1,827
in stock
|
Buy Now |
|
element14
from US$0.46
|
1,827
in stock
|
Buy Now |
|
Farnell
from US$0.44
|
1,827
in stock
|
Buy Now |
|
TME
from US$0.35
|
0
in stock
|
Buy Now |
|
Sager
from US$0.22
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.23
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.37
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 10.90mm |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 522.000/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 2 mm 5024430270 1 St. Tape on Full reel | Conrad |
| Connector, Rcpt, 2Pos, 1Row, 2Mm | Newark Electronics |
| CONNECTOR, RCPT, 2POS, 1ROW, 2MM | element14 |
| Connector: wire-board | TME |
| Headers & Wire Housings 2.00MM CLIK-MATE REC 02P VT | Sager |
| 2.0 W/B SGL S/TRECASSY 2CKTEMBSTPPKG | Heilind Americas |
| 2.00MM CLIK-MATE REC 02P VT | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5024430270?
Additional datasheets, footprints and schematics for 5024430270 are listed on our Part Details page. You can also find images and similar parts to 5024430270 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5024430270 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5024430270 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5024430270 fall under?
The 5024430270 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5024430270 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5024430270 you can contact the distributor directly for product support, shipping queries etc.
Is the 5024430270 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5024430270 have stock available?
Authorised distributors including Conrad, Newark Electronics, element14, Farnell and TME have stock available or on a lead time for 5024430270.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5024430270 often in real-time on the comparison pages.
What if I can't find stock of 5024430270?
You can fill out our help required form which you can use to request a quote for 5024430270 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
