5024431470 CLIK-Mate by Molex

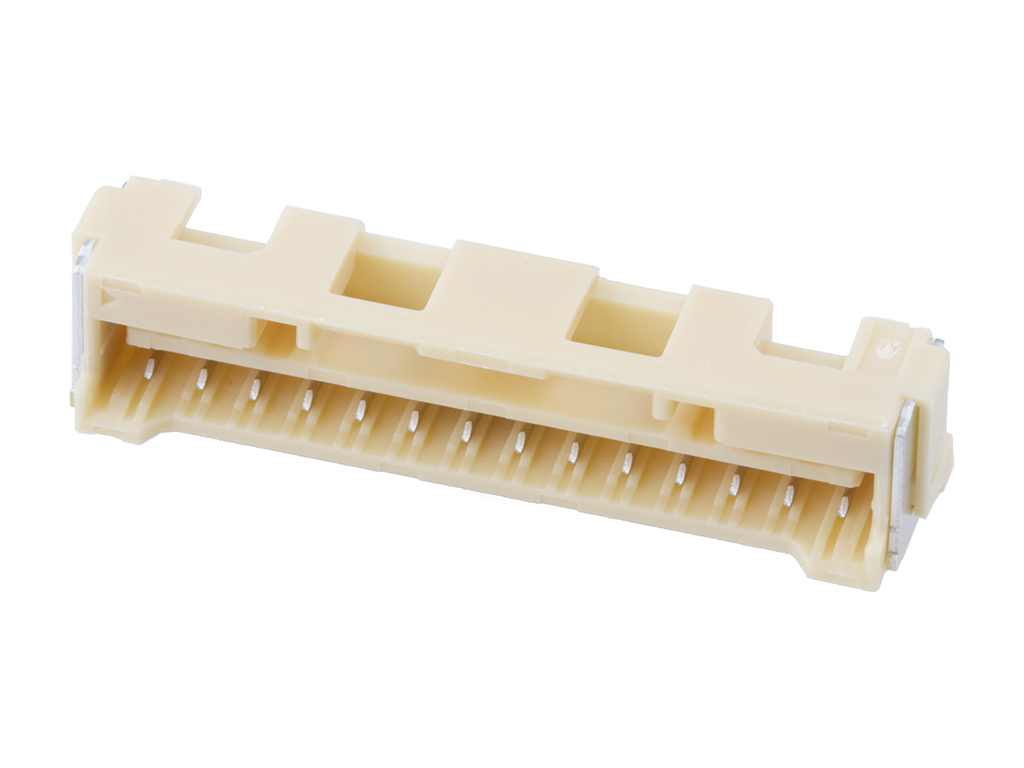

2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Vertical, 14 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502443-1470 |
Where to Buy
Prices starting from US$0.52
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.83
|
3,900
in stock
|
Buy Now |
|
element14
from US$0.88
|
3,900
in stock
|
Buy Now |
|
Farnell
from US$0.69
|
3,900
in stock
|
Buy Now |
|
Sager
from US$0.53
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.55
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 10.90mm |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 1361.000/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn, Rcpt, 14Pos, 1Row, 2Mm Rohs Compliant: Yes |Molex 502443-1470 | Newark Electronics |
| CONN, RCPT, 14POS, 1ROW, 2MM | element14 |
| Headers & Wire Housings 2.0 W/B SglS/TRecAssy14CktEmbsTpPkg | Sager |
| 2.0 W/B SGLS/TRECASSY14CKTEMB TPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5024431470?
Additional datasheets, footprints and schematics for 5024431470 are listed on our Part Details page. You can also find images and similar parts to 5024431470 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5024431470 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5024431470 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5024431470 fall under?
The 5024431470 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5024431470 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5024431470 you can contact the distributor directly for product support, shipping queries etc.
Is the 5024431470 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5024431470 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Sager and Heilind Americas have stock available or on a lead time for 5024431470.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5024431470 often in real-time on the comparison pages.
What if I can't find stock of 5024431470?
You can fill out our help required form which you can use to request a quote for 5024431470 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
