5024940470 CLIK-Mate by Molex

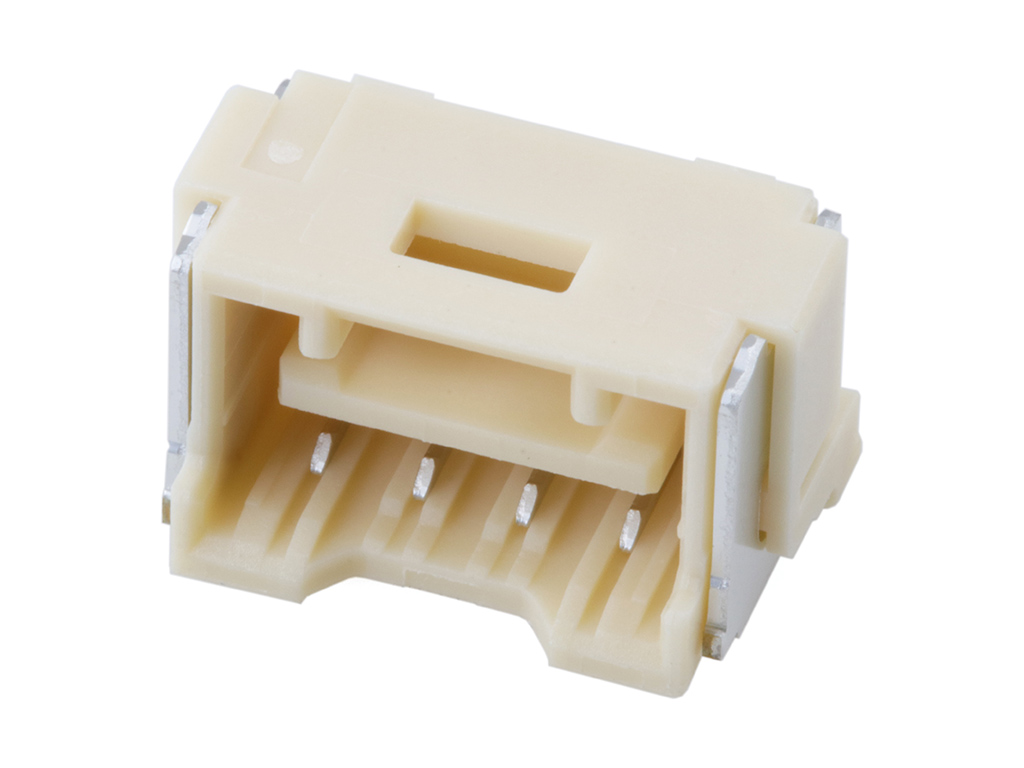

2.00mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Right-Angle, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502494-0470 |
Where to Buy
Prices starting from US$0.24
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.44
|
28,500
in stock
|
Buy Now |
|
Conrad
from US$0.51
|
26,600
in stock
|
Buy Now |
|
Farnell
from US$0.41
|
24,700
in stock
|
Buy Now |
|
TTI Europe
from US$0.28
|
19,000
in stock
|
Buy Now |
|
element14
from US$0.38
|
5,387
in stock
|
Buy Now |
|
RS
from US$0.43
|
3,960
in stock
|
Buy Now |
|
Heilind Americas
from US$0.46
|
495
in stock
|
Buy Now |
|
TME
from US$0.41
|
88
in stock
|
Buy Now |
|
Compona
from US$0.36
|
0
in stock
|
Buy Now |
|
Sager
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.24
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Signal, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Mated Height | 6.90mm |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 652.000/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Plating Min Mating | 2.032µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.0 W/B Sgl R/Arecassy4Cktembstppkg |Molex 502494-0470 | Newark Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 4 Rastermaß: 2 mm 5024940470 1 St. Tape on Full reel | Conrad |
| CONN, R/A RCPT, 4POS, 2MM, SMT | Farnell |
| 2.0MM W-T-B RECEPTACLE R/A 4CT | TTI Europe |
| CONNECTOR, RCPT, 4POS, 1ROW, 2MM | element14 |
| Molex 502494-0470 PCB Socket | RS |
| CUT TAPE - 2.0 W/B SGL R/ ARECASSY4CKTEMB TPPKG | Heilind Americas |
| Connector: wire-board | TME |
| MOLEX 502494-0470 CLIK-Mate W-to-B PCB Receptacle 4p 2.00mm Pitch | Compona |
| Headers & Wire Housings 2.00MM CLIK-MATE HDR 04P RA | Sager |
| 2.0 W/B SGL R/ARECASSY4CKTEMB TPPKG | Heilind Europe |
| 2.00MM CLIK-MATE HDR 04P RA | TTI Asia |
| PCB Receptacle, Signal, Wire-to-Board, 2 mm, 1 Rows, 4 Contacts, Surface Mount Right Angle | Avnet Asia |
