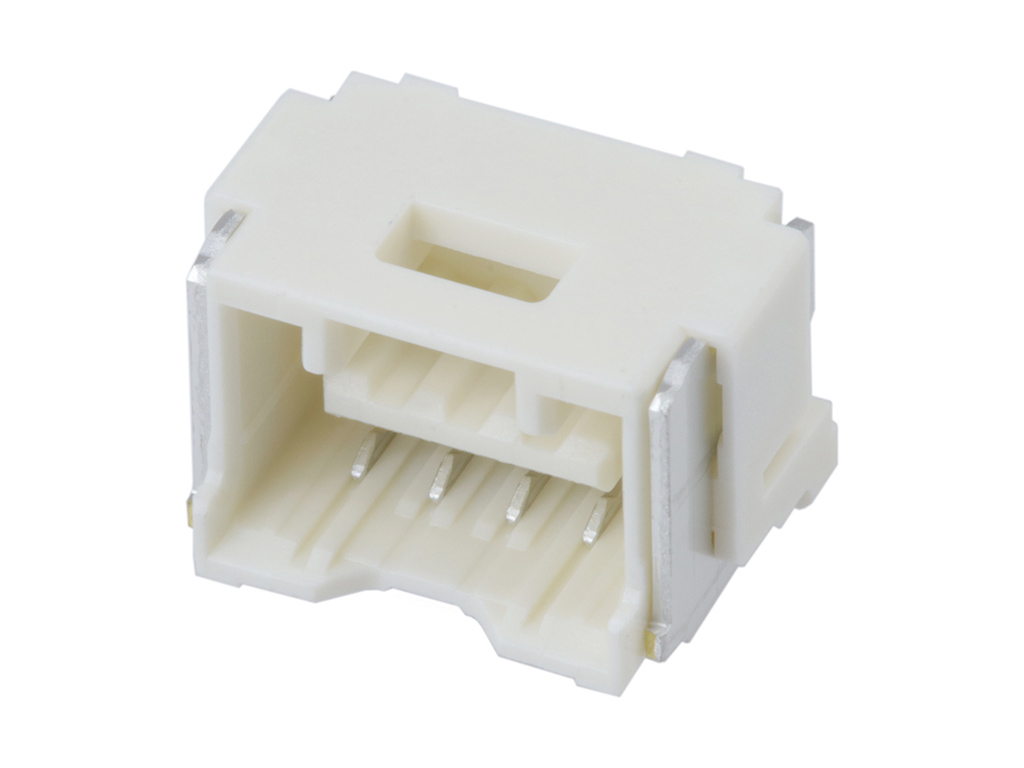

5025840470 CLIK-Mate by Molex
1.50mm Pitch, CLIK-Mate PCB Receptacle, Single Row, Surface Mount, Vertical, Tin Plating, Positive Lock, 4 Circuits, Beige
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502584-0470 |
Where to Buy
Prices starting from US$0.35
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.82
|
278,100
in stock
|
Buy Now |
|
Farnell
from US$0.56
|
252,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.66
|
220,500
in stock
|
Buy Now |
|
element14
from US$0.51
|
3,739
in stock
|
Buy Now |
|
Rutronik
from US$0.52
|
0
in stock
|
Buy Now |
|
RS
from US$0.81
|
0
in stock
|
Buy Now |
|
Compona
from US$0.46
|
0
in stock
|
Buy Now |
|
Sager
from US$0.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.39
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.35
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Beige |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 9.70mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 503.801/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.50mm |
| Pitch Termination Interface | 1.50mm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Robotic Placement | Vacuum Pick-Up Area |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 4 Rastermaß: 1.50 mm 5025840470 1 St. Tape on Full reel | Conrad |
| PCB RECEPTACLES | Farnell |
| Connector, Rcpt, 4Pos, 1Row, 1.5Mm | Newark Electronics |
| CONNECTOR, RCPT, 4POS, 1ROW, 1.5MM | element14 |
| 04P RECEPTACLE CLICK MATE | Rutronik |
| Molex 502584-0470 Header | RS |
| MOLEX 5025840470 Socket Square 4p SMT | Compona |
| Headers & Wire Housings 1.50MM CLIK-MATE REC 04P VT | Sager |
| 1.5 W/B SGL ST REC ASSY4CKTEM STPPKG | Heilind Americas |
| 1.50MM CLIK-MATE REC 04P VT | TTI Asia |
| Conn Wire to Board Receptacle 4 POS 1.5mm Solder ST Surface Mount | Avnet Asia |
