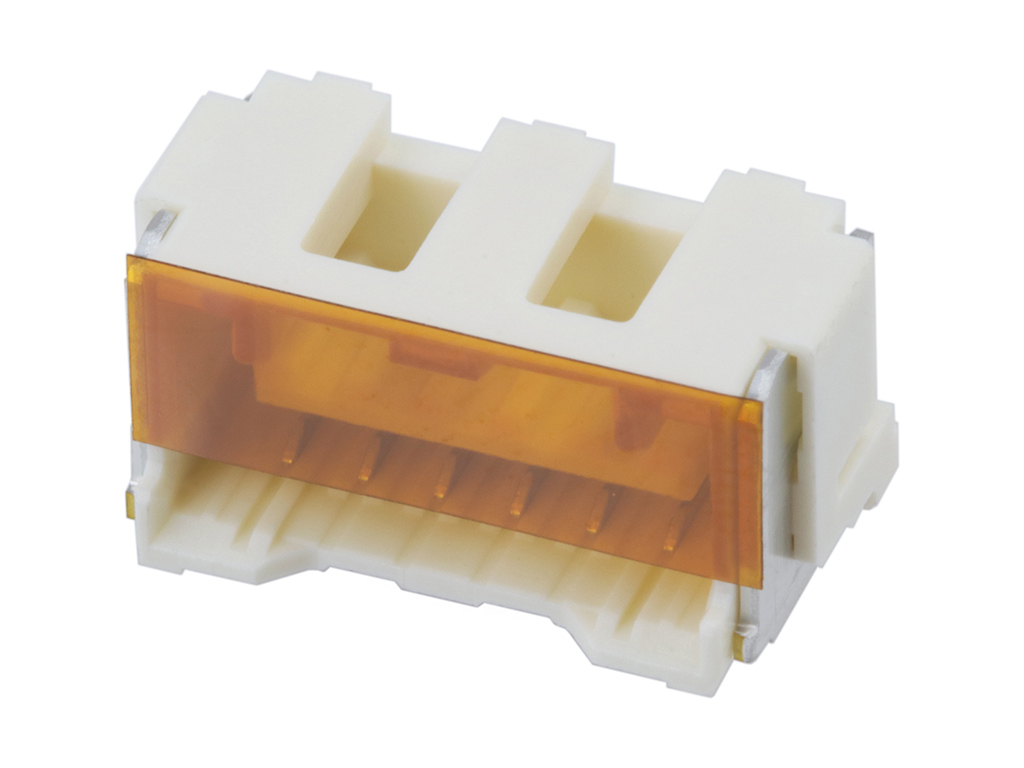

5025840660 CLIK-Mate by Molex
1.50mm Pitch, CLIK-Mate PCB Receptacle, Single Row, Surface Mount, Vertical, Tin Plating, Positive Lock, with Pick-and-Place Polyimide Tape, 6 Circuits, Beige
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502584-0660 |
Where to Buy
Prices starting from US$0.47
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.68
|
39,600
in stock
|
Buy Now |
|
Conrad
from US$1.29
|
39,600
in stock
|
Buy Now |
|
Farnell
from US$0.69
|
35,640
in stock
|
Buy Now |
|
TTI Europe
from US$0.52
|
12,600
in stock
|
Buy Now |
|
TME
from US$0.69
|
355
in stock
|
Buy Now |
|
RS
from US$1.35
|
55
in stock
|
Buy Now |
|
element14
from US$1.01
|
0
in stock
|
Buy Now |
|
Sager
from US$0.57
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.58
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.47
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.53
|
0
in stock
|
Buy Now |
|
EME
from US$0.64
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Beige |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 9.70mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 574.601/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.50mm |
| Pitch Termination Interface | 1.50mm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Robotic Placement | Vacuum Pick-Up Tape |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
