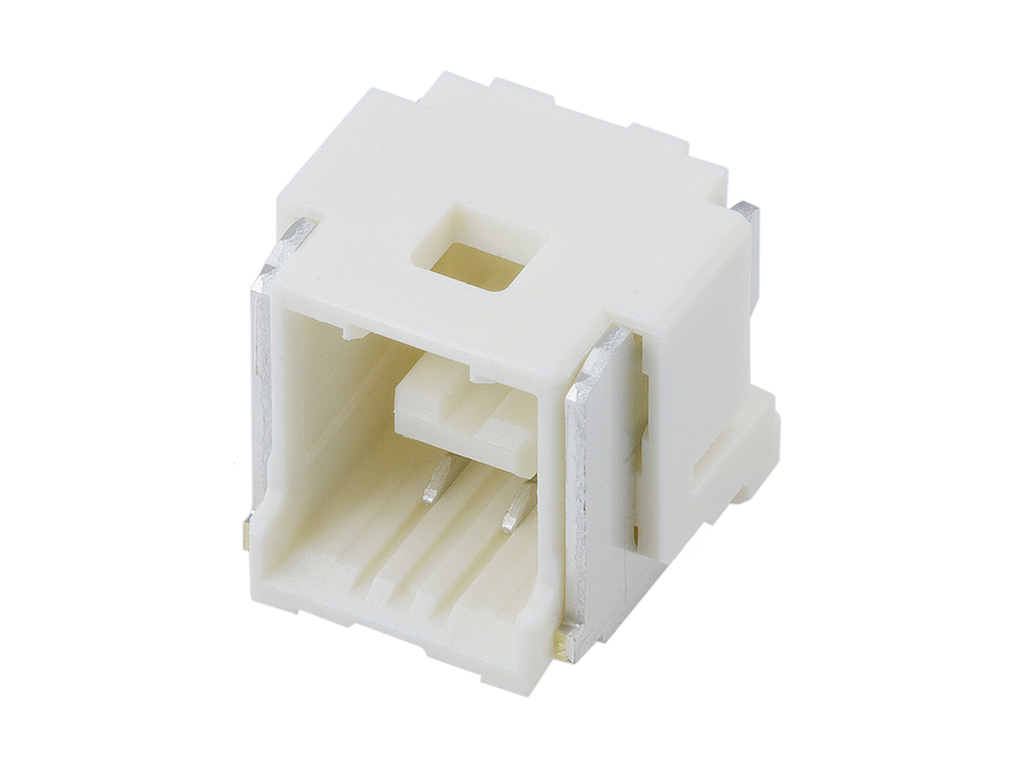

5025850270 CLIK-Mate by Molex
1.50mm Pitch, CLIK-Mate PCB Receptacle, Single Row, Surface Mount, Right-Angle, Tin Plating, Positive Lock, 2 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502585-0270 |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.35
|
124,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.51
|
18,000
in stock
|
Buy Now |
|
Conrad
from US$0.67
|
10,000
in stock
|
Buy Now |
|
Farnell
from US$0.60
|
9,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.52
|
5,000
in stock
|
Buy Now |
|
element14
from US$0.56
|
5,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.45
|
5,000
in stock
|
Buy Now |
|
RS Americas
from US$0.32
|
708
in stock
|
Buy Now |
|
|
RS
from US$0.73
|
680
in stock
|
Buy Now |
|
Avnet Abacus
-
|
18,000
in stock
|
Buy Now |
|
TME
from US$0.48
|
0
in stock
|
Buy Now |
|
Sager
from US$0.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.36
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.37
|
0
in stock
|
Buy Now |
|
EME
from US$0.51
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Beige |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 6.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 393.000/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.50mm |
| Pitch Termination Interface | 1.50mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn Wire to Board RCP 2 POS 1.5mm Solder RA SMD Embossed T/R | Avnet America |
| 1.5MM CLIKMATE PCB RCPT R/A 2P | TTI Europe |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 2 Rastermaß: 1.50 mm 5025850270 1 St. Tape on Full reel | Conrad |
| CONN, R/A RCPT, 2POS, 1.5MM, SMT | Farnell |
| Connector, Rcpt, 2Pos, 1Row, 1.5Mm | Newark Electronics |
| CONN, R/A RCPT, 2POS, 1ROW, 1.5MM | element14 |
| 1.50MM CLIK-MATE REC 02P RA | TTI Americas |
| 1.5 W/B SGL RA REC ASSY2CKTEMBSTPPKG | RS Americas |
| Molex 5025850270 PCB Header | RS |
| Connector: wire-board | TME |
| Headers & Wire Housings 1.50MM CLIK-MATE REC 02P RA | Sager |
| 1.5 W/B SGL RA REC ASSY2CKTEM STPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5025850270?
Additional datasheets, footprints and schematics for 5025850270 are listed on our Part Details page. You can also find images and similar parts to 5025850270 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5025850270 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5025850270 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5025850270 fall under?
The 5025850270 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5025850270 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5025850270 you can contact the distributor directly for product support, shipping queries etc.
Is the 5025850270 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5025850270 have stock available?
Authorised distributors including Avnet America, TTI Europe, Conrad, Farnell and Newark Electronics have stock available or on a lead time for 5025850270.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5025850270 often in real-time on the comparison pages.
What if I can't find stock of 5025850270?
You can fill out our help required form which you can use to request a quote for 5025850270 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
