5025982393 Easy-On by Molex

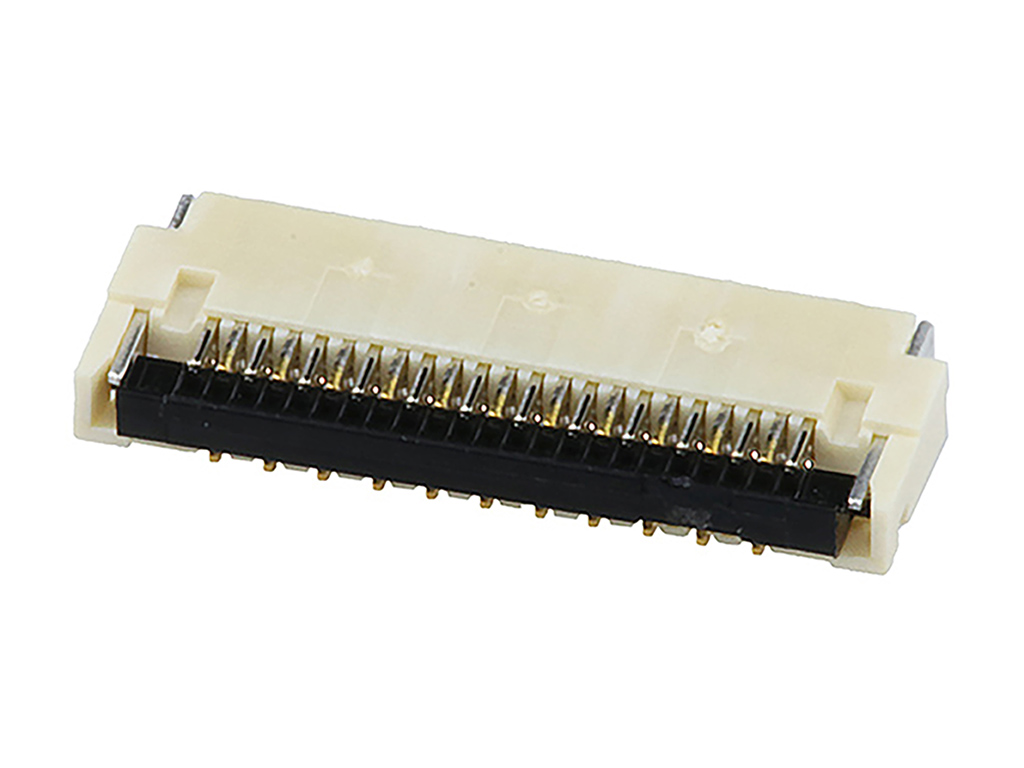

Easy-On Back Flip FPC Connector, 0.30mm Pitch, Right-Angle, Surface Mount, Dual Contact Style, 1.15mm Mated Height, 23 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502598-2393 |
Where to Buy
Prices starting from US$0.51
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.76
|
50,208
in stock
|
Buy Now |
|
TME
from US$0.78
|
47,000
in stock
|
Buy Now |
|
Farnell
from US$0.98
|
45,500
in stock
|
Buy Now |
|
Heilind Americas
from US$0.85
|
13,500
in stock
|
Buy Now |
|
Newark Electronics
from US$1.03
|
9,000
in stock
|
Buy Now |
|
element14
from US$0.74
|
9,000
in stock
|
Buy Now |
|
Rutronik
from US$0.86
|
0
in stock
|
Buy Now |
|
RS
from US$1.25
|
0
in stock
|
Buy Now |
|
Sager
from US$1.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.69
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.51
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Back Flip |
| Circuits Loaded | 23 |
| Color Resin | Black, White |
| Contact Position | Dual |
| Durability Mating Cycles Max | 10 |
| Mated Height | 1.15mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 61.469/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.30mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FPC only |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 23 Rastermaß: 0.3 mm 5025982393 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FPC CONN, RCPT, 23POS, 1ROW, 0.3MM | Farnell |
| 0.3 FPC Back Flip Hsg Ass ktEmbsTpPkg | Heilind Americas |
| Connector, Ffc/Fpc, 23Pos, 1Row, 0.3Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 23POS, 1ROW, 0.3MM | element14 |
| 23P FFC/FPC Backflip SMT DualSide 0.30mm | Rutronik |
| Molex 5025982393 FPC Connector | RS |
| FFC & FPC Connectors .3MM 23P EASY-ON RA SMT | Sager |
| .3MM 23P EASY-ON RA SMT | TTI Asia |
