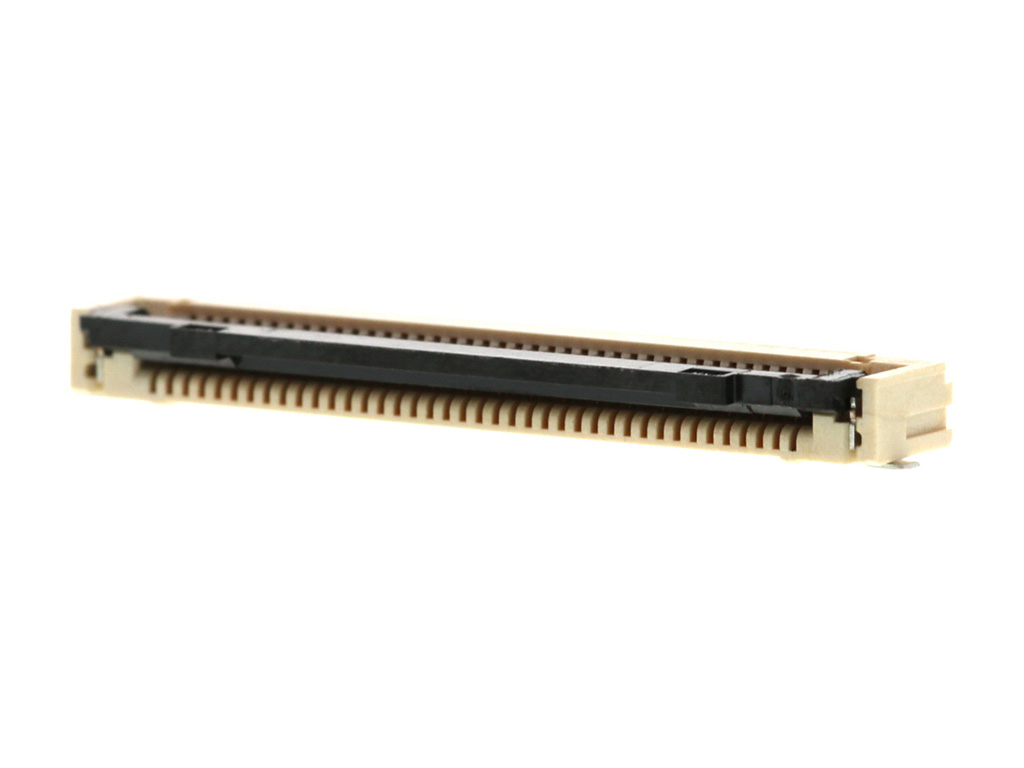

5027904091 Easy-On by Molex
0.50mm Pitch Easy-On Front Flip FPC Connector, Surface Mount, ZIF, Double Bottom Contact, 2.50mm Height, Accepts FFC/FPC with Ear-tabs, 40 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502790-4091 |
Where to Buy
Prices starting from US$0.99
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.79
|
14,000
in stock
|
Buy Now |
|
TME
from US$1.35
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.67
|
6,000
in stock
|
Buy Now |
|
TTI Europe
from US$1.33
|
4,000
in stock
|
Buy Now |
|
RS
from US$2.21
|
0
in stock
|
Buy Now |
|
Sager
from US$1.45
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.42
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.99
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.39
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 40 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Mated Height | 2.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 371.161/mg |
| Orientation | Right Angle |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FPC only |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FFC-FPC PC BOARD | Farnell |
| Connector: FFC/FPC | TME |
| 0.5 Fpc Zif E/O Btmhsgassy40Cktembstppkg |Molex 502790-4091 | Newark Electronics |
| .50MM FFC/FPC 40 CIRCUITS | TTI Europe |
| Molex 502790-4091 FFC Jumper Cable | RS |
| FFC & FPC Connectors .5MM REC 40P RA SMT DOUBLE BOT | Sager |
| 0.5 FPC ZIF E/O BTMHSGASSY40C TEMBSTPPKG | Heilind Americas |
| .5MM REC 40P RA SMT DOUBLE BOT | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5027904091?
Additional datasheets, footprints and schematics for 5027904091 are listed on our Part Details page. You can also find images and similar parts to 5027904091 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5027904091 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5027904091 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5027904091 fall under?
The 5027904091 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5027904091 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5027904091 you can contact the distributor directly for product support, shipping queries etc.
Is the 5027904091 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5027904091 have stock available?
Authorised distributors including Farnell, TME, Newark Electronics, TTI Europe and RS have stock available or on a lead time for 5027904091.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5027904091 often in real-time on the comparison pages.
What if I can't find stock of 5027904091?
You can fill out our help required form which you can use to request a quote for 5027904091 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
