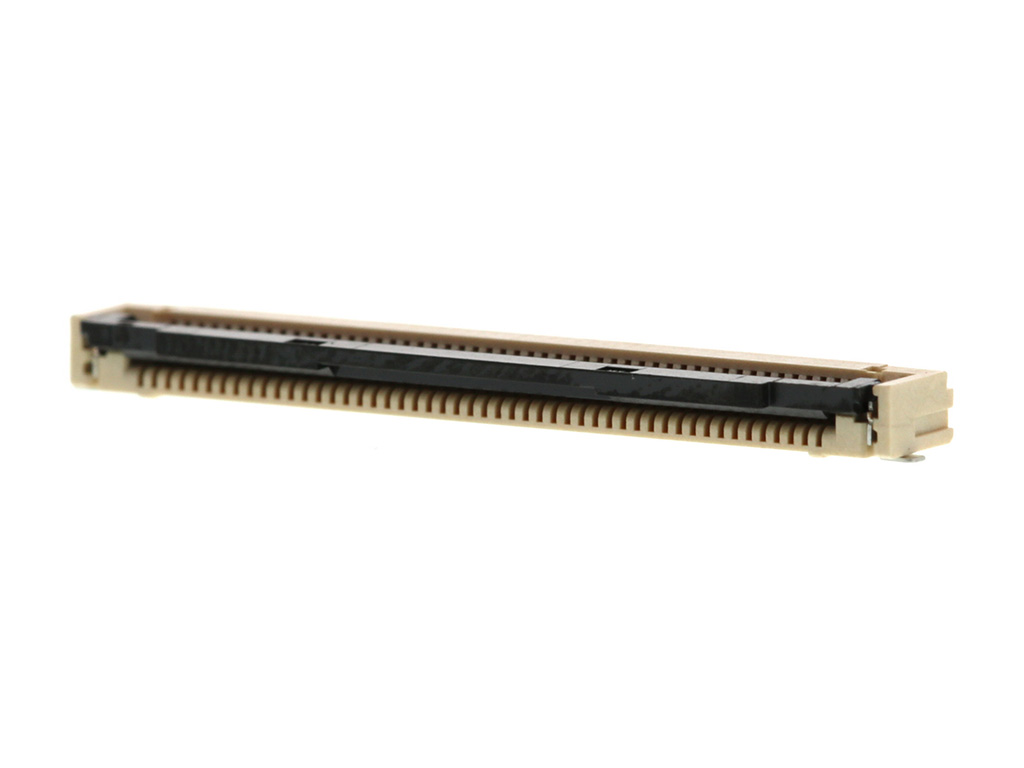

5027905091 Easy-On by Molex
0.50mm Pitch Easy-On Front Flip FPC Connector, Surface Mount, ZIF, Double Bottom Contact, 2.50mm Height, Accepts FFC/FPC with Ear-tabs, 50 Circuits
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 502790-5091 |
Where to Buy
Prices starting from US$0.39
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 50 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Mated Height | 2.50mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 459.751/mg |
| Orientation | Right Angle |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FPC only |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .50MM FFC/FPC 50 CIRCUITS | TTI Europe |
| Connector, Fpc, 50Pos, 1Row, 0.5Mm | Newark Electronics |
| FFC & FPC Connectors .5MM REC 50P RA SMT DOUBLE BOT | Sager |
| 0.5 FPC ZIF E/O BTMHSGASS TEMBSTPPKG | Heilind Americas |
