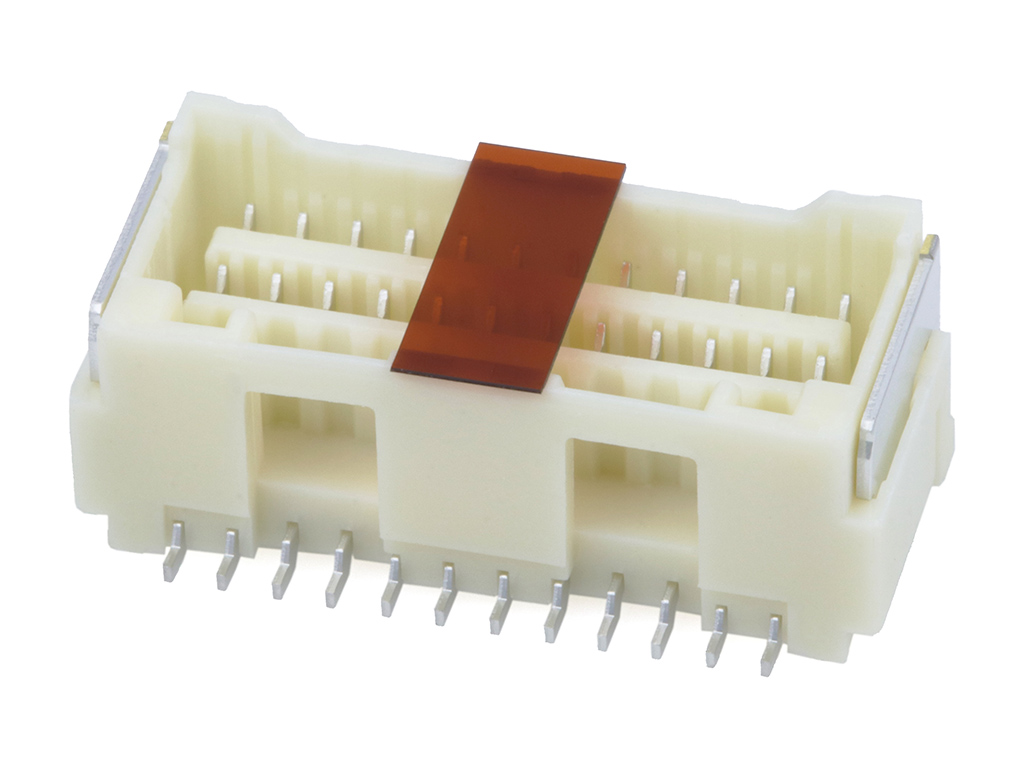

5031542490 CLIK-Mate by Molex
1.50mm Pitch, CLIK-Mate PCB Receptacle, Dual Row, Surface Mount, Vertical, Tin Plating, Positive Lock, 24 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 503154-2490 |
Where to Buy
Prices starting from US$1.24
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.93
|
16,650
in stock
|
Buy Now |
|
Farnell
from US$1.94
|
15,300
in stock
|
Buy Now |
|
element14
from US$2.25
|
497
in stock
|
Buy Now |
|
Newark Electronics
from US$1.96
|
450
in stock
|
Buy Now |
|
TME
from US$1.67
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.54
|
0
in stock
|
Buy Now |
|
Sager
from US$1.24
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.27
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.30
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.56
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CLIK-Mate |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Voltage Maximum | 100V |
Physical |
|
|---|---|
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 11.20mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyamide (PA) |
| Net Weight | 1982.550/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.20mm, 1.70mm |
| Pitch Mating Interface | 1.50mm |
| Pitch Termination Interface | 1.50mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 24 Rastermaß: 1.50 mm 5031542490 1 St. Tape on Full reel | Conrad |
| PCB RECEPTACLES | Farnell |
| CONNECTOR, RCPT, 24POS, 2ROW, 1.5MM | element14 |
| Connector, Rcpt, 24Pos, 2Row, 1.5Mm | Newark Electronics |
| Connector: wire-board | TME |
| 1.50MM PITCH, CLIK-MATE 24CIRC | TTI Europe |
| Headers & Wire Housings 1.50MM CLIK-MATE REC 24P VT | Sager |
| 1.5 W/B DL ST RECASSY24CKTEMB TPPKGBEIGE | Heilind Americas |
| 1.50MM CLIK-MATE REC 24P VT | TTI Asia |
| Conn Wire to Board Receptacle 24 POS 1.5mm Solder ST SMD | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5031542490?
Additional datasheets, footprints and schematics for 5031542490 are listed on our Part Details page. You can also find images and similar parts to 5031542490 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5031542490 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5031542490 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5031542490 fall under?
The 5031542490 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5031542490 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5031542490 you can contact the distributor directly for product support, shipping queries etc.
Is the 5031542490 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5031542490 have stock available?
Authorised distributors including Conrad, Farnell, element14, Newark Electronics and TME have stock available or on a lead time for 5031542490.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5031542490 often in real-time on the comparison pages.
