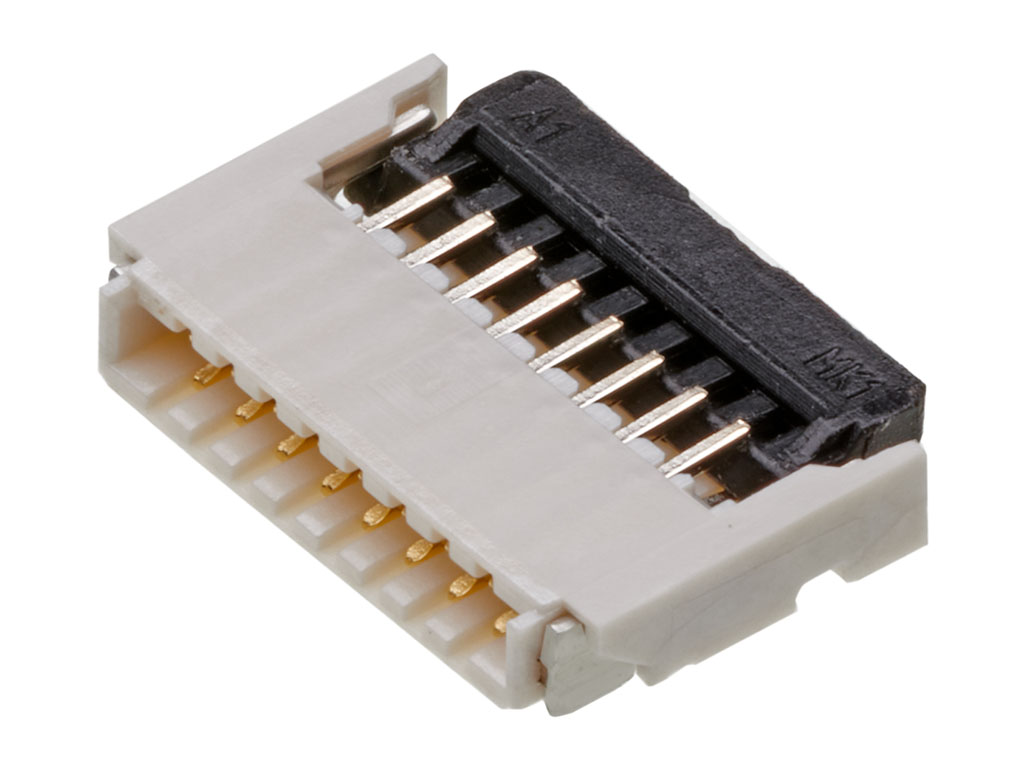

5034800800 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, FBH1 Series, Right-Angle, Dual Contact, 1.00mm Height, 8 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 503480-0800 |
Where to Buy
Prices starting from US$0.25
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.51
|
35,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.80
|
13,630
in stock
|
Buy Now |
|
element14
from US$0.48
|
13,630
in stock
|
Buy Now |
|
TTI Europe
from US$0.33
|
12,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.42
|
9,000
in stock
|
Buy Now |
|
Sager
from US$0.43
|
3,000
in stock
|
Buy Now |
|
Conrad
from US$0.71
|
2,874
in stock
|
Buy Now |
|
TME
from US$0.37
|
1,221
in stock
|
Buy Now |
|
RS
from US$0.62
|
377
in stock
|
Buy Now |
|
Avnet Asia
-
|
21,000
in stock
|
Buy Now |
|
Rutronik
from US$0.42
|
0
in stock
|
Buy Now |
|
Compona
from US$0.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.35
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.25
|
0
in stock
|
Buy Now |
|
EME
from US$0.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Back Flip |
| Circuits Loaded | 8 |
| Color Resin | Natural (White) |
| Contact Position | Dual |
| Durability Mating Cycles Max | 10 |
| Flammability | 94V-0 |
| Mated Height | 1.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 33.391/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FPC CONN, RCPT, 8POS, 1ROW, 0.5MM | Farnell |
| Connector, Fpc, 8Pos, 1Row, 0.5Mm Pitch Spacing0.5Mm No. Of Contacts8Contacts Genderreceptacle Product Rangeeasy-On 503480 Series Contact Termination Typesurface Mount Contact Positiontop, Bottom No. Of Rows1 Row Rohs Compliant: Yes |Molex 503480-0800 | Newark Electronics |
| CONNECTOR, FPC, 8POS, 1ROW, 0.5MM | element14 |
| 0.50MM PITCH EASY-ON 8 CIRCUIT | TTI Europe |
| 0.5 FPC E/O B/F ASSY 8CKT EMB TP PKG | Heilind Americas |
| FFC & FPC Connectors .5MM REC 08P RA SMT DUAL CONT | Sager |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 0.5 mm 5034800800 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| Molex 503480-0800 FPC Connector | RS |
| FFC / FPC Board Connector, 0.5 mm, 8 Contacts, Receptacle, Easy-On 503480, Surface Mount | Avnet Asia |
| 08P FFC/FPC Backflip SMT DualSide 0.50mm | Rutronik |
| MOLEX 503480-0800 Plug FFC 8p SMT | Compona |
| .5MM REC 08P RA SMT DUAL CONT | TTI Asia |
