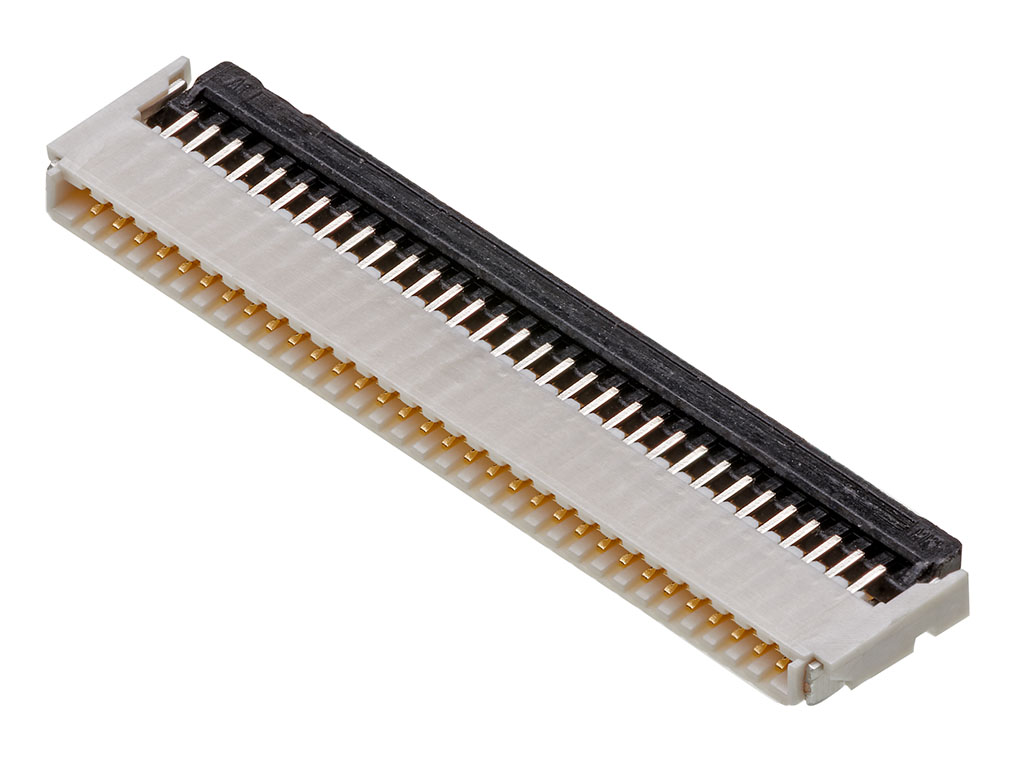

5034803200 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, FBH1 Series, Right-Angle, Dual Contact, 1.00mm Height, 32 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 503480-3200 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.28
|
6,000
in stock
|
Buy Now |
|
Farnell
from US$1.56
|
6,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.86
|
3,000
in stock
|
Buy Now |
|
TME
from US$1.02
|
2,856
in stock
|
Buy Now |
|
element14
from US$1.57
|
2,521
in stock
|
Buy Now |
|
Offical Electronic
-
|
300
in stock
|
Buy Now |
|
Rutronik
from US$0.58
|
0
in stock
|
Buy Now |
|
RS
from US$1.00
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.93
|
0
in stock
|
Buy Now |
|
Sager
from US$1.73
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.34
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Back Flip |
| Circuits Loaded | 32 |
| Color Resin | Natural (White) |
| Contact Position | Dual |
| Durability Mating Cycles Max | 10 |
| Flammability | 94V-0 |
| Mated Height | 1.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 103.021/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 32 Rastermaß: 0.5 mm 5034803200 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 32POS, 1ROW, 0.5MM | Farnell |
| Easy-On Ffc/Fpc Connector 0.50Mm Pitch Fbh1 Serie |Molex 503480-3200 | Newark Electronics |
| Connector: FFC/FPC | TME |
| CONNECTOR, FPC, 32POS, 1ROW, 0.5MM | element14 |
| 32P FFC/FPC Backflip SMT DualSide 0.50mm | Rutronik |
| Molex 503480-3200 FPC Connector | RS |
| 0.5 FPC E/O B/F ASSY 32CKT | TTI Europe |
| FFC & FPC Connectors .5MM REC 32P RA SMT DUAL CONT | Sager |
| .5MM REC 32P RA SMT DUAL CONT | TTI Asia |
| FFC / FPC Board Connector, 0.5 mm, 32 Contacts, Receptacle, Easy-On 503480, Surface Mount | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5034803200?
Additional datasheets, footprints and schematics for 5034803200 are listed on our Part Details page. You can also find images and similar parts to 5034803200 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5034803200 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5034803200 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5034803200 fall under?
The 5034803200 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5034803200 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5034803200 you can contact the distributor directly for product support, shipping queries etc.
Is the 5034803200 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5034803200 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, TME and element14 have stock available or on a lead time for 5034803200.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5034803200 often in real-time on the comparison pages.
What if I can't find stock of 5034803200?
You can fill out our help required form which you can use to request a quote for 5034803200 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
