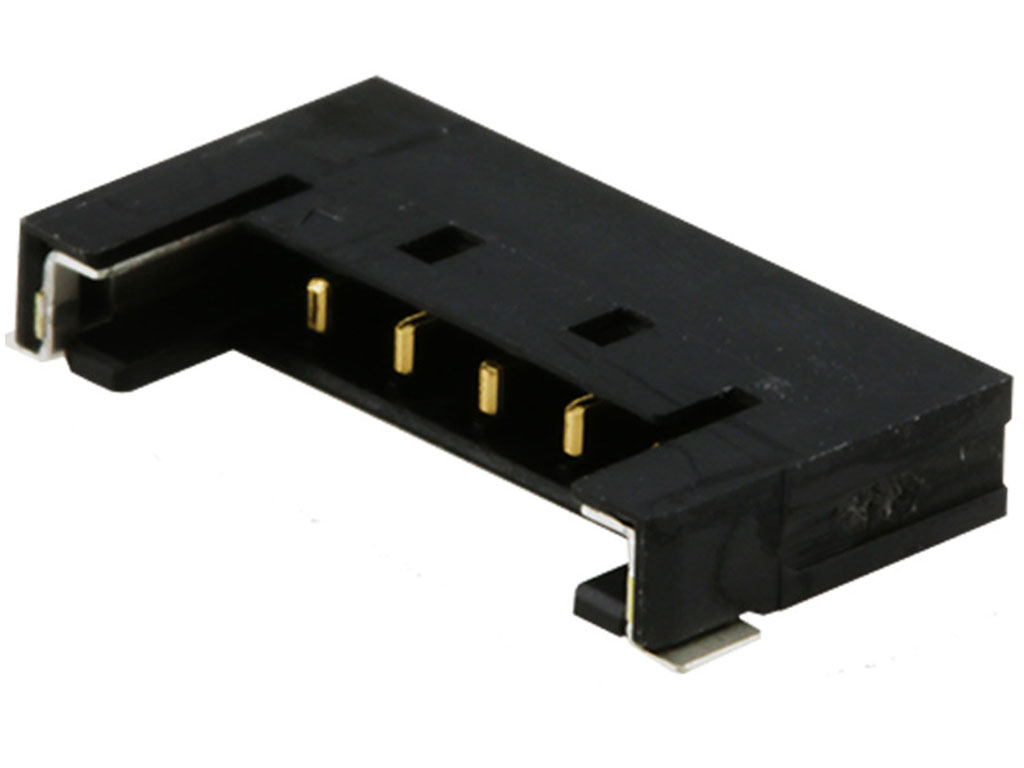

5040500491 Pico-Lock by Molex
1.50mm Pitch, Pico-Lock PCB Header, Single Row, Right-Angle, Surface Mount, Gold (Au) Plating, Positive Lock, 4 Circuits, Tape and Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 504050-0491 |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.80
|
62,100
in stock
|
Buy Now |
|
TTI Europe
from US$0.65
|
48,600
in stock
|
Buy Now |
|
Heilind Americas
from US$0.46
|
14,175
in stock
|
Buy Now |
|
Sager
from US$0.57
|
10,800
in stock
|
Buy Now |
|
Rutronik
from US$0.87
|
8,100
in stock
|
Buy Now |
|
Newark Electronics
from US$0.67
|
6,687
in stock
|
Buy Now |
|
Avnet America
from US$0.41
|
5,400
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.54
|
2,700
in stock
|
Buy Now |
|
Conrad
from US$0.75
|
2,690
in stock
|
Buy Now |
|
RS Americas
from US$0.40
|
2,444
in stock
|
Buy Now |
|
|
RS
from US$0.86
|
1,862
in stock
|
Buy Now |
|
Avnet Abacus
-
|
24,300
in stock
|
Buy Now |
|
TME
from US$0.86
|
0
in stock
|
Buy Now |
|
Compona
from US$0.76
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.69
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Pico-Lock |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 150V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | N/A |
| Lock To Mating Part | Yes |
| Mated Height | 2.00mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 126.640/mg |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pitch Mating Interface | 1.50mm |
| Pitch Termination Interface | 1.50mm |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, R/A HEADER, 4POS, 1ROW, 1.5MM | Farnell |
| 1.5MM W-T-B HEADER RT ANGLE 4C | TTI Europe |
| 1.5W/B CONN. HEADER ASS'Y P PKG (4P) | Heilind Americas |
| Headers & Wire Housings 1.50MM HDR 1X04P RA | Sager |
| 04P PICO LOCK 1,50MM SMT H=2,00 | Rutronik |
| Connector, Header, 4Pos, 1Row, 1.5Mm | Newark Electronics |
| Conn Shrouded Header 4 POS 1.5mm Solder RA SMD | Avnet America |
| 1.50MM HDR 1X04P RA | TTI Americas |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 4 Rastermaß: 1.5 mm 5040500491 1 St. Tape on Full reel | Conrad |
| 1.5W/B CONN. HEADER ASSY EMBTP PKG (4P) | RS Americas |
| Molex 504050-0491 PCB Header | RS |
| Connector: wire-board | TME |
| MOLEX 504050-0491 Plug Square 4p SMT | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5040500491?
Additional datasheets, footprints and schematics for 5040500491 are listed on our Part Details page. You can also find images and similar parts to 5040500491 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5040500491 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5040500491 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5040500491 fall under?
The 5040500491 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 5040500491 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5040500491 you can contact the distributor directly for product support, shipping queries etc.
Is the 5040500491 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5040500491 have stock available?
Authorised distributors including Farnell, TTI Europe, Heilind Americas, Sager and Rutronik have stock available or on a lead time for 5040500491.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5040500491 often in real-time on the comparison pages.
What if I can't find stock of 5040500491?
You can fill out our help required form which you can use to request a quote for 5040500491 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
