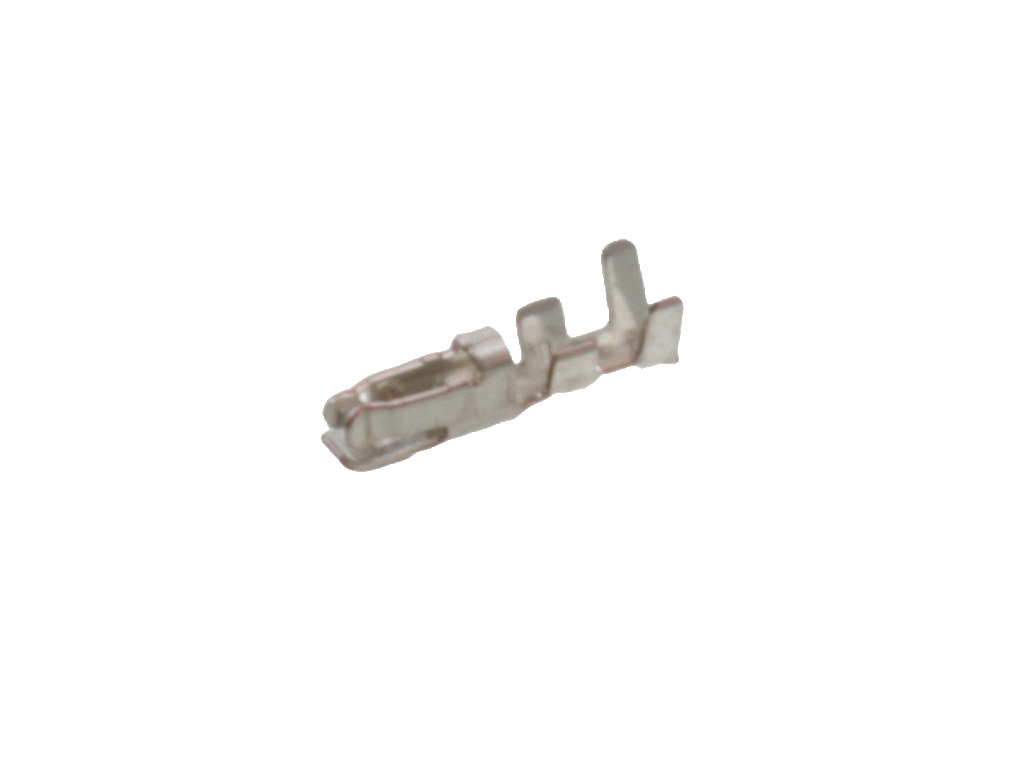

5041851000 Micro-Lock by Molex
Micro-Lock 1.25mm Pitch Wire-to-Board Crimp Terminal, Female, 30-26 AWG, Reel
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 504185-1000 |
Specifications
| Product Name | Micro-Lock |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Net Weight | 31.494/mg |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.78-1.02mm |
| Wire Size Awg | 26, 28, 30 |
| Wire Size Mm | 0.079-0.136 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, 26AWG, CRIMP | element14 |
| Contact, Socket, 26Awg, Crimp | Newark Electronics |
| Contact F Crimp ST Cable Mount Reel | Avnet Asia |
| Headers & Wire Housings 1.25MM MICRO-LOCK TERM WTB | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5041851000?
Additional datasheets, footprints and schematics for 5041851000 are listed on our Part Details page. You can also find images and similar parts to 5041851000 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5041851000 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5041851000 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5041851000 fall under?
The 5041851000 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 5041851000 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5041851000 you can contact the distributor directly for product support, shipping queries etc.
Is the 5041851000 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5041851000 have stock available?
Authorised distributors including element14, Newark Electronics, Avnet Asia and Sager have stock available or on a lead time for 5041851000.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5041851000 often in real-time on the comparison pages.
What if I can't find stock of 5041851000?
You can fill out our help required form which you can use to request a quote for 5041851000 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
