5041861600 Micro-Lock by Molex

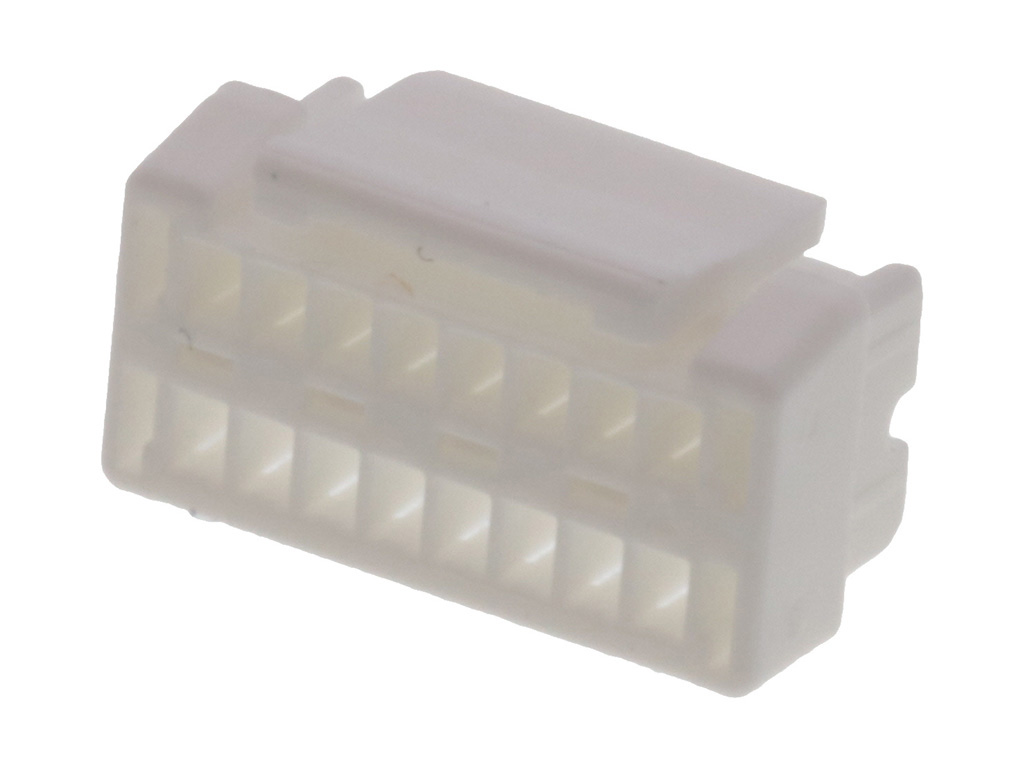

Micro-Lock 1.25mm Pitch Dual-Row Crimp Housing, White, 16 Circuits, 5041861600
| Status: | Active - Proprietary |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 504186-1600 |
Specifications
| Product Name | Micro-Lock |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 16 |
| Color Resin | White |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 262.754/mg |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -25° to +85°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN | RS Americas |
| CONNECTOR, RCPT, 16POS, 2ROW, 1.25MM | Farnell |
| Conn Housing F 16 POS 1.25mm ST Cable Mount Tray | Avnet America |
