5041930500 Micro-Lock by Molex

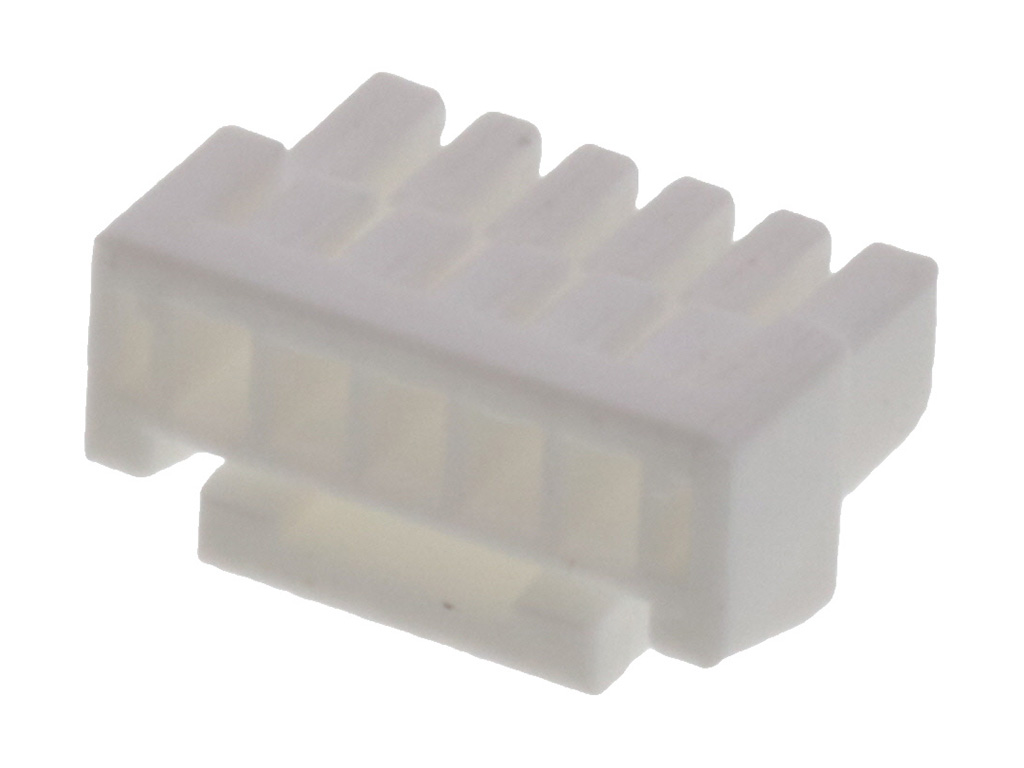

Micro-Lock 1.25mm Pitch Single-Row Crimp Housing, White, 5 Circuits, 5041930500
| Status: | Active - Proprietary |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 504193-0500 |
Specifications
| Product Name | Micro-Lock |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 5 |
| Color Resin | White |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 108.956/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -25° to +85°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| PIN AND SOCKET CONNECTOR HOUSING | Farnell |
| Connector, Rcpt, 5Pos, 1Row, 1.25Mm | Newark Electronics |
| Conn Housing F 5 POS 1.25mm ST Cable Mount Tray | Avnet America |
| CONN | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5041930500?
Additional datasheets, footprints and schematics for 5041930500 are listed on our Part Details page. You can also find images and similar parts to 5041930500 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5041930500 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5041930500 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5041930500 fall under?
The 5041930500 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 5041930500 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5041930500 you can contact the distributor directly for product support, shipping queries etc.
Is the 5041930500 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5041930500 have stock available?
Authorised distributors including TME, Farnell, Newark Electronics, Avnet America and RS Americas have stock available or on a lead time for 5041930500.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5041930500 often in real-time on the comparison pages.
What if I can't find stock of 5041930500?
You can fill out our help required form which you can use to request a quote for 5041930500 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
