5046930400 CP-3.3 by Molex

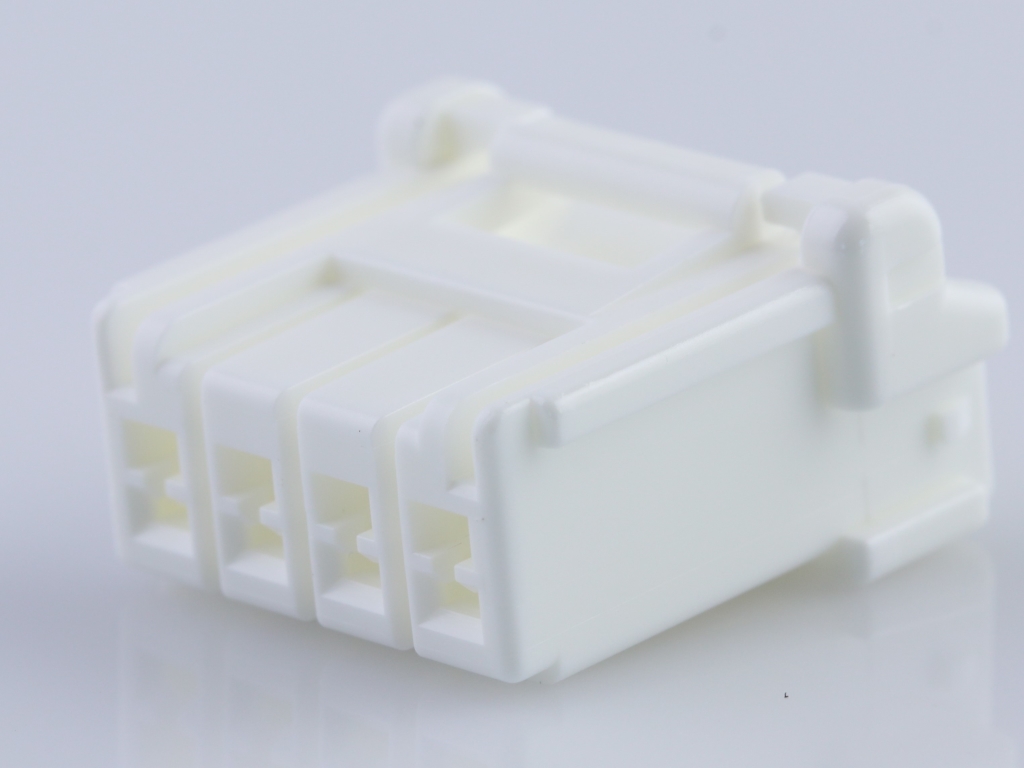

CP-3.3 Receptacle Housing, 3.30mm Pitch, Single Row, Polarized, Positive Inertia Lock, 4 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 504693-0400 |
Specifications
| Product Name | CP-3.3 |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Net Weight | 1314.000/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 3.30mm |
| Pitch Termination Interface | 3.30mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector Housing, Rcpt, 4Pos | Newark Electronics |
| Headers & Wire Housings CP-3.3 WTW REC 04P NATURAL | Sager |
| CP 3.3 W/W CONN SINGL RW REC HSG NAT 4P | Heilind Americas |
| CP-3.3 WTW REC 04P NATURAL | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5046930400?
Additional datasheets, footprints and schematics for 5046930400 are listed on our Part Details page. You can also find images and similar parts to 5046930400 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5046930400 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5046930400 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5046930400 fall under?
The 5046930400 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 5046930400 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5046930400 you can contact the distributor directly for product support, shipping queries etc.
Is the 5046930400 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5046930400 have stock available?
Authorised distributors including Newark Electronics, Sager, Heilind Americas, Heilind Europe and TTI Asia have stock available or on a lead time for 5046930400.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5046930400 often in real-time on the comparison pages.
What if I can't find stock of 5046930400?
You can fill out our help required form which you can use to request a quote for 5046930400 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
