5051101392 Easy-On by Molex

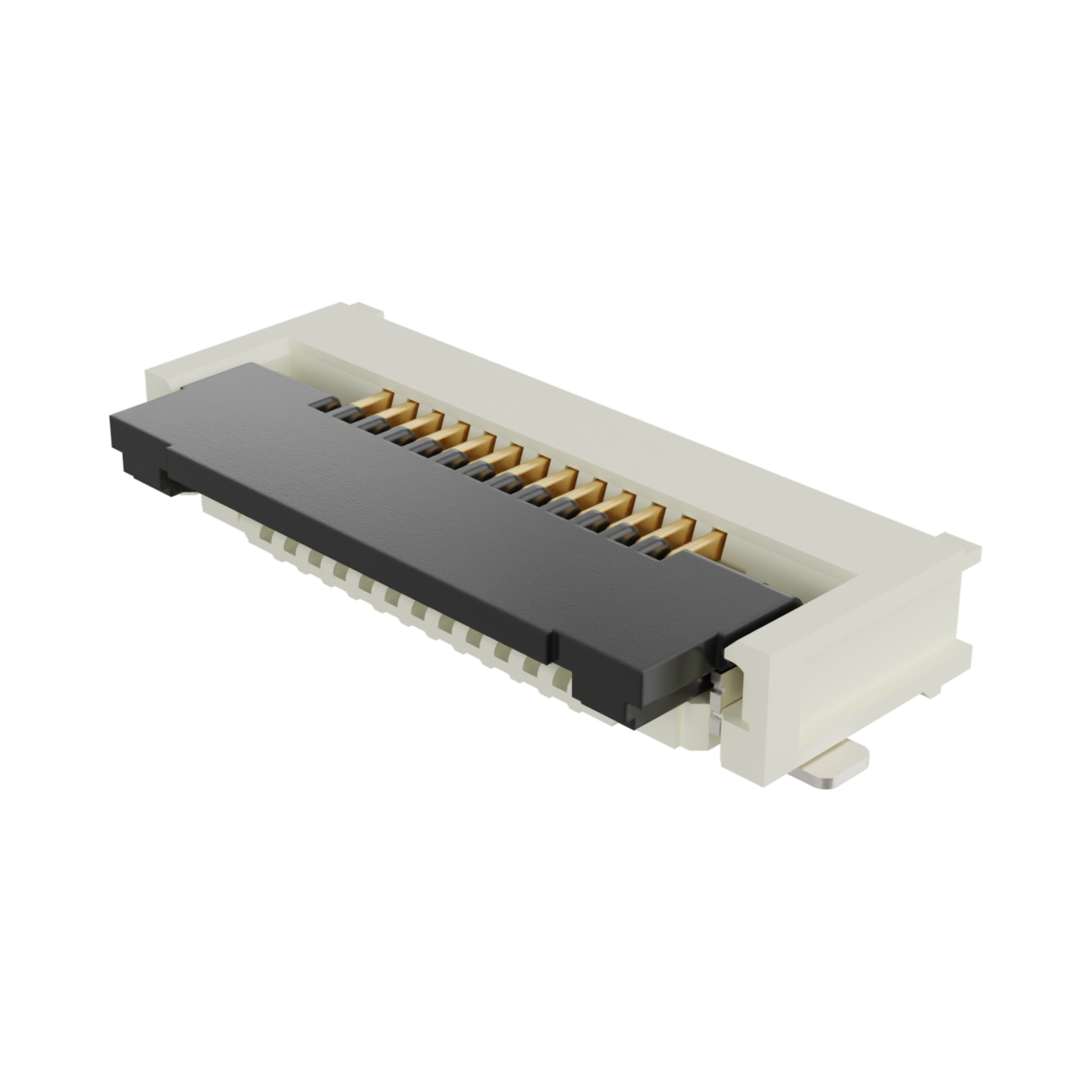

Easy-On FFC/FPC Connector, 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 13 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505110-1392 |
Where to Buy
Prices starting from US$0.39
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.68
|
18,000
in stock
|
Buy Now |
|
element14
from US$0.54
|
18,000
in stock
|
Buy Now |
|
Farnell
from US$0.58
|
18,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.39
|
2,250
in stock
|
Buy Now |
|
TME
from US$0.52
|
0
in stock
|
Buy Now |
|
Sager
from US$0.50
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 13 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 134.450/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn, Ffc/Fpc, Rcpt, 13Pos, Row, 0.5Mm Rohs Compliant: Yes |Molex 505110-1392 | Newark Electronics |
| CONN, FFC/FPC, RCPT, 13POS, ROW, 0.5MM | element14 |
| 0.5 FPC ZIF BTM CONT EMBT PKG 13CKT | Heilind Americas |
| Connector: FFC/FPC | TME |
| FFC & FPC Connectors .5MM EASY-ON 13P RA SMT | Sager |
