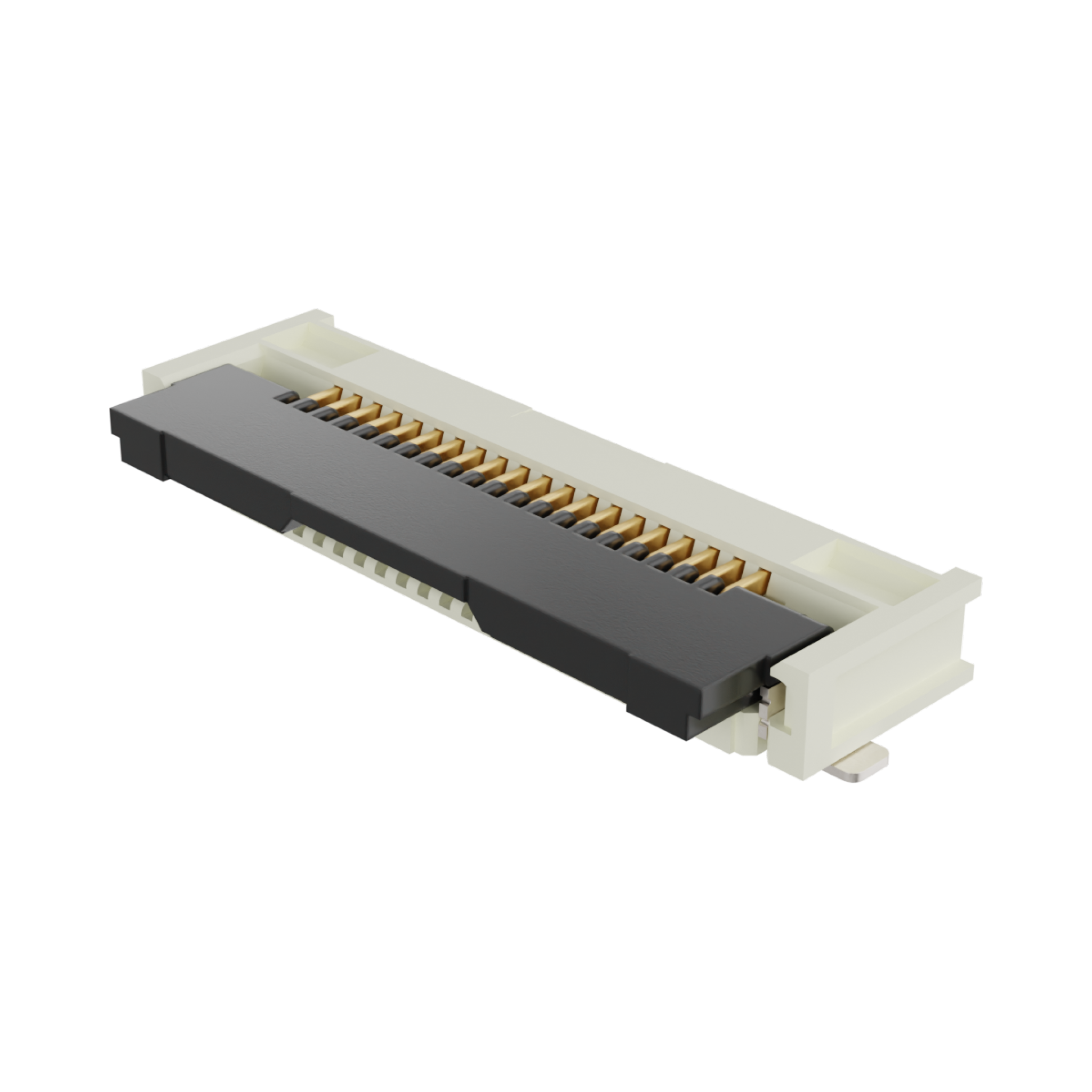

5051102091 Easy-On by Molex
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 20 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505110-2091 |
Where to Buy
Prices starting from US$0.52
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.76
|
373,728
in stock
|
Buy Now |
|
Farnell
from US$0.78
|
336,500
in stock
|
Buy Now |
|
TTI Europe
from US$0.53
|
36,000
in stock
|
Buy Now |
|
element14
from US$0.72
|
15,000
in stock
|
Buy Now |
|
RS
from US$1.29
|
2,990
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.20
|
2,743
in stock
|
Buy Now |
|
Conrad
from US$0.94
|
2,743
in stock
|
Buy Now |
|
TME
from US$0.61
|
0
in stock
|
Buy Now |
|
Sager
from US$0.67
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.62
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.52
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 20 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 183.100/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 Fpc Zif Btm Cont Embt Pkg 20Ckt Rohs Compliant: Yes |Molex 505110-2091 | Newark Electronics |
| FPC CONN, RCPT, 20POS, 1ROW, 0.5MM | Farnell |
| .50 MM FFC/FPC CONNECTOR 20CKT | TTI Europe |
| CONNECTOR, FFC/FPC, 20POS, 1ROW, 0.5MM | element14 |
| Molex 5051102091 FPC Connector | RS |
| Molex 5051102091 Fd19 FFC/FPC Connector 0.5mm Pitch 20 Pins Gold Plated | Rapid Electronics |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 20 Rastermaß: 0.5 mm 5051102091 1 St. Tape on Full reel | Conrad |
| Connector: FFC/FPC | TME |
| FFC & FPC Connectors .5MM EASY-ON 20P RA SMT | Sager |
| 0.5 FPC ZIF BTM CONT EMBT PKG 20CKT | Heilind Americas |
| .5MM EASY-ON 20P RA SMT | TTI Asia |
| FFC/FPC Connector Socket 20 Position 0.5 mm Solder Right Angle Surface Mount Emboss T/R | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5051102091?
Additional datasheets, footprints and schematics for 5051102091 are listed on our Part Details page. You can also find images and similar parts to 5051102091 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5051102091 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5051102091 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5051102091 fall under?
The 5051102091 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5051102091 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5051102091 you can contact the distributor directly for product support, shipping queries etc.
Is the 5051102091 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5051102091 have stock available?
Authorised distributors including Newark Electronics, Farnell, TTI Europe, element14 and RS have stock available or on a lead time for 5051102091.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5051102091 often in real-time on the comparison pages.
What if I can't find stock of 5051102091?
You can fill out our help required form which you can use to request a quote for 5051102091 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
