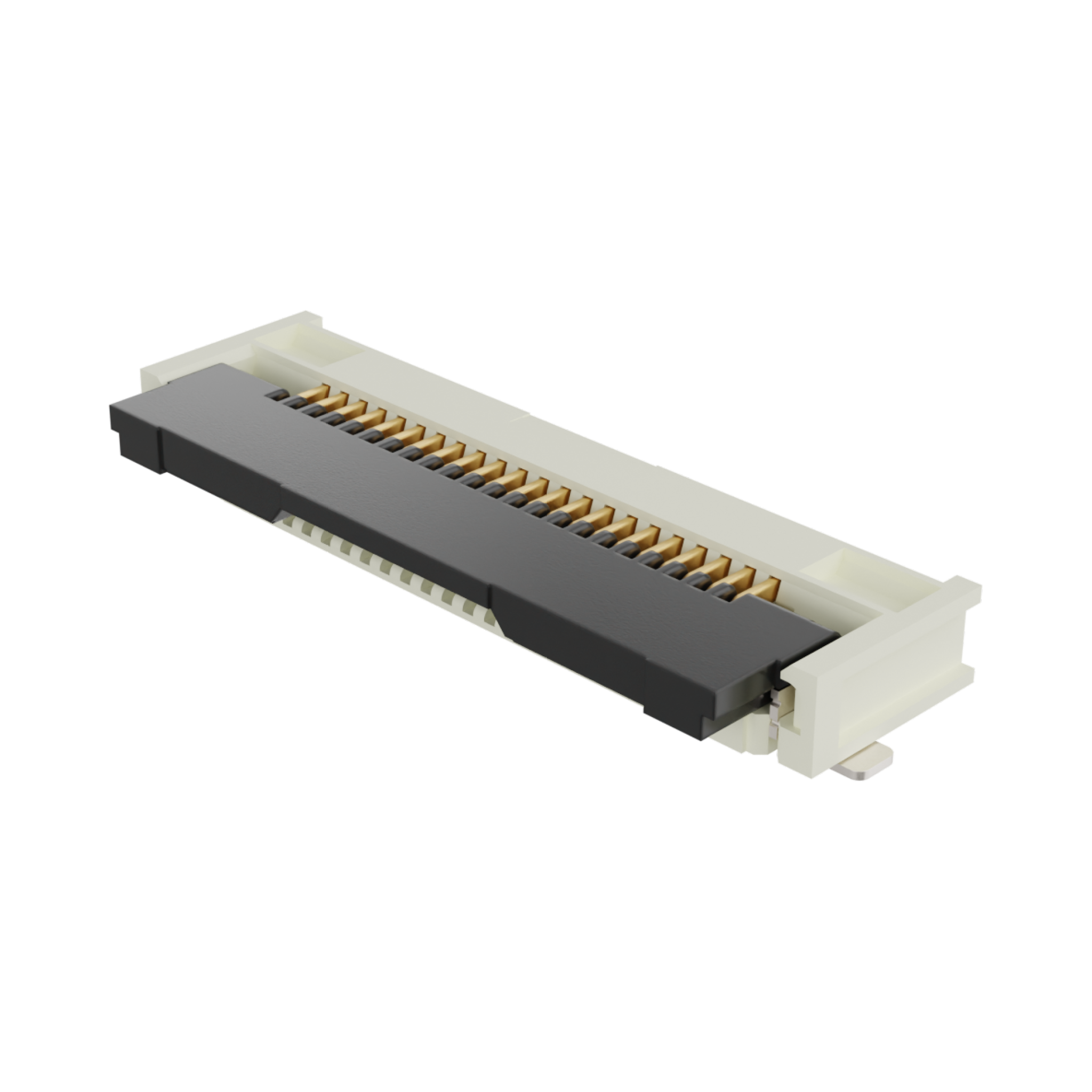

5051102291 Easy-On by Molex
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 22 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505110-2291 |
Where to Buy
Prices starting from US$0.56
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.56
|
39,000
in stock
|
Buy Now |
|
Conrad
from US$0.69
|
39,000
in stock
|
Buy Now |
|
Farnell
from US$0.82
|
35,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.92
|
8,349
in stock
|
Buy Now |
|
element14
from US$0.74
|
8,349
in stock
|
Buy Now |
|
RS
from US$0.98
|
0
in stock
|
Buy Now |
|
Avnet Asia
from US$0.87
|
0
in stock
|
Buy Now |
|
Sager
from US$0.77
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.76
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.71
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.60
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 22 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 197.100/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 22 Rastermaß: 0.5 mm 5051102291 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 22POS, 1ROW, 0.5MM | Farnell |
| Ffc/Fpc Board Connector, Easy-On 505110 Series, Surface Mount, Receptacle, 22, Bottom, 0.5 Mm Rohs Compliant: Yes |Molex 505110-2291 | Newark Electronics |
| CONNECTOR, FFC/FPC, 22POS, 1ROW, 0.5MM | element14 |
| Molex 505110-2291 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 22 POS 0.5mm Solder RA SMD Embossed T/R | Avnet Asia |
| FFC & FPC Connectors .5MM EASY-ON 22P RA SMT | Sager |
| 0.5 FPC ZIF BTM CONT EMBT PKG 22CKT | Heilind Americas |
| .5MM EASY-ON 22P RA SMT | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5051102291?
Additional datasheets, footprints and schematics for 5051102291 are listed on our Part Details page. You can also find images and similar parts to 5051102291 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5051102291 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5051102291 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5051102291 fall under?
The 5051102291 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5051102291 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5051102291 you can contact the distributor directly for product support, shipping queries etc.
Is the 5051102291 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5051102291 have stock available?
Authorised distributors including TME, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 5051102291.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5051102291 often in real-time on the comparison pages.
What if I can't find stock of 5051102291?
You can fill out our help required form which you can use to request a quote for 5051102291 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
