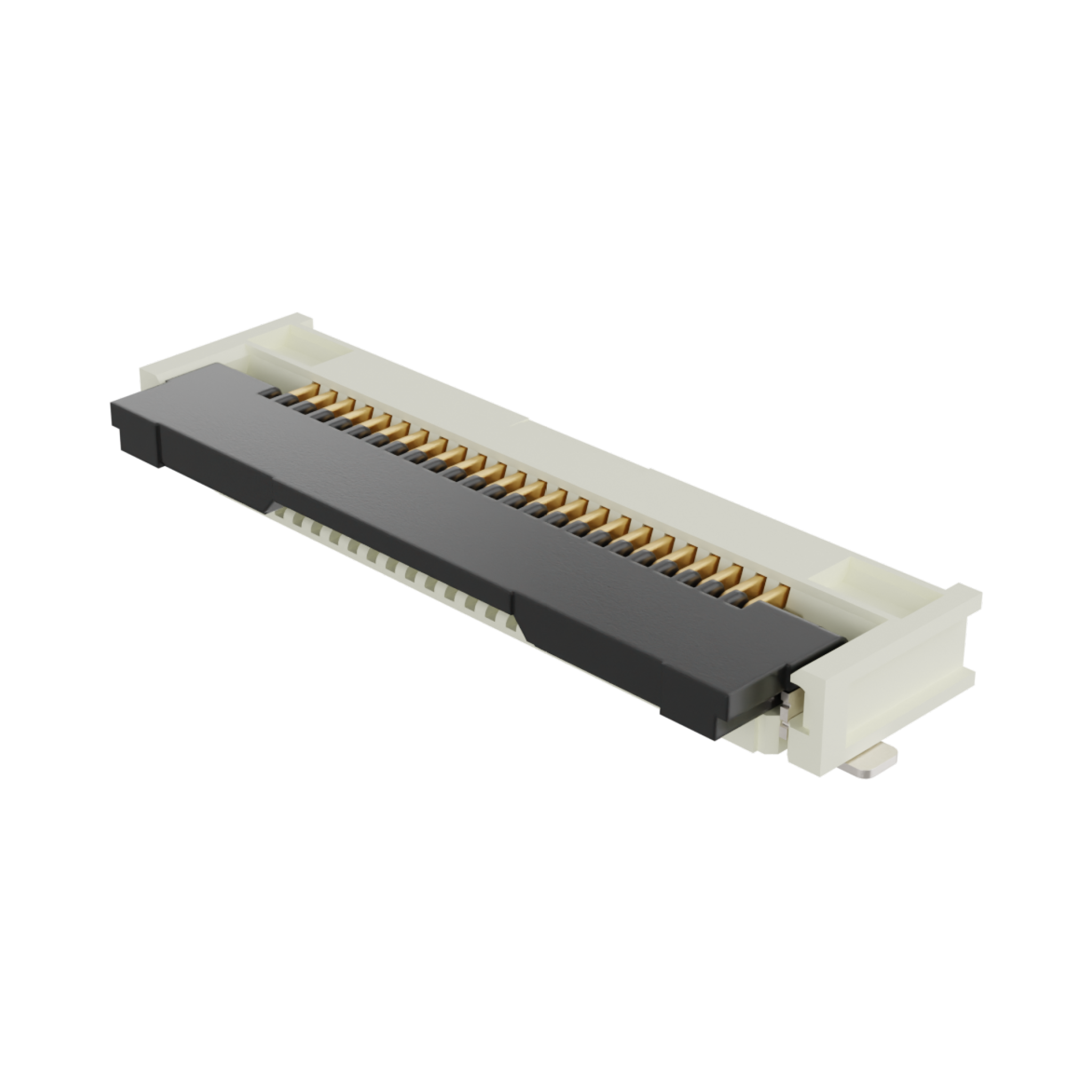

5051102491 Easy-On by Molex
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 24 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505110-2491 |
Where to Buy
Prices starting from US$0.57
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.79
|
33,000
in stock
|
Buy Now |
|
Farnell
from US$0.90
|
30,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.57
|
27,000
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.63
|
12,000
in stock
|
Buy Now |
|
element14
from US$0.84
|
8,129
in stock
|
Buy Now |
|
TME
from US$0.91
|
2,536
in stock
|
Buy Now |
|
Newark Electronics
from US$0.81
|
1,012
in stock
|
Buy Now |
|
Rutronik
from US$0.86
|
0
in stock
|
Buy Now |
|
RS
from US$0.98
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.68
|
0
in stock
|
Buy Now |
|
Sager
from US$0.77
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.59
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 24 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 211.100/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 24 Rastermaß: 0.5 mm 5051102491 1 St. Tape on Full reel | Conrad |
| FFC-FPC CONNNECTORS | Farnell |
| 0.5 FPC ZIF BTM CONT EMBT PKG 24CKT | Heilind Americas |
| CONNECTOR, FFC/FPC, 24POS, 1 ROW, 0.5MM | element14 |
| Connector: FFC/FPC | TME |
| 0.5 Fpc Zif Btm Cont Embt Pkg 24Ckt Rohs Compliant: Yes |Molex 505110-2491 | Newark Electronics |
| 24P FFC/FPC ZIF SMT 90° Bott-Con 0.50mm | Rutronik |
| Molex 505110-2491 FPC Connector | RS |
| .50 MM FFC/FPC CONNECTOR 24CKT | TTI Europe |
| FFC & FPC Connectors .5MM EASY-ON 24P RA SMT | Sager |
| NTAB-DSC|PCB |250X032|N-I|SN | TTI Asia |
| FFC/FPC Connector Socket 24 Position 0.5 mm Solder Right Angle Surface Mount Emboss T/R | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5051102491?
Additional datasheets, footprints and schematics for 5051102491 are listed on our Part Details page. You can also find images and similar parts to 5051102491 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5051102491 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5051102491 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5051102491 fall under?
The 5051102491 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5051102491 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5051102491 you can contact the distributor directly for product support, shipping queries etc.
Is the 5051102491 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5051102491 have stock available?
Authorised distributors including Conrad, Farnell, Heilind Americas, Heilind Europe and element14 have stock available or on a lead time for 5051102491.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5051102491 often in real-time on the comparison pages.
What if I can't find stock of 5051102491?
You can fill out our help required form which you can use to request a quote for 5051102491 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
