5051102691 Easy-On by Molex

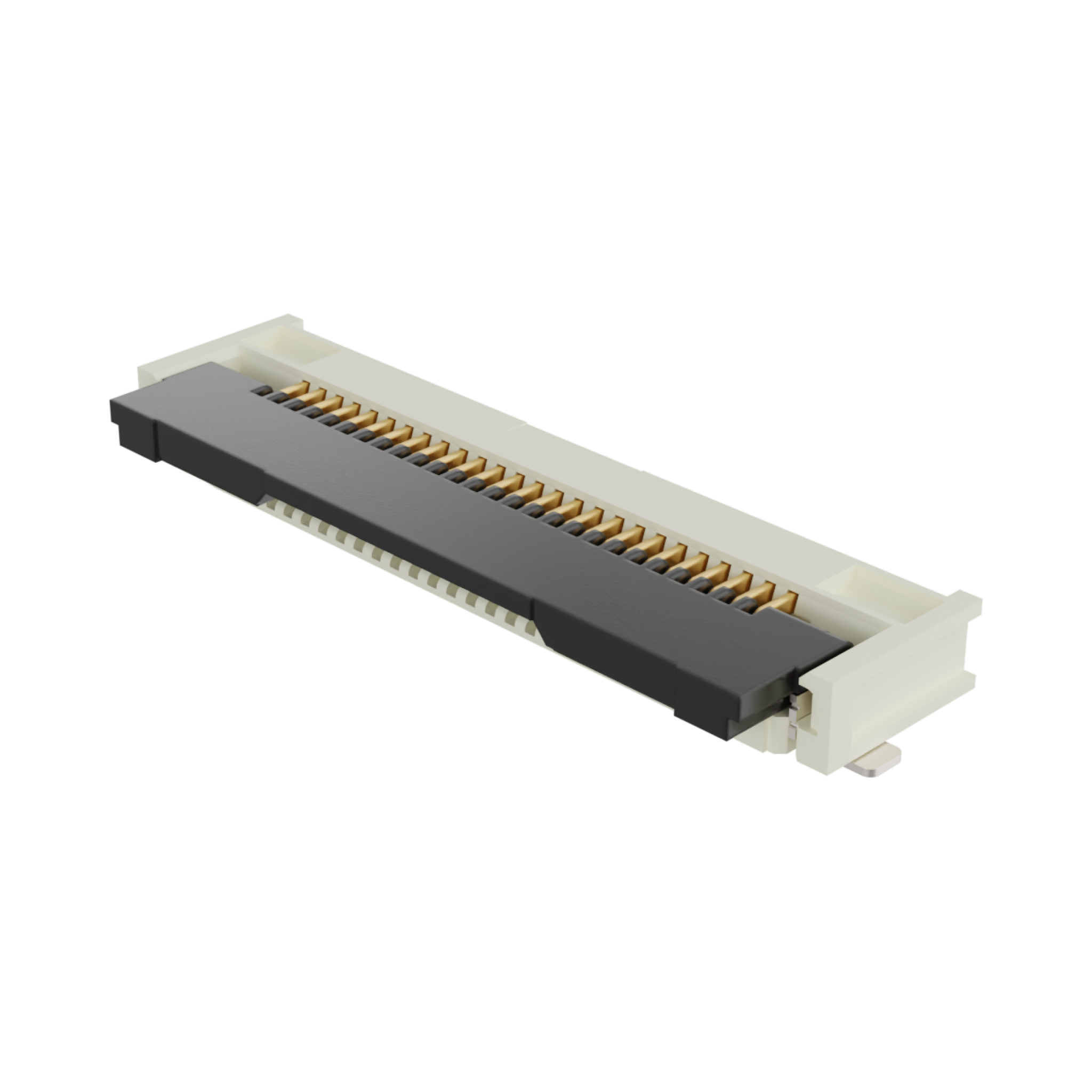

Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 26 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505110-2691 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.82
|
57,000
in stock
|
Buy Now |
|
Farnell
from US$0.87
|
52,000
in stock
|
Buy Now |
|
TME
from US$0.58
|
48,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.05
|
8,714
in stock
|
Buy Now |
|
element14
from US$0.63
|
8,714
in stock
|
Buy Now |
|
RS
from US$0.76
|
0
in stock
|
Buy Now |
|
Sager
from US$0.83
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.81
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.76
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.64
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 26 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 225.340/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 26 Rastermaß: 0.5 mm 5051102691 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 26POS, 1ROW, 0.5MM | Farnell |
| Connector: FFC/FPC | TME |
| Connector, Ffc/Fpc, 26Pos, 1Row, 0.5Mm | Newark Electronics |
| CONNECTOR, FFC/FPC, 26POS, 1ROW, 0.5MM | element14 |
| Molex 505110-2691 FPC Connector | RS |
| FFC & FPC Connectors .5MM EASY-ON 26P RA SMT | Sager |
| 0.50MM PITCH EASY-ON TYPE FFC/FPC CONNECTOR, 1.90MM | Heilind Americas |
| .5MM EASY-ON 26P RA SMT | TTI Asia |
