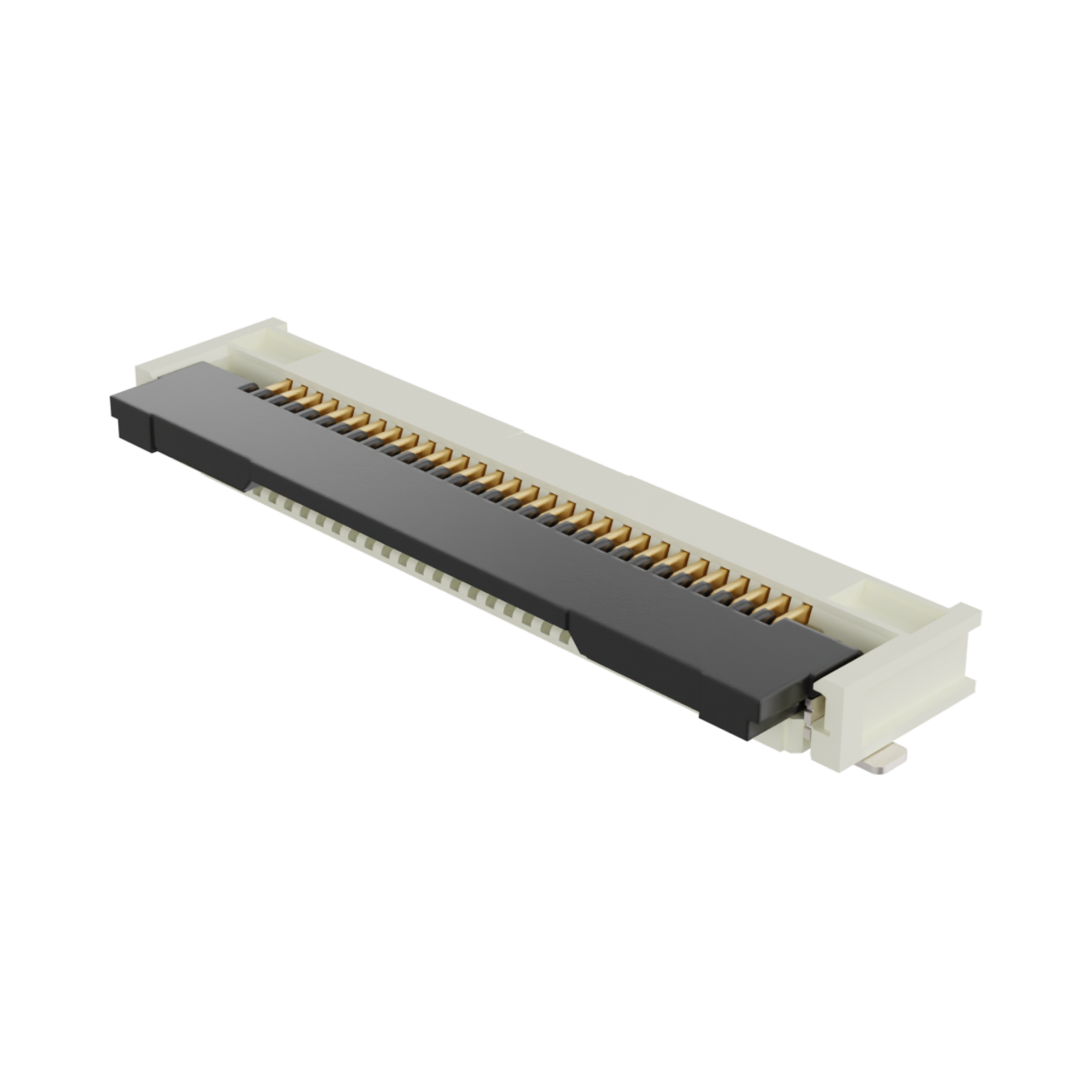

5051103091 Easy-On by Molex
Easy-On FFC/FPC Connector 0.50mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 30 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505110-3091 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.06
|
10,418
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
10,418
in stock
|
Buy Now |
|
Conrad
from US$1.17
|
9,000
in stock
|
Buy Now |
|
RS
from US$1.18
|
3,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.42
|
46
in stock
|
Buy Now |
|
TME
from US$1.01
|
0
in stock
|
Buy Now |
|
Compona
from US$0.94
|
0
in stock
|
Buy Now |
|
Avnet Asia
from US$1.03
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.94
|
0
in stock
|
Buy Now |
|
Sager
from US$0.93
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.86
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.79
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 30 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 254.100/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Pitch Termination Interface | 0.50mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, FFC/FPC, 30POS, 1ROW, 0.5MM | element14 |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 30 Rastermaß: 0.5 mm 5051103091 1 St. Tape on Full reel | Conrad |
| Molex 505110-3091 Connector | RS |
| 0.5 Fpc Zif Btm Cont Embt Pkg 30Ckt Rohs Compliant: Yes |Molex 505110-3091 | Newark Electronics |
| Connector: FFC/FPC | TME |
| MOLEX 505110-3091 Plug Square Easy-On FFC/FPC 30p SMT | Compona |
| FFC/FPC Connector Socket 30 Position 0.5 mm Solder Right Angle Surface Mount Emboss T/R | Avnet Asia |
| .50 MM FFC/FPC CONNECTOR 30CKT | TTI Europe |
| FFC & FPC Connectors .5MM EASY-ON 30P RA SMT | Sager |
| 0.5 FPC ZIF BTM CONT EMBT PKG 30CKT | Heilind Americas |
| .5MM EASY-ON 30P RA SMT | TTI Asia |
