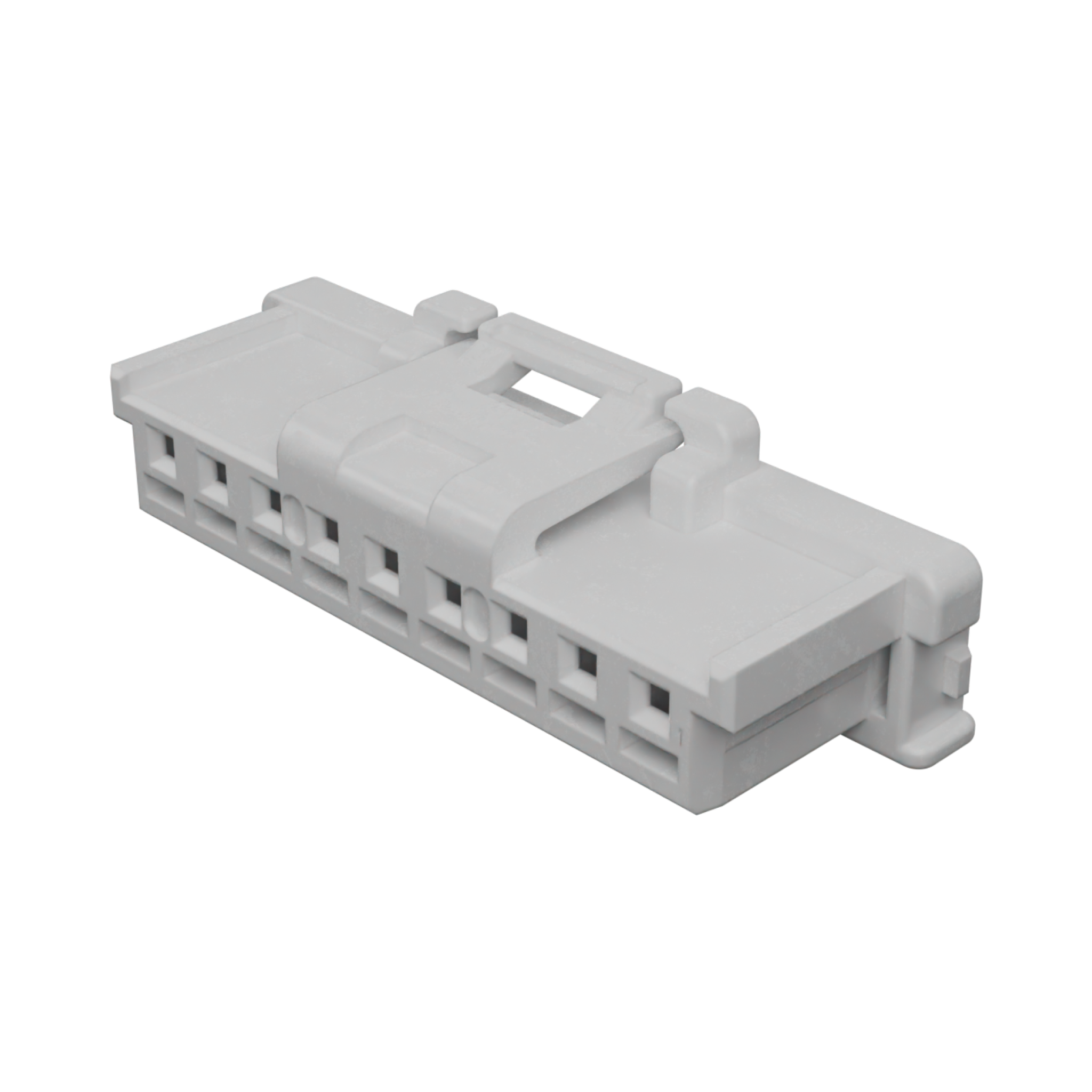

5051510901 DuraClik by Molex
DuraClik TPA Wire-to-Board Receptacle Housing, 9 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505151-0901 |
Where to Buy
Prices starting from US$0.06
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.08
|
23,750
in stock
|
Buy Now |
|
TME
from US$0.18
|
23,750
in stock
|
Buy Now |
|
Conrad
from US$0.20
|
23,750
in stock
|
Buy Now |
|
Farnell
from US$0.17
|
21,375
in stock
|
Buy Now |
|
Heilind Americas
from US$0.07
|
9,000
in stock
|
Buy Now |
|
element14
from US$0.17
|
0
in stock
|
Buy Now |
|
Sager
from US$0.06
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.13
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.09
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 9 |
| Color Resin | White |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyamide (PA) |
| Net Weight | 359.000/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Duraclik Tpa Wire-To-Board Receptacle Housing 9 |Molex 505151-0901 | Newark Electronics |
| Socket | TME |
| Molex Buchsengehäuse-Kabel 5051510901 1 St. | Conrad |
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| 2.0W/B REC HSG DURACLIK 9CKT WHITE | Heilind Americas |
| WTB HOUSING, RCPT, 9POS, 1ROW, 2MM | element14 |
| Headers & Wire Housings 2.00MM DURACLIK 09P HSG WTB | Sager |
| 2.00MM DURA CLIK 13P HSG WTB | TTI Asia |
