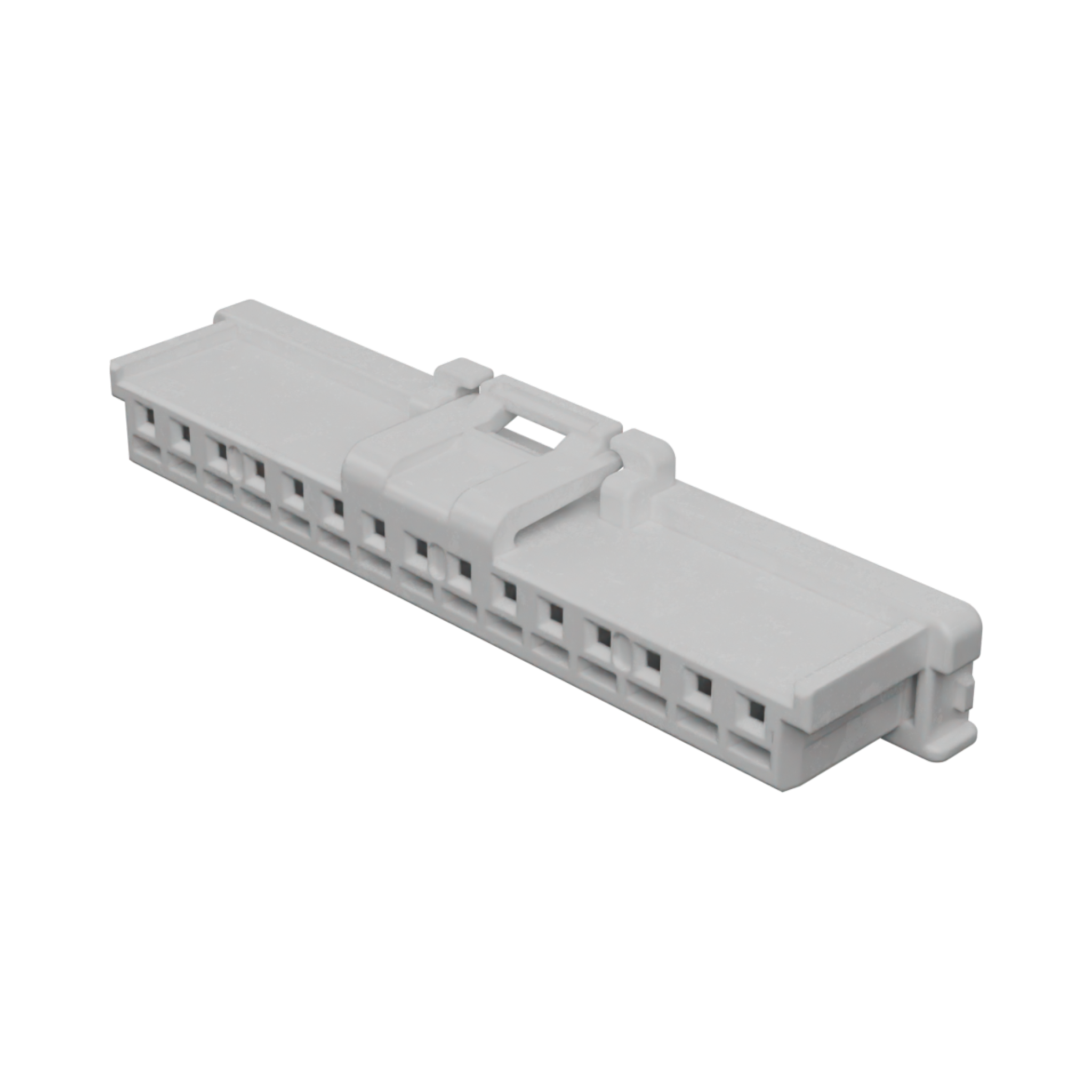

5051511501 DuraClik by Molex
DuraClik TPA Wire-to-Board Receptacle Housing, 15 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505151-1501 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.28
|
502
in stock
|
Buy Now |
|
element14
from US$0.23
|
502
in stock
|
Buy Now |
|
Farnell
from US$0.19
|
502
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
16,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.21
|
0
in stock
|
Buy Now |
|
Sager
from US$0.13
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.18
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | DuraClik |
|---|---|
| Application | Automotive, Signal, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 15 |
| Color Resin | White |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyamide (PA) |
| Net Weight | 542.000/mg |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Wtb Housing, Rcpt, 15Pos, 1Row, 2Mm Rohs Compliant: Yes |Molex 505151-1501 | Newark Electronics |
| WTB HOUSING, RCPT, 15POS, 1ROW, 2MM | element14 |
| 2.0W/B REC HSG DURACLIK 15CKT | TTI Europe |
| Headers & Wire Housings WTB 2-Way TPA Retainer 3 Crcts | Sager |
| 2.0W/B REC HSG DURACLIK 15CKT DURACLICK TPA REC | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5051511501?
Additional datasheets, footprints and schematics for 5051511501 are listed on our Part Details page. You can also find images and similar parts to 5051511501 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5051511501 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5051511501 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5051511501 fall under?
The 5051511501 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 5051511501 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5051511501 you can contact the distributor directly for product support, shipping queries etc.
Is the 5051511501 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5051511501 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Tongyida Electronic and TTI Europe have stock available or on a lead time for 5051511501.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5051511501 often in real-time on the comparison pages.
What if I can't find stock of 5051511501?
You can fill out our help required form which you can use to request a quote for 5051511501 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
