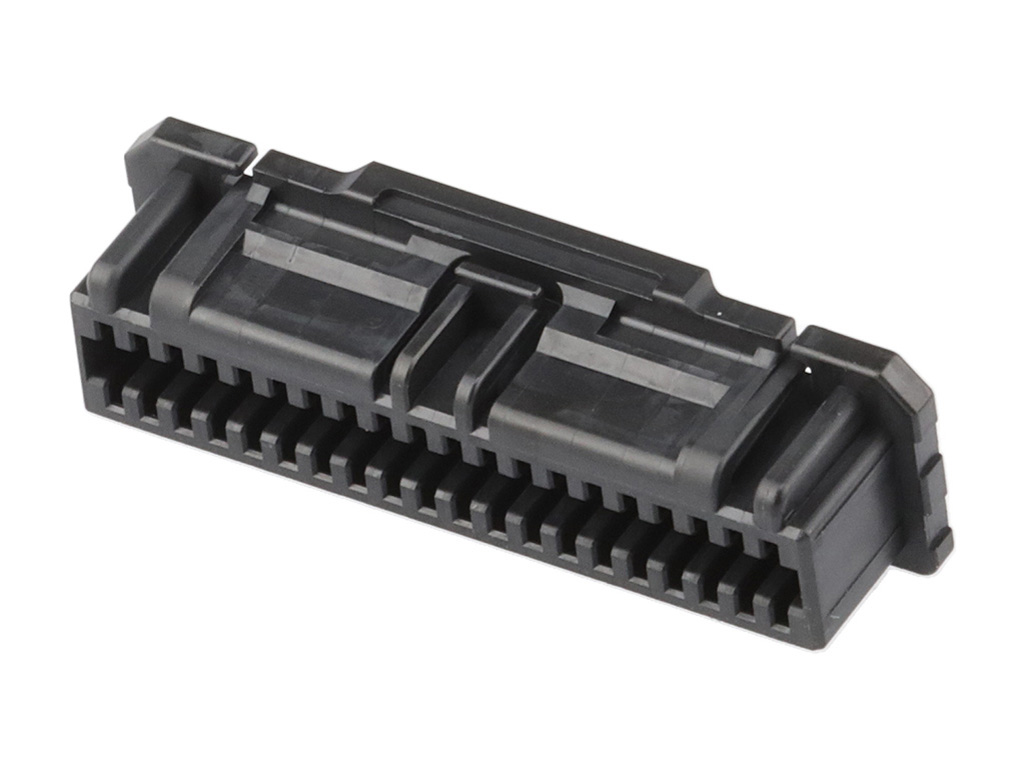

5054324001 Micro-Lock Plus by Molex
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Dual Row, Positive Lock, 40 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505432-4001 |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.48
|
493
in stock
|
Buy Now |
|
element14
from US$0.43
|
493
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
493
in stock
|
Buy Now |
|
RS
from US$0.53
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.42
|
0
in stock
|
Buy Now |
|
Sager
from US$0.26
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.31
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$0.28
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Lock Plus |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 40 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 751.059/mg |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Polarized To Mating Part | Yes |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 40Pos, 2Row, 1.25Mm | Newark Electronics |
| CONNECTOR, RCPT, 40POS, 2ROW, 1.25MM | element14 |
| Molex 505432-4001 PCB Header | RS |
| Molex Buchsengehäuse-Kabel 505432-4001 1 St. Bulk | Conrad |
| Headers & Wire Housings 1.25MM REC 02X20P W/LOCK BLK | Sager |
| 1.25 ROBUST W/B DUAL REC HSG 0P BLACK | Heilind Americas |
| 1.25MM REC 02X20P W/LOCK BLK | TTI Asia |
