5055721000 Micro-Lock Plus by Molex

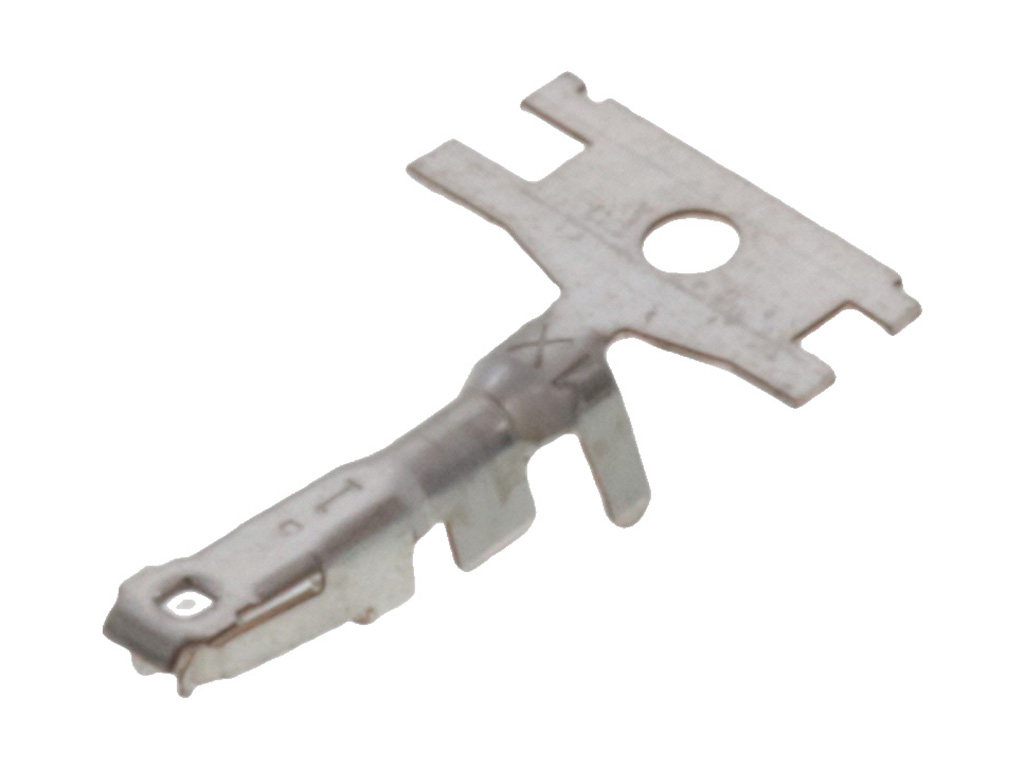

Micro-Lock Plus Female Crimp Terminal, 2.00mm Pitch, Matte Tin (Sn) Plating, 26-22 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505572-1000 |
Where to Buy
Prices starting from US$0.0231
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.0410
|
225,690
in stock
|
Buy Now |
|
Farnell
from US$0.0437
|
210,000
in stock
|
Buy Now |
|
TTI Asia
from US$0.0300
|
180,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0257
|
45,000
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0231
|
30,000
in stock
|
Buy Now |
|
RS
from US$0.05
|
12,700
in stock
|
Buy Now |
|
Tongyida Electronic
-
|
120,000
in stock
|
Buy Now |
|
Rutronik
from US$0.0288
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
0
in stock
|
Buy Now |
|
element14
from US$0.0374
|
0
in stock
|
Buy Now |
|
Sager
from US$0.0259
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0232
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
|
Walker Component Group
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Lock Plus |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Net Weight | 41.650/mg |
| Pitch Mating Interface | 2.00mm |
| Plating Min Mating | 0.700µm |
| Plating Min Termination | 0.700µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.50mm |
| Wire Size Awg | 22, 24, 26 |
| Wire Size Mm | AVSS 0.3, CAVUS 0.30, CIVUS 0.22 |
