5056051000 CP-3.3 by Molex

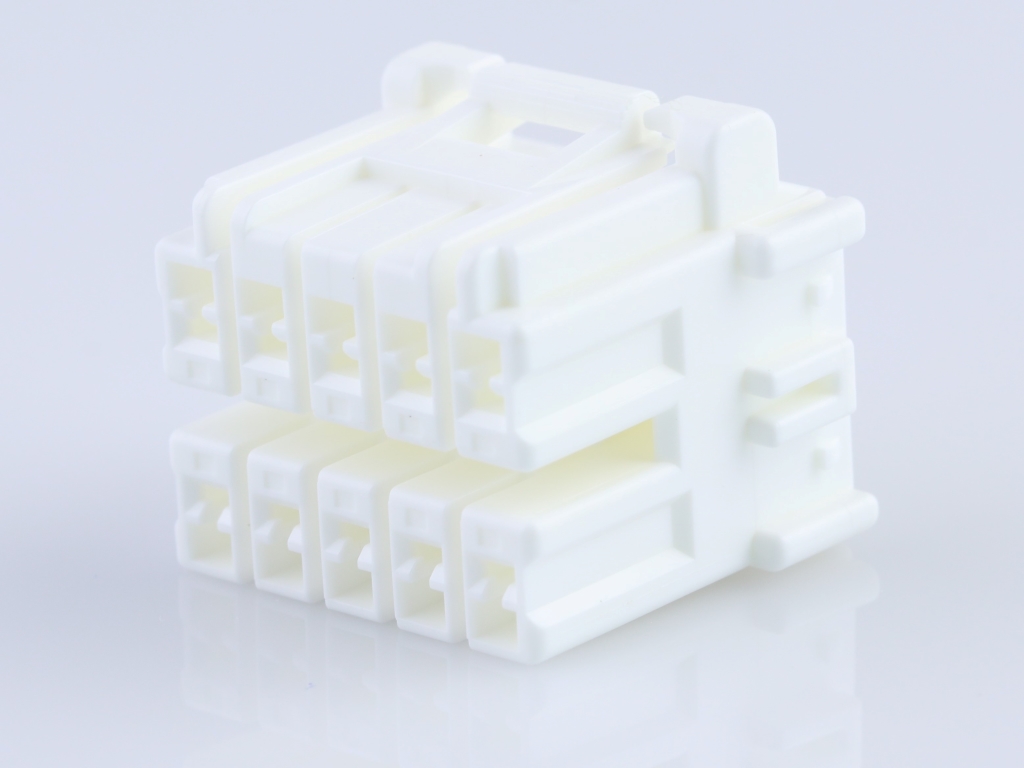

CP-3.3 Receptacle Housing, 3.30mm Pitch, Dual Row, Polarized, Positive Inertia Lock, 10 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 505605-1000 |
Where to Buy
Prices starting from US$0.0310
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.35
|
9,131
in stock
|
Buy Now |
|
Farnell
from US$0.32
|
9,131
in stock
|
Buy Now |
|
Newark Electronics
from US$0.0310
|
757
in stock
|
Buy Now |
|
Heilind Americas
from US$0.24
|
600
in stock
|
Buy Now |
|
Conrad
from US$0.64
|
0
in stock
|
Buy Now |
|
Sager
from US$0.28
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.28
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CP-3.3 |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 3.30mm |
| Pitch Termination Interface | 3.30mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 10POS | element14 |
| Connector Housing, Rcpt, 10Pos | Newark Electronics |
| CP 3.3 W/W CONN DIR W REC HSG NAT 10P | Heilind Americas |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 10 Rastermaß: 3.30 mm 5056051000 1 St. Bulk | Conrad |
| Headers & Wire Housings CP-3.3 WTW REC 02X05P NATURAL | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5056051000?
Additional datasheets, footprints and schematics for 5056051000 are listed on our Part Details page. You can also find images and similar parts to 5056051000 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5056051000 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5056051000 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5056051000 fall under?
The 5056051000 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 5056051000 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5056051000 you can contact the distributor directly for product support, shipping queries etc.
Is the 5056051000 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5056051000 have stock available?
Authorised distributors including element14, Farnell, Newark Electronics, Heilind Americas and Conrad have stock available or on a lead time for 5056051000.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5056051000 often in real-time on the comparison pages.
What if I can't find stock of 5056051000?
You can fill out our help required form which you can use to request a quote for 5056051000 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
