50579313 SL by Molex

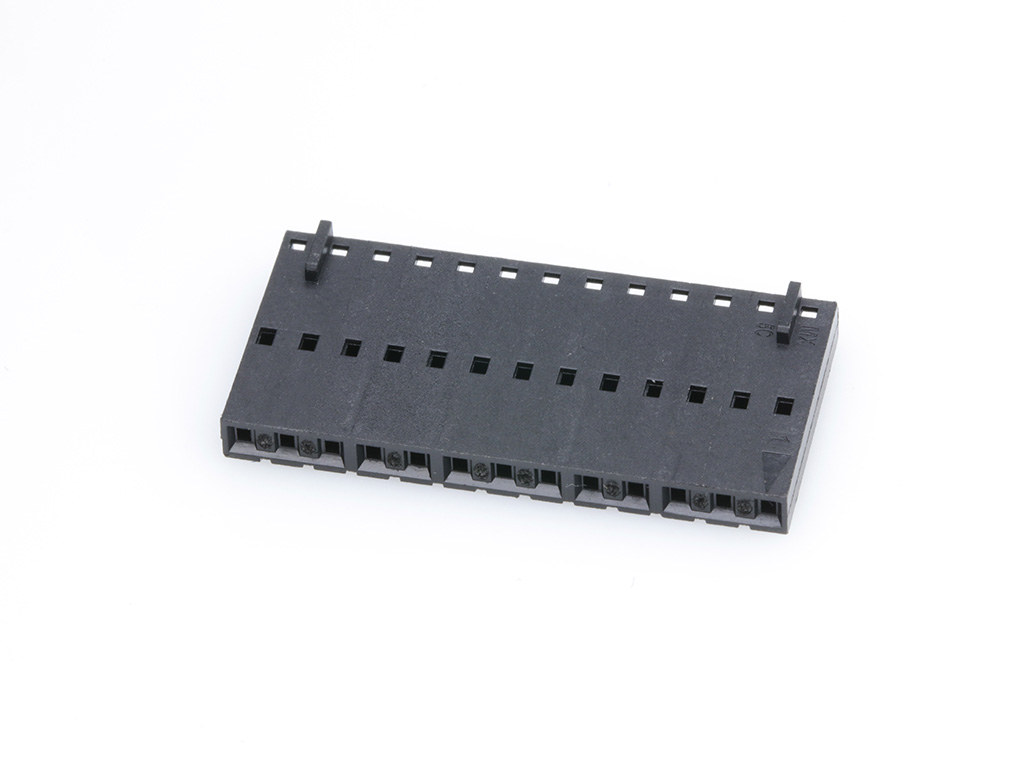

SL Crimp Housing, Single Row, Version D, Back Ribs, 13 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
50-57-9313,
0050579313, 70066-0117 |
Where to Buy
Prices starting from US$0.39
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.52
|
16,000
in stock
|
Buy Now |
|
TME
from US$0.60
|
16,000
in stock
|
Buy Now |
|
Farnell
from US$0.63
|
14,400
in stock
|
Buy Now |
|
Heilind Americas
from US$0.39
|
720
in stock
|
Buy Now |
|
RS
from US$1.09
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SL |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 13 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Resin | Polyester |
| Net Weight | 0.996/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Stackable | Yes |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 13Pos, 1Row, 2.54Mm | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| CONNECTOR HOUSING, RCPT, 13POS, 2.54MM | Farnell |
| SL CRP HSG D SR BACK RBS 13C T | Heilind Americas |
| Molex 50-57-9313 Housing | RS |
