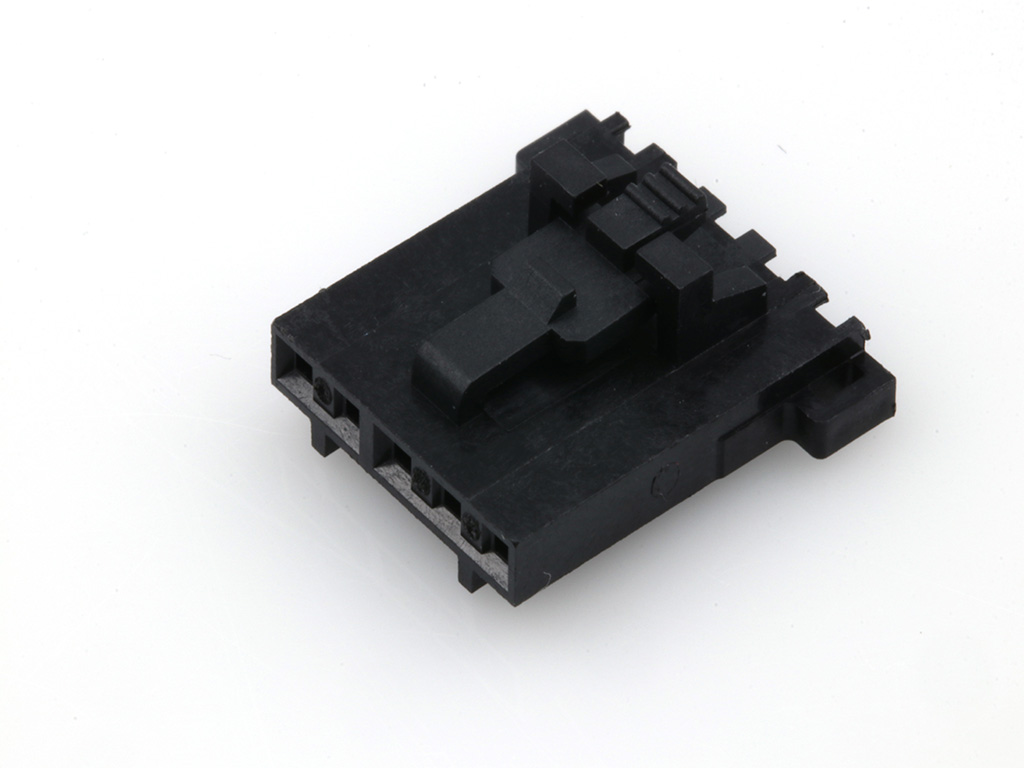

50579705 SL by Molex
SL Crimp Housing, Single Row, Version N, TPA with Positive Latch, 5 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
50-57-9705,
0050579705, 70066-0389 |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.38
|
56,873
in stock
|
Buy Now |
|
Heilind Americas
from US$0.26
|
6,642
in stock
|
Buy Now |
|
Newark Electronics
from US$0.34
|
6,587
in stock
|
Buy Now |
|
element14
from US$0.30
|
6,587
in stock
|
Buy Now |
|
RS Americas
from US$0.21
|
45
in stock
|
Buy Now |
|
FDH Electronics
-
|
6
in stock
|
Buy Now |
|
|
RS
from US$0.45
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.20
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.39
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.21
|
0
in stock
|
Buy Now |
|
Sager
from US$0.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.21
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.21
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SL |
|---|---|
| Application | Signal, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 5 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 0.443/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 5POS, 2.54MM | Farnell |
| SL CRP HSG N OPT SR 5CKT | Heilind Americas |
| Connector, Rcpt, 5Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 5POS, 1ROW, 2.54MM | element14 |
| SL SERIES 2.54MM PITCH 5 WAY 1 ROW FEMALE STRAIGHT PCB HOUSING 70066 | RS Americas |
| Molex 50-57-9705 PCB Housing | RS |
| Conn Housing F 5 POS 2.54mm Crimp ST Cable Mount Bag | Avnet America |
| Molex 50579705 Crimp Housing 5 Pins 2.54mm Black Positive Latch | Rapid Electronics |
| SL 2.54MM CRMP HSG 1X05 VERS N | TTI Americas |
| Headers & Wire Housings SL 2.54MM CRMP HSG 1X05 VERS N | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 50579705?
Additional datasheets, footprints and schematics for 50579705 are listed on our Part Details page. You can also find images and similar parts to 50579705 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 50579705 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 50579705 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 50579705 fall under?
The 50579705 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 50579705 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 50579705 you can contact the distributor directly for product support, shipping queries etc.
Is the 50579705 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 50579705 have stock available?
Authorised distributors including Farnell, Heilind Americas, Newark Electronics, element14 and RS Americas have stock available or on a lead time for 50579705.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 50579705 often in real-time on the comparison pages.
What if I can't find stock of 50579705?
You can fill out our help required form which you can use to request a quote for 50579705 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
