505978000 CP-6.5 by Molex

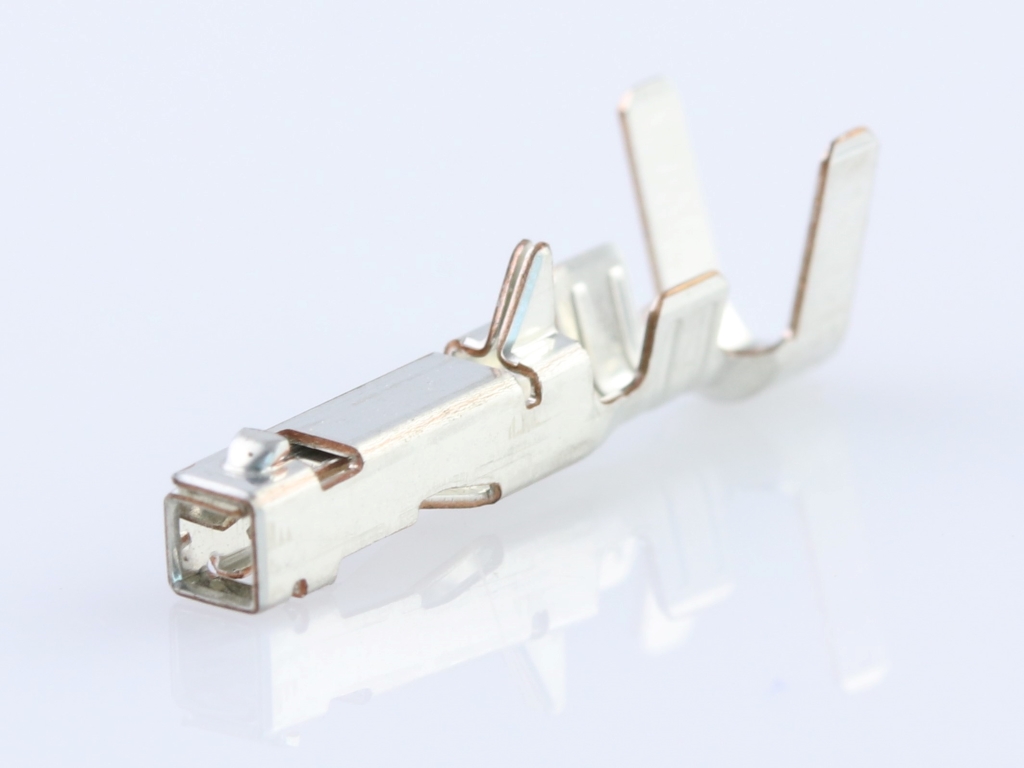

CP-6.5 Wire-to-Board Crimp Terminal, Female, 22-16 AWG, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
50597-8000,
0505978000 |
Where to Buy
Prices starting from US$0.0423
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.0423
|
533,250
in stock
|
Buy Now |
|
Conrad
from US$0.07
|
273,000
in stock
|
Buy Now |
|
Farnell
from US$0.08
|
249,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.06
|
120,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.08
|
27,000
in stock
|
Buy Now |
|
element14
from US$0.07
|
27,000
in stock
|
Buy Now |
|
RS
from US$0.11
|
23,400
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.12
|
21,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
21,000
in stock
|
Buy Now |
|
TME
from US$0.07
|
0
in stock
|
Buy Now |
|
Compona
from US$0.06
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.06
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | CP-6.5 |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 2.00-3.30mm |
| Wire Size Awg | 16, 18, 20, 22 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FEM CRMP TERM AWG1622 CP 6.5 | Heilind Americas |
| 6.5 WtB 505978000 Molex Inhalt: 1 St. | Conrad |
| PIN AND SOCKET CONTACTS | Farnell |
| 3.96MM CRIMP TERMINAL | TTI Europe |
| Contact, Socket, 16Awg, Crimp | Newark Electronics |
| CONTACT, SOCKET, 16AWG, CRIMP | element14 |
| Molex 50597-8000 Crimp Terminal | RS |
| 3.96MM WTW 6.50MM WTB CRIMP FE | TTI Asia |
| Female | TME |
| MOLEX 50597-8000 CP-6.5 Crimp terminal female 3.96mm W-to-W and 6.50mm Pitch W-to-B, AWG16-22 | Compona |
| Crimp terminal AWG 16-22G REEL | Rutronik |
