50842150 MLX by Molex

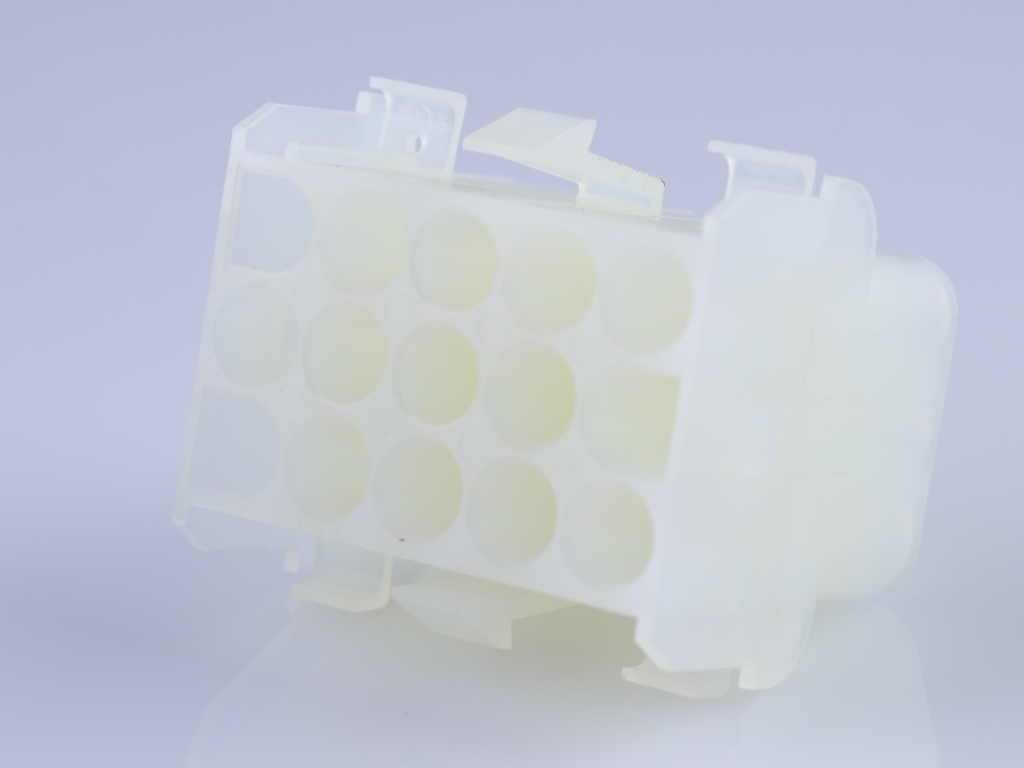

2.13mm Diameter MLX Pin and Socket Receptacle, 15 Circuits, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
50-84-2150,
0050842150, 42022-15A |
Where to Buy
Prices starting from US$0.16
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.88
|
1,631
in stock
|
Buy Now |
|
Waytek
from US$0.98
|
542
in stock
|
Buy Now |
|
element14
from US$1.26
|
20
in stock
|
Buy Now |
|
RS
from US$1.52
|
5
in stock
|
Buy Now |
|
Newark Electronics
from US$0.16
|
1
in stock
|
Buy Now |
|
Offical Electronic
-
|
233
in stock
|
Buy Now |
|
Conrad
from US$1.38
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.46
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.38
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.74
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | MLX |
|---|---|
| Application | Power, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Detail | 15 |
| Circuits Maximum | 15 |
| Color Resin | Natural |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 10.481/g |
| Number Of Rows | 3 |
| Panel Mount | Yes |
| Pitch Mating Interface | 6.35mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 15CKT CAPS HOUSING 4202215A | Heilind Americas |
| CONNECTOR HOUSING, RCPT, 15POS | element14 |
| Molex 5084-2150 Connector Housing | RS |
| Connector Housing, Rcpt, 15Pos Rohs Compliant: Yes |Molex 50-84-2150 | Newark Electronics |
| Molex Buchsengehäuse-Kabel 50842150 1 St. | Conrad |
| MLX .084 REC 03X05P 94V-2 | TTI Asia |
