511101451 Milli-Grid by Molex

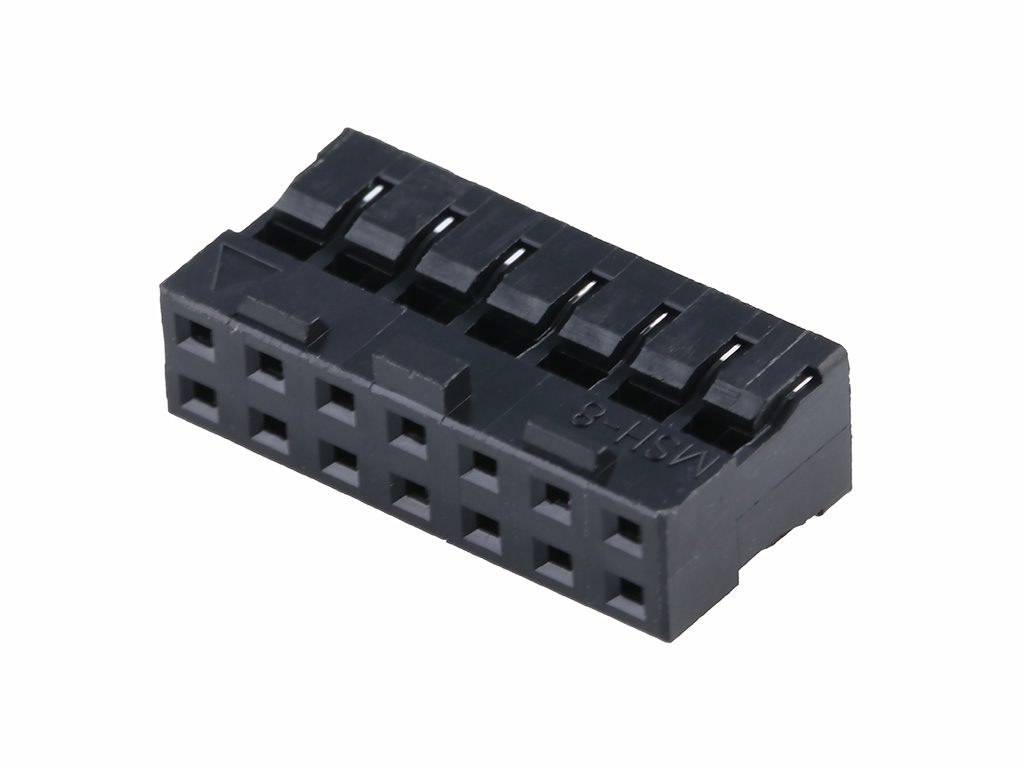

2.00mm Pitch, Milli-Grid Receptacle Housing, 14 Circuits, Center Polarization, Side Latches, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51110-1451,
0511101451 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.52
|
62,320
in stock
|
Buy Now |
|
Farnell
from US$0.37
|
48,243
in stock
|
Buy Now |
|
TTI Europe
from US$0.31
|
31,900
in stock
|
Buy Now |
|
Heilind Americas
from US$0.16
|
28,491
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.19
|
22,533
in stock
|
Buy Now |
|
element14
from US$0.37
|
2,011
in stock
|
Buy Now |
|
Newark Electronics
from US$0.28
|
765
in stock
|
Buy Now |
|
TME
from US$0.43
|
482
in stock
|
Buy Now |
|
RS
from US$0.46
|
122
in stock
|
Buy Now |
|
FDH Electronics
from US$0.46
|
21
in stock
|
Buy Now |
|
Offical Electronic
-
|
2,442
in stock
|
Buy Now |
|
Rutronik
from US$0.35
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.19
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.34
|
0
in stock
|
Buy Now |
|
Compona
from US$0.36
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.32
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.13
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Milli-Grid |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 14 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Resin | Polyester |
| Net Weight | 0.291/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 14 Rastermaß: 2.00 mm 511101451 1 St. Bulk | Conrad |
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| 2.00 MM MILLI-GRID HOUSING | TTI Europe |
| 2MM MGRID WTB REC CRP HSG PBT BLK 14CKT | Heilind Americas |
| 2.00MM HSG 02X07P W/KEY & RAMP | TTI Americas |
| CONNECTOR HOUSING, RCPT, 14POS, 2MM | element14 |
| Wtb Housing, Rcpt, 14Pos, 2Row, 2Mm | Newark Electronics |
| Connector: wire-wire/PCB | TME |
| Molex 51110-1451 Connector Housing | RS |
| Other Products | FDH Electronics |
| 14P CRIMP HOUS MILLIGRID 2.00mm | Rutronik |
| Connector Housing, Milli-Grid 51110, Receptacle, 14 Ways, 2 mm, 50394, 87396 Crimp Terminals | Avnet America |
| MILLI-GRID SERIES 2MM PITCH 14 WAY 2 ROW FEMALE STRAIGHT PCB HOUSING 51110 | RS Americas |
| MOLEX 51110-1451 Female housing 14p | Compona |
| Receptacle Socket Housing 14P | Carlton-Bates |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 511101451?
Additional datasheets, footprints and schematics for 511101451 are listed on our Part Details page. You can also find images and similar parts to 511101451 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 511101451 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 511101451 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 511101451 fall under?
The 511101451 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 511101451 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 511101451 you can contact the distributor directly for product support, shipping queries etc.
Is the 511101451 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 511101451 have stock available?
Authorised distributors including Conrad, Farnell, TTI Europe, Heilind Americas and TTI Americas have stock available or on a lead time for 511101451.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 511101451 often in real-time on the comparison pages.
What if I can't find stock of 511101451?
You can fill out our help required form which you can use to request a quote for 511101451 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
