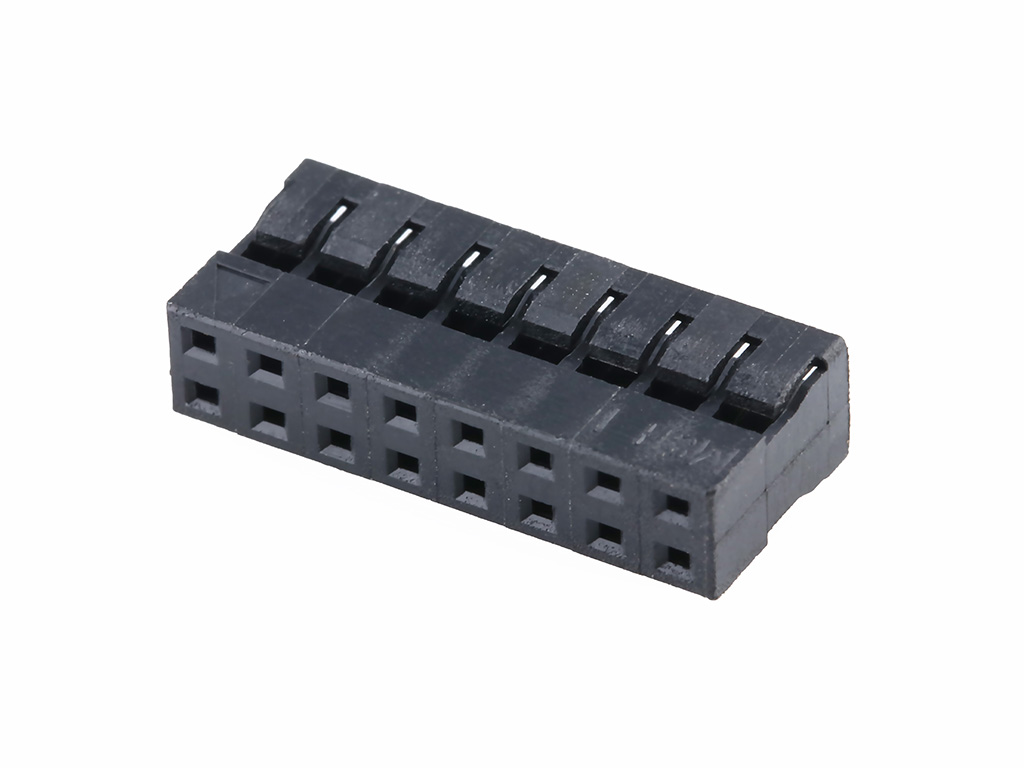

511101650 Milli-Grid by Molex
2.00mm Pitch, Milli-Grid Receptacle Housing, 16 Circuits, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51110-1650,
0511101650 |
Where to Buy
Prices starting from US$0.22
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.57
|
21,088
in stock
|
Buy Now |
|
Newark Electronics
from US$1.29
|
3,579
in stock
|
Buy Now |
|
element14
from US$0.60
|
3,529
in stock
|
Buy Now |
|
TME
from US$0.70
|
130
in stock
|
Buy Now |
|
RS
from US$0.64
|
7
in stock
|
Buy Now |
|
Avnet America
from US$0.22
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.25
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.06
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.47
|
0
in stock
|
Buy Now |
|
EME
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Milli-Grid |
|---|---|
| Application | Signal, Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 16 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Resin | Polyester |
| Net Weight | 0.338/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Polarized To Mating Part | No |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR HOUSING, RCPT, 16POS, 2MM | Farnell |
| Wire-To-Board Connector, Milli-Grid 51110 Series, Crimp, Plug, 16, 2 Mm Rohs Compliant: Yes |Molex 51110-1650 | Newark Electronics |
| CONNECTOR, RCPT, 16POS, 2ROW, 2MM | element14 |
| Connector: wire-wire/PCB | TME |
| Molex 51110-1650 Connector Housing | RS |
| Conn Housing RCP 16 POS 2mm Crimp ST Cable Mount Bag | Avnet America |
| Molex 511101650 Milli-grid Receptacle Housing 16 Pins 2mm Spacing | Rapid Electronics |
| MILLI-GRID SERIES 2MM PITCH 16 WAY 2 ROW FEMALE STRAIGHT PCB HOUSING 51110 | RS Americas |
| 2MM MGRID WTB REC CRP HSG PBT BLK 16CKT | Heilind Europe |
