512810594 Easy-On by Molex

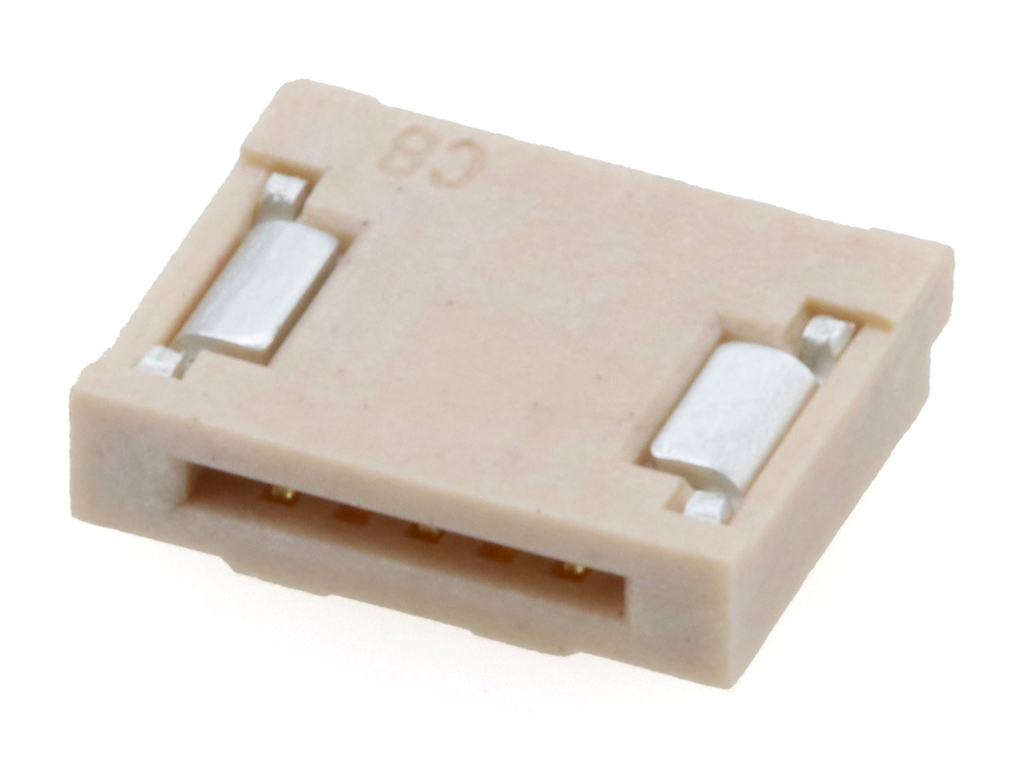

0.50mm Pitch Easy-On FFC/FPC Connector, Surface Mount, Right-Angle, Non-ZIF, Dual Contact Style, 1.20mm Mated Height, 5 Circuits, Gold (Au) Plating
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51281-0594,
0512810594 |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Non-ZIF |
| Circuits Loaded | 5 |
| Color Resin | Natural |
| Contact Position | Dual |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.20mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 47.131/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.102µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -20° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 05P FFC/FPC Non-ZIF SMT 90° 0.50mm | Rutronik |
| Connector: FFC/FPC | TME |
| CONNECTOR, FFC/FPC, 5POS, 1ROW, 0.5MM | element14 |
| Connector, Ffc/Fpc, 5Pos, 1Row, 0.5Mm | Newark Electronics |
| .5MM REC 05P RA SMT DUAL CONT | TTI Asia |
