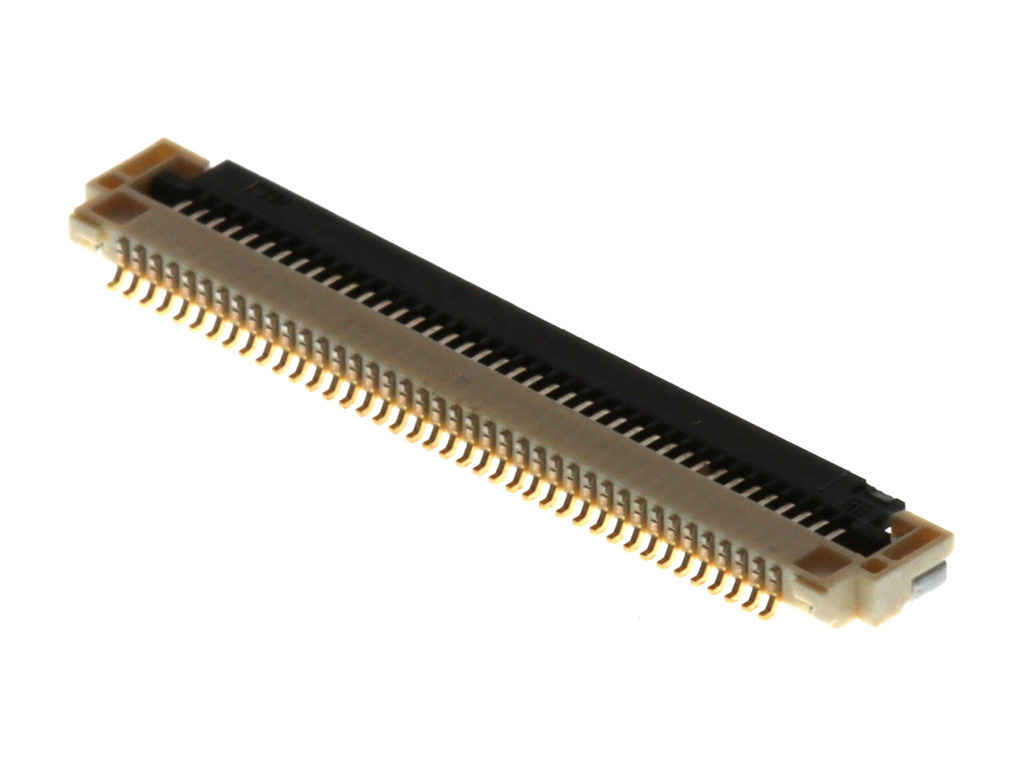

512964094 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, 1.30mm Height, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, 40 Circuits, Gold (Au) Contact Plating
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51296-4094,
0512964094 |
Where to Buy
Prices starting from US$0.92
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$3.24
|
9,000
in stock
|
Buy Now |
|
Avnet America
from US$2.13
|
9,000
in stock
|
Buy Now |
|
TME
from US$1.19
|
9,000
in stock
|
Buy Now |
|
Conrad
from US$3.08
|
9,000
in stock
|
Buy Now |
|
Farnell
from US$3.27
|
9,000
in stock
|
Buy Now |
|
TTI Europe
from US$1.38
|
3,000
in stock
|
Buy Now |
|
RS
from US$4.83
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.88
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$2.13
|
0
in stock
|
Buy Now |
|
Sager
from US$4.05
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.03
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.92
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.22
|
0
in stock
|
Buy Now |
|
EME
from US$1.06
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 40 |
| Color Resin | Beige, Black |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.30mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 193.131/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Flex Cable Connector, pcb Mount,40 Contacts, number Of Contact Rows:1,surface Mount Terminal, locking |Molex 51296-4094 | Newark Electronics |
| FFC / FPC Board Connector, ZIF, 0.5 mm, 40 Contacts, Receptacle, Easy-On 51296, Surface Mount | Avnet America |
| Connector: FFC/FPC | TME |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 40 Rastermaß: 0.5 mm 512964094 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 40POS, 1ROW, 0.5MM | Farnell |
| 0.50MM PITCH EASY-ON FFC/FPC | TTI Europe |
| Molex 51296-4094 FPC Connector | RS |
| 0.5 FPC ZIF 40CKT EMBSTP PKG | RS Americas |
| .5MM REC 40P RA SMT BOT | TTI Americas |
| FFC & FPC Connectors .5MM REC 40P RA SMT BOT | Sager |
| 40P FFC/FPC ZIF SMT 90° 0.50mm Au | Rutronik |
