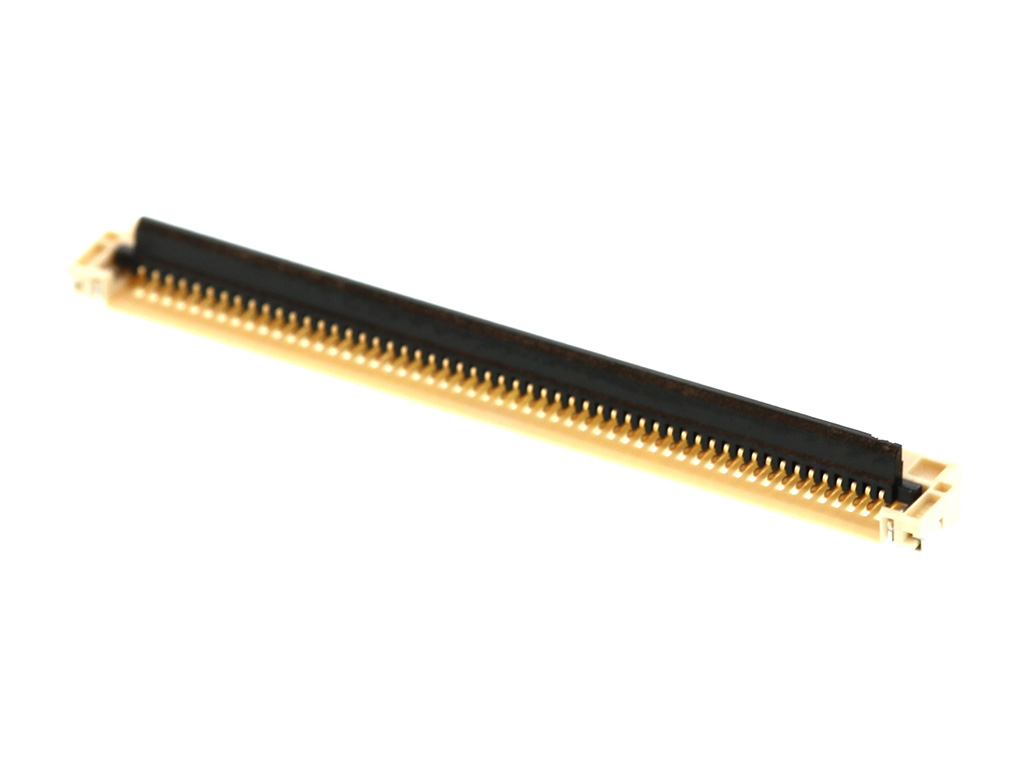

512965494 Easy-On by Molex
Easy-On FFC/FPC Connector, 0.50mm Pitch, 1.30mm Height, Right-Angle, Surface Mount, ZIF, Bottom Contact Style, 54 Circuits, Gold (Au) Contact Plating
| Status: | Not Recommended For New Design |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51296-5494,
0512965494 |
Where to Buy
Prices starting from US$0.86
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.38
|
41,664
in stock
|
Buy Now |
|
Farnell
from US$1.80
|
38,000
in stock
|
Buy Now |
|
element14
from US$1.97
|
8,332
in stock
|
Buy Now |
|
Newark Electronics
from US$1.86
|
3,448
in stock
|
Buy Now |
|
Rutronik
from US$1.69
|
0
in stock
|
Buy Now |
|
RS
from US$2.58
|
0
in stock
|
Buy Now |
|
TME
from US$1.53
|
0
in stock
|
Buy Now |
|
Compona
from US$1.33
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.37
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.67
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.30
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.86
|
0
in stock
|
Buy Now |
|
EME
from US$1.50
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 54 |
| Color Resin | Beige, Black |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.30mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 249.341/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 54 Rastermaß: 0.5 mm 512965494 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 54POS, 1ROW, 0.5MM | Farnell |
| CONNECTOR, FFC/FPC, 54POS, 1ROW, 0.5MM | element14 |
| Connector, Ffc/Fpc, 54Pos, 1Row, 0.5Mm | Newark Electronics |
| 54P FFC/FPC ZIF SMT 90° 0.50mm Au | Rutronik |
| Molex 51296-5494 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| MOLEX 51296-5494 Plug FFC 54p SMT | Compona |
| .50 MM FFC/FPC ZIF SMT 54CIRCU | TTI Europe |
| 0.5 FPC ZIF 54CKT EMBSTP PKG | Heilind Americas |
| .5MM REC 54P RA SMT BOT | TTI Asia |
