513380374 SlimStack by Molex

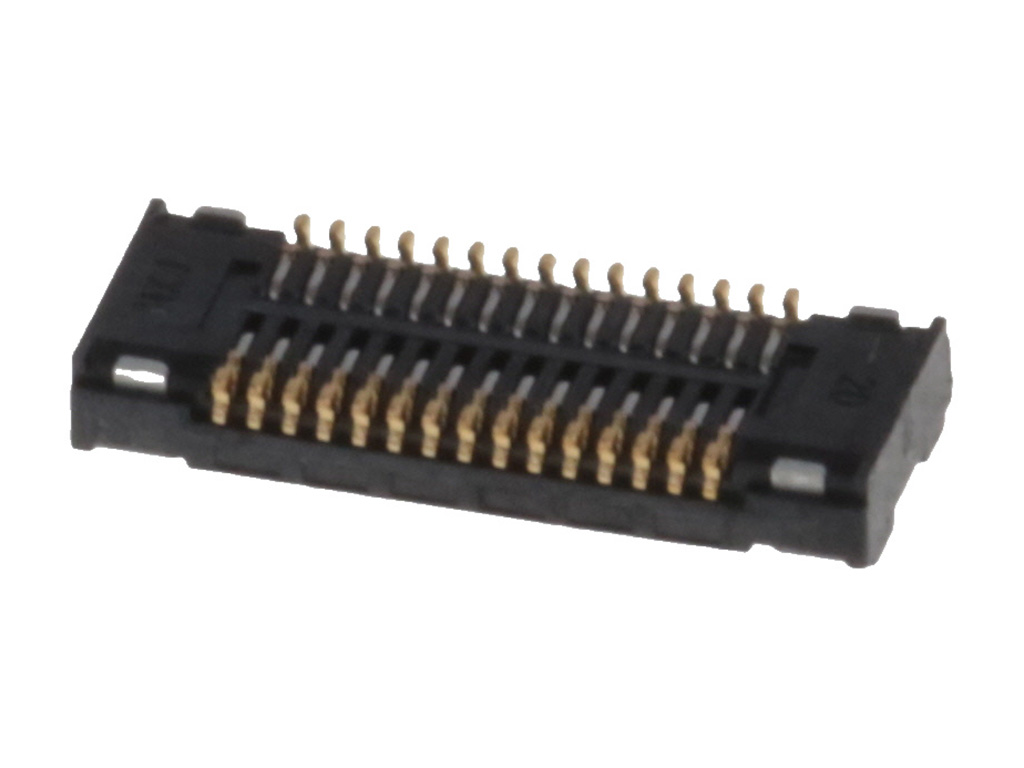

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 2.00mm Mated Height, 3.40mm Mated Width, 30 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51338-0374,
0513380374 |
Where to Buy
Prices starting from US$0.65
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.65
|
105,000
in stock
|
Buy Now |
|
Conrad
from US$1.62
|
105,000
in stock
|
Buy Now |
|
Farnell
from US$1.15
|
95,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.16
|
5,000
in stock
|
Buy Now |
|
TTI Americas
from US$1.91
|
178
in stock
|
Buy Now |
|
RS
from US$0.90
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.69
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.31
|
0
in stock
|
Buy Now |
|
Sager
from US$0.88
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.69
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.70
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm, 2.00mm |
| Mated Width | 3.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 58.891/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Plating Min Mating | 0.200µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: PCB to PCB | TME |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 30 Rastermaß: 0.4 mm 513380374 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, RCPT, 30POS, 2ROW, 0.4MM | Farnell |
| Connector, Stacking, Rcpt, 30Pos, 2Row | Newark Electronics |
| .4MM REC 30P VT SMT | TTI Americas |
| Molex 51338-0374 PCB Socket | RS |
| Conn Board to Board RCP 30 POS 0.4mm Solder ST SMD Embossed T/R | Avnet America |
| 0.4BTB RECHSGASSYJ-BENDTL 30CKTEMBSTPPKG | RS Americas |
| Board to Board & Mezzanine Connectors .4MM REC 30P VT SMT | Sager |
| 0.4BTB RECHSGASSYJ-BENDTL 30C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 513380374?
Additional datasheets, footprints and schematics for 513380374 are listed on our Part Details page. You can also find images and similar parts to 513380374 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 513380374 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 513380374 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 513380374 fall under?
The 513380374 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 513380374 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 513380374 you can contact the distributor directly for product support, shipping queries etc.
Is the 513380374 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 513380374 have stock available?
Authorised distributors including TME, Conrad, Farnell, Newark Electronics and TTI Americas have stock available or on a lead time for 513380374.
