513380474 SlimStack by Molex

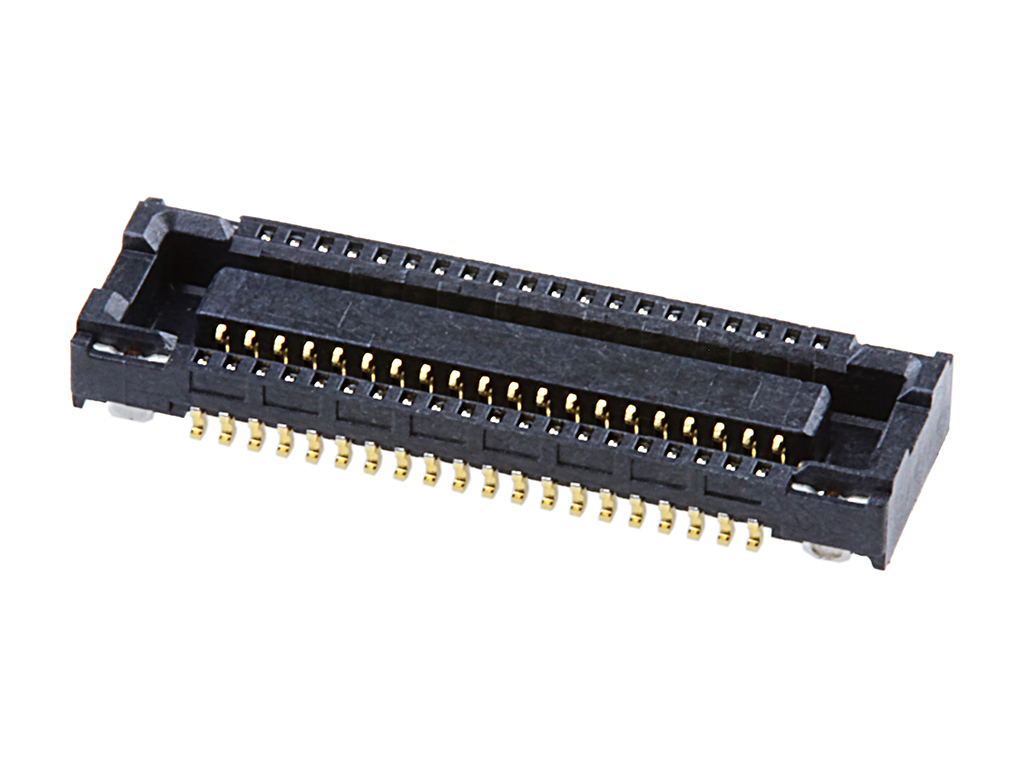

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 2.00mm Mated Height, 3.40mm Mated Width, 40 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51338-0474,
0513380474 |
Where to Buy
Prices starting from US$0.95
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$1.04
|
15,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.31
|
7,500
in stock
|
Buy Now |
|
element14
from US$1.18
|
7,500
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
7,500
in stock
|
Buy Now |
|
RS
from US$1.26
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.46
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.69
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.02
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.08
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.97
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.95
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 40 |
| Circuits Maximum | 40 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm, 2.00mm |
| Mated Width | 3.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 72.921/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Plating Min Mating | 0.200µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| .4MM REC 40P VT SMT | TTI Americas |
| Mezzanine Conn, Rcpt, 40Pos, 0.4Mm | Newark Electronics |
| MEZZANINE CONN, RCPT, 40POS, 2ROW, 0.4MM | element14 |
| Molex 51338-0474 PCB Socket | RS |
| 0.4BTB RECHSGASSYJ-BENDTL 40CKTEMBSTPPKG | RS Americas |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 40 Rastermaß: 0.4 mm 513380474 1 St. Tape on Full reel | Conrad |
| .40MM SLIMSTACK BTB RECEPTACLE | TTI Europe |
| 0.4BTB RECHSGASSYJ-BENDTL 40C TEMBSTPPKG | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 513380474?
Additional datasheets, footprints and schematics for 513380474 are listed on our Part Details page. You can also find images and similar parts to 513380474 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 513380474 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 513380474 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 513380474 fall under?
The 513380474 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 513380474 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 513380474 you can contact the distributor directly for product support, shipping queries etc.
Is the 513380474 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 513380474 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for 513380474.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 513380474 often in real-time on the comparison pages.
What if I can't find stock of 513380474?
You can fill out our help required form which you can use to request a quote for 513380474 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
