513382274 SlimStack by Molex

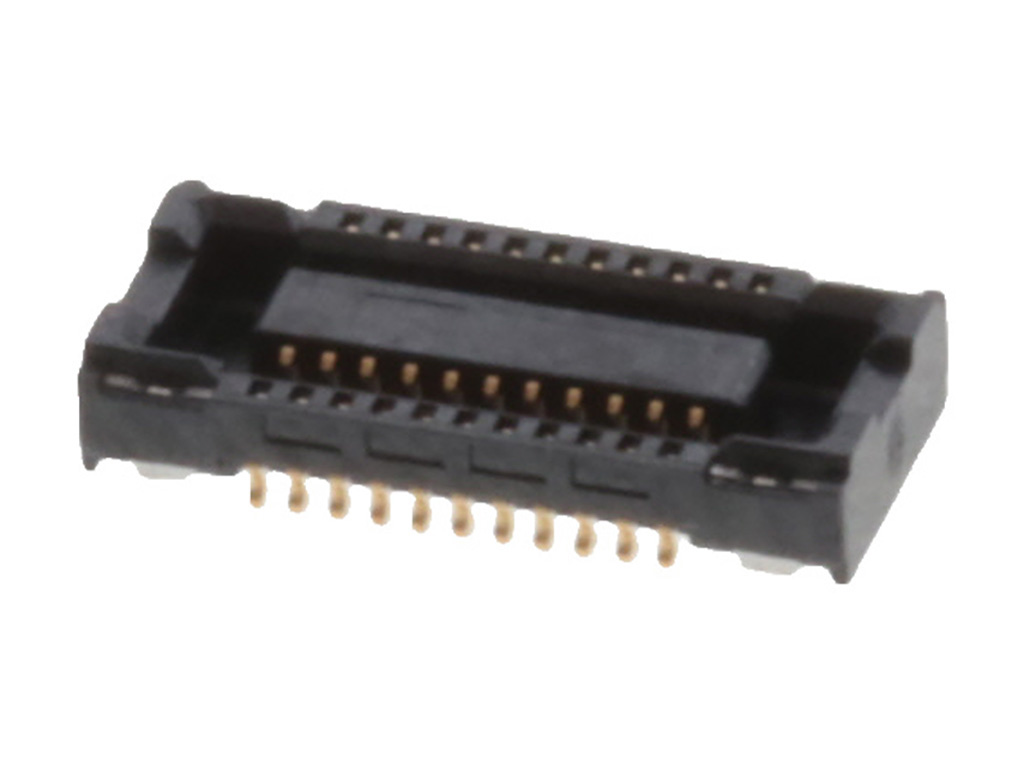

SlimStack Board-to-Board Receptacle, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 2.00mm Mated Height, 3.40mm Mated Width, 22 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51338-2274,
0513382274 |
Where to Buy
Prices starting from US$0.54
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.90
|
12,500
in stock
|
Buy Now |
|
Conrad
from US$1.57
|
12,500
in stock
|
Buy Now |
|
Farnell
from US$1.21
|
11,250
in stock
|
Buy Now |
|
RS
from US$0.83
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.58
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.91
|
0
in stock
|
Buy Now |
|
Sager
from US$0.80
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 22 |
| Circuits Maximum | 22 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm, 2.00mm |
| Mated Width | 3.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 47.857/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Plating Min Mating | 0.200µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connectors 22 Ckt Receptacle J-Leads&solder Tab Rohs Compliant: Yes |Molex 51338-2274 | Newark Electronics |
| Molex Buchsengehäuse-Platine Polzahl Gesamt 22 513382274 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, RCPT, 22POS, 0.4MM | Farnell |
| Molex 51338-2274 PCB Socket | RS |
| 0.4BTB RECHSGASSYJ-BENDTL 22CKTEMBSTPPKG | RS Americas |
| Board to Board & Mezzanine Connectors 0.4BtB RecHsgAssyJ-BendTl 22CktEmbsTpPkg | Sager |
