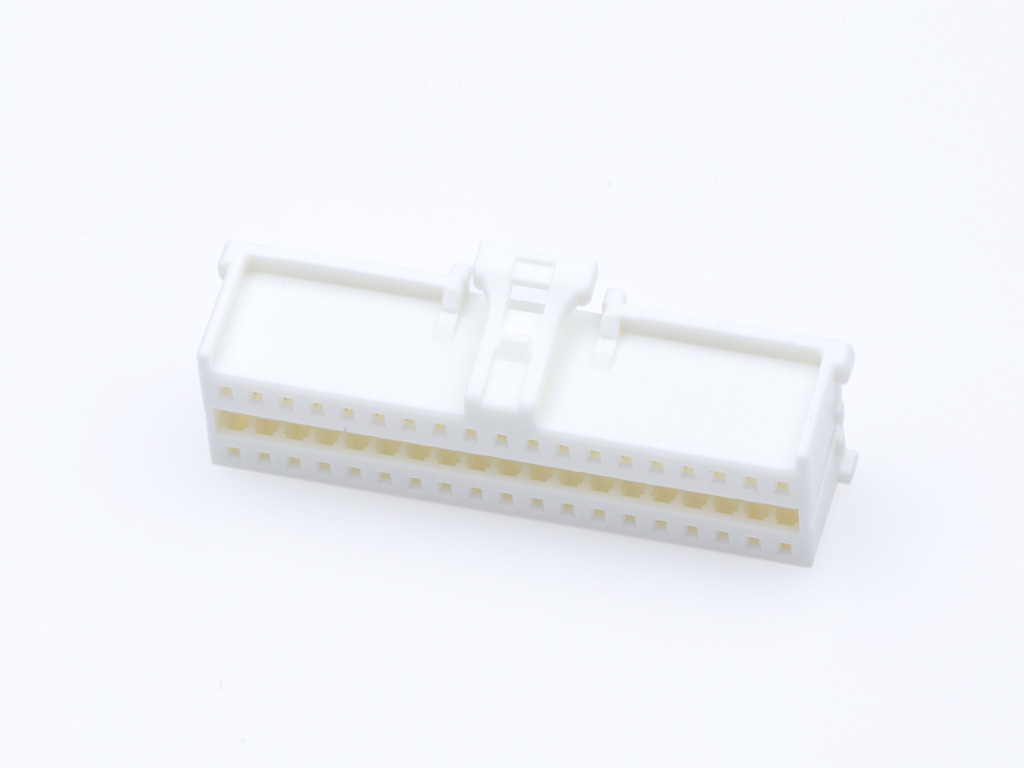

513533800 MicroClasp by Molex
MicroClasp Receptacle Housing, 2.00mm Pitch, Positive Lock, Dual Row, 38 Circuits, White
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
51353-3800,
0513533800 |
Specifications
| Product Name | MicroClasp |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 38 |
| Color Resin | White |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1651.000/mg |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 2.00mm |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.0 WTB DUAL CONN DIP REC HSG 38CKT | Heilind Americas |
| Header Connector, cable Mount, plug,38 Contacts, skt,0.079 Pitch, crimp Terminal, locking |Molex 51353-3800 | Newark Electronics |
